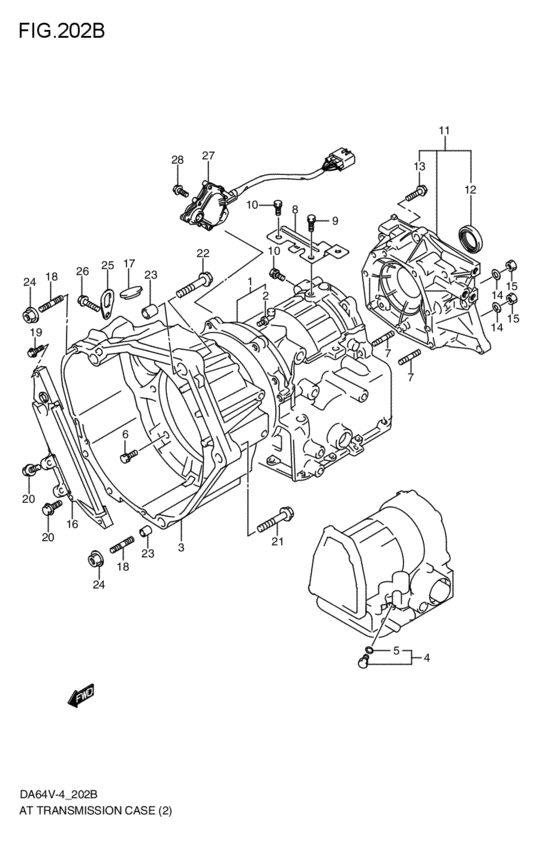

at - transmission case (3AT:4WD; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- VC
- number of the gears
- 3AT
- body
- DA64V
- abs
- ABS
- wheel
- STEEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24710-67HT2-000 CASE SET,T/M3AT:4WD; 2008-01-01~ |
24710-67HT2-000 |
US $827.20 |
||
|
2
|
2
24717-83C00-000 PLUG,BREATHER3AT:4WD; 2008-01-01~ |
24717-83C00-000 |
US $8.48 |
||
|
3
|
3
24721-68H30-000 HOUSING,T/C3AT:4WD; 2008-01-01~ |
24721-68H30-000 |
US $464.64 |
||
|
4
|
4
24820-62B00-000 PLUG,BOOSTER3AT:4WD; 2008-01-01~ |
24820-62B00-000 |
US $3.53 |
||
|
5
|
5
24755-78130-000 O-RING3AT:4WD; 2008-01-01~ |
24755-78130-000 |
US $0.92 |
||
|
6
|
6
24883-85500-000 BOLT,HOUSING3AT:4WD; 2008-01-01~ |
24883-85500-000 |
US $2.50 |
||
|
7
|
7
24889-85500-000 BOLT,T/M CASE STUD3AT:4WD; 2008-01-01~ |
24889-85500-000 |
US $2.39 |
||
|
8
|
8
26150-68H10-000 BRACKET,CONN CLAMP3AT:4WD; 2008-01-01~ |
26150-68H10-000 |
US $9.02 |
||
|
9
|
9
26599-78A10-000 BOLT,CONNECTOR CLAMP BRKT3AT:4WD; 2008-01-01~ |
26599-78A10-000 |
US $2.02 |
||
|
10
|
10
26599-85500-000 BOLT,SOLENOID3AT:4WD; 2008-01-01~ |
26599-85500-000 |
US $1.77 |
||
|
11
|
11
24730-68HT0-000
ハウジングセット,アダプタ
3AT:4WD; 2008-01-01~ |
24730-68HT0-000 |
— | ||
| replacement | |||||
|
11
|
11
24730-68HT1-000
New Genuine Part
3AT:4WD; 2008-01-01~ |
24730-68HT1-000 |
— | ||
|
12
|
12
09282-35002-000 SEAL,OIL(35X55X9)3AT:4WD; 2008-01-01~ |
09282-35002-000 |
US $10.88 |
||
|
13
|
13
24775-81A10-000 BOLT,EXTENSION CASE3AT:4WD; 2008-01-01~ |
24775-81A10-000 |
US $2.24 |
||
|
14
|
14
25952-68C00-000 WASHER,EXTENSION CASE3AT:4WD; 2008-01-01~ |
25952-68C00-000 |
US $1.51 |
||
|
15
|
15
08310-0008A-000 NUTNut, bead stopper 3AT:4WD; 2008-01-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
16
|
16
24790-67H11-000 STIFFENER,ENG&T/M3AT:4WD; 2008-01-01~ |
24790-67H11-000 |
US $55.94 |
||
|
17
|
17
09250-30003-000 CAP(OD:36)3AT:4WD; 2008-01-01~ |
09250-30003-000 |
from US $2.08 |
||
|
18
|
18
01421-1045A-000 BOLT,STUD3AT:4WD; 2008-01-01~ |
01421-1045A-000 |
US $16.20 |
||
|
19
|
19
01550-0630A-000 BOLT3AT:4WD; 2008-01-01~ |
01550-0630A-000 |
from US $0.96 |
||
|
20
|
20
01550-0830A-000 BOLTBolt, mount oil seal cover 3AT:4WD; 2008-01-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
21
|
21
01550-1050A-000 BOLTBolt, exhaust tube 3AT:4WD; 2008-01-01~ |
01550-1050A-000 |
from US $1.28 |
||
|
22
|
22
01550-1055A-000 BOLT3AT:4WD; 2008-01-01~ |
01550-1055A-000 |
from US $5.88 |
||
|
23
|
23
04211-13149-000 PIN3AT:4WD; 2008-01-01~ |
04211-13149-000 |
from US $1.28 |
||
|
24
|
24
08316-1010A-000 NUTNut, kick starter 3AT:4WD; 2008-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
25
|
25
11851-72B21-000 HOOK,ENGINE3AT:4WD; 2008-01-01~ |
11851-72B21-000 |
US $2.80 |
||
|
26
|
26
28229-78A10-000 Bolt3AT:4WD; 2008-01-01~ |
28229-78A10-000 |
US $1.51 |
||
|
27
|
27
37720-78A01-000
SWITCH ASSY,SHIFT
3AT:4WD; 2008-01-01~ |
37720-78A01-000 |
— | ||
| replacement | |||||
|
27
|
27
37720-78A02-000 Switch Assy,Shift3AT:4WD; 2008-01-01~ |
37720-78A02-000 |
US $171.76 |
||
|
28
|
28
01580-0840A-000 Bolt3AT:4WD; 2008-01-01~ |
01580-0840A-000 |
from US $3.33 |
||
