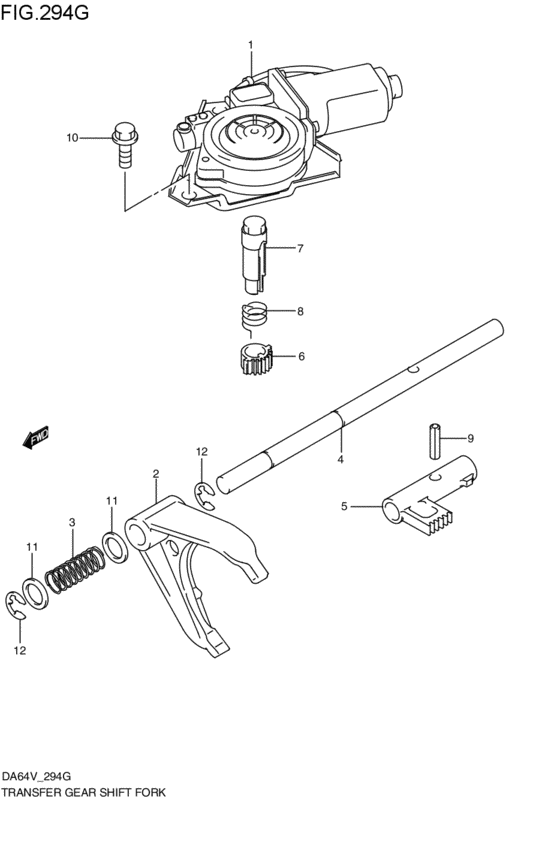

transfer gearlever fork (4WD:4V; 2005-08-01~2005-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- VC
- number of the gears
- 3AT
- body
- DA64V
- abs
- ABS
- wheel
- STEEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29310-79A00-000
MOTOR ASSY,T/F SHIFT
4WD:4V; 2005-08-01~2005-12-01 |
29310-79A00-000 |
— | ||
|
2
|
2
29311-79A40-000 FORK,FRONT DRIVE SHIFT4WD:4V; 2005-08-01~2005-12-01 |
29311-79A40-000 |
US $38.64 |
||
|
3
|
3
29316-79A01-000 SPRING,FRONT DRIVE SHIFT FORK4WD:4V; 2005-08-01~2005-12-01 |
29316-79A01-000 |
US $3.02 |
||
|
4
|
4
29331-79A30-000 SHAFT,FRONT DRIVE SHIFT4WD:4V; 2005-08-01~2005-12-01 |
29331-79A30-000 |
US $24.29 |
||
|
5
|
5
29721-79A00-000 YOKE,T/F GEAR SHIFT4WD:4V; 2005-08-01~2005-12-01 |
29721-79A00-000 |
US $42.69 |
||
|
6
|
6
29731-79A00-000 GEAR,T/F GR SHIFT PINION4WD:4V; 2005-08-01~2005-12-01 |
29731-79A00-000 |
US $3.64 |
||
|
7
|
7
29741-79A01-000 SHAFT,T/F GEAR SHF PINION4WD:4V; 2005-08-01~2005-12-01 |
29741-79A01-000 |
US $14.32 |
||
|
8
|
8
29761-79A00-000 SPRING,T/F GEAR SHIFT4WD:4V; 2005-08-01~2005-12-01 |
29761-79A00-000 |
US $2.83 |
||
|
9
|
9
09205-05012-000 PIN,SPRING(5X25)4WD:4V; 2005-08-01~2005-12-01 |
09205-05012-000 |
US $1.22 |
||
|
10
|
10
01550-0816A-000 BOLTBolt, rear 4WD:4V; 2005-08-01~2005-12-01 |
01550-0816A-000 |
from US $0.91 |
||
|
11
|
11
08212-12201-000 WASHERWasher 4WD:4V; 2005-08-01~2005-12-01 |
08212-12201-000 |
from US $0.91 |
||
|
12
|
12
08332-1110A-000 E RING4WD:4V; 2005-08-01~2005-12-01 |
08332-1110A-000 |
from US $0.96 |
