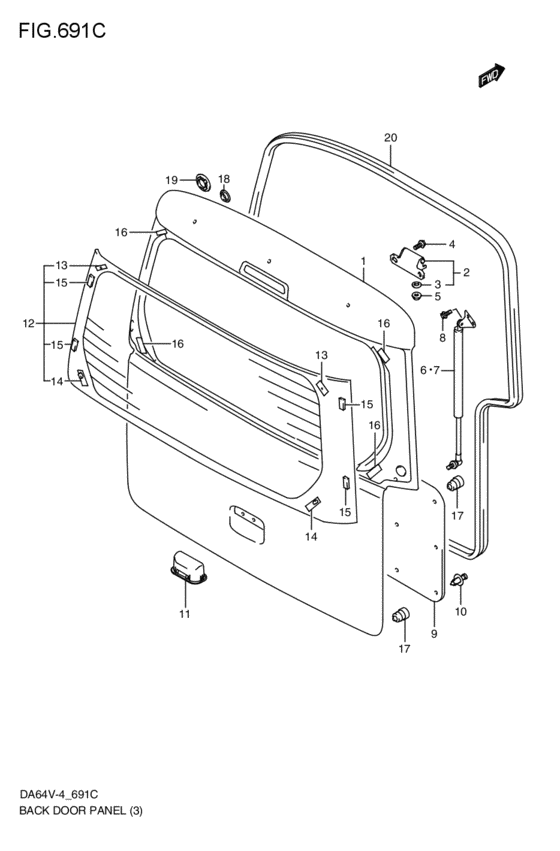

back door panel (WBL; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2009 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- WBL
- number of the gears
- 4AT
- body
- DA64W
- abs
- ABS
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-68H52-000
パネルアッシ,バックドア
WBL; 2008-01-01~ |
69100-68H52-000 |
— | ||
|
2
|
2
69510-68H00-000
Hinge,back door
WBL; 2008-01-01~ |
69510-68H00-000 |
— | ||
| replacement | |||||
|
2
|
2
69510-68H01-000 HINGE,BACK DOORWBL; 2008-01-01~ |
69510-68H01-000 |
US $28.52 |
||
|
3
|
3
69571-79A00-000 PACKING,BACK DOOR HINGEWBL; 2008-01-01~ |
69571-79A00-000 |
US $2.72 |
||
|
4
|
4
09111-08094-000 BOLT(8X16)WBL; 2008-01-01~ |
09111-08094-000 |
US $15.80 |
||
|
5
|
5
08361-2508A-000 NUTWBL; 2008-01-01~ |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81850-68820-000
バランサ,バックドア,ライト
ライト; WBL; 2008-01-01~ |
81850-68820-000 |
— | ||
|
7
|
7
81860-68820-000
バランサ,バックドア,レフト
レフト; WBL; 2008-01-01~ |
81860-68820-000 |
— | ||
|
8
|
8
02162-0616A-000 SCREWWBL; 2008-01-01~ |
02162-0616A-000 |
from US $0.95 |
||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust WBL; 2008-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
9
|
9
83771-68H00-T5T TRIM,BACK DOORベ-ジユ; WBL; 2008-01-01~ |
83771-68H00-T5T |
US $48.21 |
||
|
10
|
10
09409-08308-R8H CLIP(BEIGE)ベ-ジユ; WBL; 2008-01-01~ |
09409-08308-R8H |
US $1.68 |
||
|
11
|
11
82841-82G01-P4Z
Handle,back door inner
グレ-; WBL; 2008-01-01~ |
82841-82G01-P4Z |
— | ||
| replacement | |||||
|
11
|
11
82841-82G02-000 HANDLE,BACK DOOR INNERグレ-; WBL; 2008-01-01~ |
82841-82G02-000 |
US $7.62 |
||
|
12
|
12
84570-68H70-000 GLASS,BACK DR WINDOWCENTRAL; WBL; 2008-01-01~ |
84570-68H70-000 |
US $355.12 |
||
|
13
|
13
84513-76F00-000 MALE,GLASS FASTENER NO.2WBL; 2008-01-01~ |
84513-76F00-000 |
US $1.60 |
||
|
14
|
14
84572-74G00-000 MALE,GLASS FASTENER NO.1WBL; 2008-01-01~ |
84572-74G00-000 |
US $3.79 |
||
|
15
|
15
84583-73H00-000 SPACER,QTR WINDOW GLASSWBL; 2008-01-01~ |
84583-73H00-000 |
US $2.80 |
||
|
16
|
16
84515-65D00-000 FEMALE,GLASS FASTENER NO.2WBL; 2008-01-01~ |
84515-65D00-000 |
from US $3.53 |
||
|
17
|
17
82683-60B10-000 CUSHIONWBL; 2008-01-01~ |
82683-60B10-000 |
US $1.92 |
||
|
18
|
18
09250-20023-000 CAP(OD:25.8)WBL; 2008-01-01~ |
09250-20023-000 |
US $10.30 |
||
|
19
|
19
09250-30008-000 CAP(OD:40)WBL; 2008-01-01~ |
09250-30008-000 |
US $13.20 |
||
| replacement | |||||
|
19
|
19
72999-67H00-000 CAP,OD:40WBL; 2008-01-01~ |
72999-67H00-000 |
from US $4.32 |
||
|
20
|
20
84681-68H50-000
ウェザストリップ,バックドアオープニング
WBL; 2008-01-01~ |
84681-68H50-000 |
— | ||
| replacement | |||||
|
20
|
20
84681-68H51-000
New Genuine Part
WBL; 2008-01-01~ |
84681-68H51-000 |
— | ||
