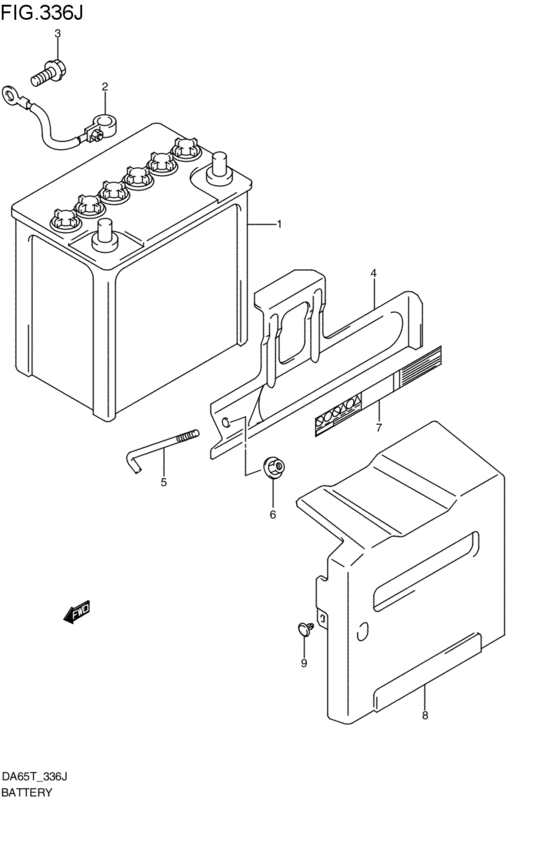

battery (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-71320-000
Battery assy (38b20l,12v,28ah/
FB; 2005-10-01~ |
33610-71320-000 |
— | ||
|
2
|
2
33850-67H00-000
ケーブル,バッテリグランド
2005-10-01~ |
33850-67H00-000 |
— | ||
| replacement | |||||
|
2
|
2
33850-67H01-000 CABLE,BATTERY GND NO.12005-10-01~ |
33850-67H01-000 |
US $23 |
||
|
3
|
3
09115-06005-000 BOLT(6X16)2005-10-01~ |
09115-06005-000 |
US $1.28 |
||
|
4
|
4
72511-67H01-000 BAND,BATTERY2005-10-01~ |
72511-67H01-000 |
US $18.24 |
||
|
5
|
5
72513-67H00-000 BOLT,BATTERY2005-10-01~ |
72513-67H00-000 |
US $2.58 |
||
|
6
|
6
08316-1006A-000 NUT2005-10-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
7
|
7
33618-67H00-000
ラベル,バッテリ
2005-10-01~ |
33618-67H00-000 |
— | ||
|
8
|
8
72515-67H01-000 COVER,BATTERY2005-10-01~ |
72515-67H01-000 |
US $56.80 |
||
|
9
|
9
09409-08327-000 CLIP2005-10-01~ |
09409-08327-000 |
from US $1.13 |
||
