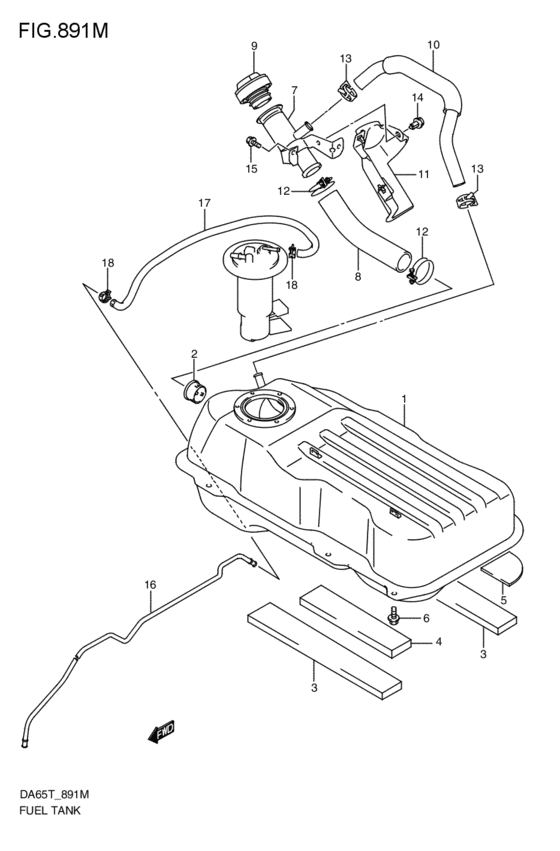

fuel tank (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-83J01-000
タンクアッシ,フューエル
2005-10-01~ |
89101-83J01-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-83J04-000 New Genuine Part2005-10-01~ |
89101-83J04-000 |
US $436.48 |
||
|
2
|
2
89280-77A00-000 VALVE,FUEL TANK INLET2005-10-01~ |
89280-77A00-000 |
US $8.32 |
||
|
3
|
3
89381-83J00-000 PAD,FUEL TANK2005-10-01~ |
89381-83J00-000 |
US $9.79 |
||
|
4
|
4
89381-63J00-000 PAD,FUEL TANK2005-10-01~ |
89381-63J00-000 |
US $5.28 |
||
|
5
|
5
89382-83J00-000
パッド,フューエルタンク
2005-10-01~ |
89382-83J00-000 |
— | ||
|
6
|
6
89191-83J00-000 BOLT,FUEL TANK FIXER2005-10-01~ |
89191-83J00-000 |
US $2.17 |
||
|
7
|
7
89210-83J00-000
ネック,フューエルフィラ
2005-10-01~ |
89210-83J00-000 |
— | ||
| replacement | |||||
|
7
|
7
89210-83J02-000
New Genuine Part
2005-10-01~ |
89210-83J02-000 |
— | ||
|
8
|
8
89241-83J00-000
ホース,フューエルタンクフィラ
2005-10-01~ |
89241-83J00-000 |
— | ||
|
9
|
9
89260-67H00-000 CAP ASSY,FUEL FILLER2005-10-01~ |
89260-67H00-000 |
US $110.21 |
||
|
10
|
10
89290-83J00-000
ホース,フューエルタンクブリーザ
2005-10-01~ |
89290-83J00-000 |
— | ||
|
11
|
11
89311-83J00-000
カバー,フューエルフィラホース
2005-10-01~ |
89311-83J00-000 |
— | ||
|
12
|
12
09400-45411-000 CLAMP2005-10-01~ |
09400-45411-000 |
US $28.70 |
||
|
13
|
13
09401-20405-000 CLIPClip, tank 2005-10-01~ |
09401-20405-000 |
from US $5.56 |
||
|
14
|
14
09409-08327-000 CLIP2005-10-01~ |
09409-08327-000 |
from US $1.13 |
||
|
15
|
15
02162-0616B-000 SCREWBolt, adjust 2005-10-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
16
|
16
89483-83J00-000
パイプ,フューエルエバポ
2005-10-01~ |
89483-83J00-000 |
— | ||
| replacement | |||||
|
16
|
16
89483-83J01-000
パイプ,フューエルエバポ
2005-10-01~ |
89483-83J01-000 |
— | ||
|
17
|
17
89486-83J00-000
ホース,フューエルエバポ
2005-10-01~ |
89486-83J00-000 |
— | ||
| replacement | |||||
|
17
|
17
89486-83J01-000
New Genuine Part
2005-10-01~ |
89486-83J01-000 |
— | ||
|
18
|
18
09401-11415-000 CLIP2005-10-01~ |
09401-11415-000 |
from US $1.06 |
||
