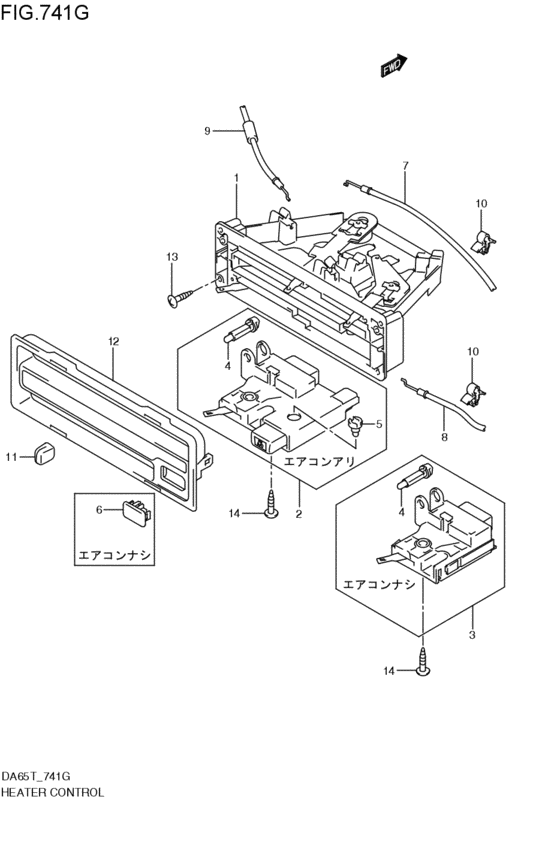

heater control (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74400-77A11-000
Lever assy, heater control
2005-10-01~ |
74400-77A11-000 |
— | ||
| replacement | |||||
|
1
|
1
74400-77A12-000 LEVER ASSY,HTR CONT2005-10-01~ |
74400-77A12-000 |
US $84.80 |
||
|
2
|
2
74430-78A00-000
Switch assy, fan
エアコン ミセッテイ; AIRCON-N; 2005-10-01~ |
74430-78A00-000 |
— | ||
| replacements | |||||
|
2
|
2
74430-78810-000
SWITCH SET,BLO FAN
エアコン ミセッテイ; AIRCON-N; 2005-10-01~ |
74430-78810-000 |
— | ||
|
2
|
2
74430-78812-000 SWITCH SET,BLO FANエアコン ミセッテイ; AIRCON-N; 2005-10-01~ |
74430-78812-000 |
US $83.20 |
||
|
4
|
4
74432-81A00-000
BULB(GREEN)
2005-10-01~ |
74432-81A00-000 |
— | ||
| replacement | |||||
|
4
|
4
74432-81A01-000 Bulb2005-10-01~ |
74432-81A01-000 |
US $8.43 |
||
|
6
|
6
74519-78A00-000 PLUG,A/C SWITCHエアコン ミセッテイ; AIRCON-N; 2005-10-01~ |
74519-78A00-000 |
US $1.52 |
||
|
7
|
7
74451-67H01-000 CABLE,MODE CONTROLナチュラル; 2005-10-01~ |
74451-67H01-000 |
US $10.56 |
||
|
8
|
8
74452-67H01-000 CABLE,TEMP CONTROLブルー; 2005-10-01~ |
74452-67H01-000 |
US $11.68 |
||
|
9
|
9
74453-67H01-000 CABLE,FRESH AIR CONTROLブラック; 2005-10-01~ |
74453-67H01-000 |
US $6.48 |
||
|
10
|
10
09403-08406-000 CLAMP2005-10-01~ |
09403-08406-000 |
from US $1.44 |
||
|
11
|
11
74461-77A00-000 KNOB,HTR CONT2005-10-01~ |
74461-77A00-000 |
US $1.98 |
||
|
12
|
12
74510-81A00-000 PANEL,HEATER CONTROL2005-10-01~ |
74510-81A00-000 |
US $58.40 |
||
|
13
|
13
03541-0516A-000 SCREW2005-10-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
14
|
14
03541-0410A-000 SCREW2005-10-01~ |
03541-0410A-000 |
from US $0.80 |
||
