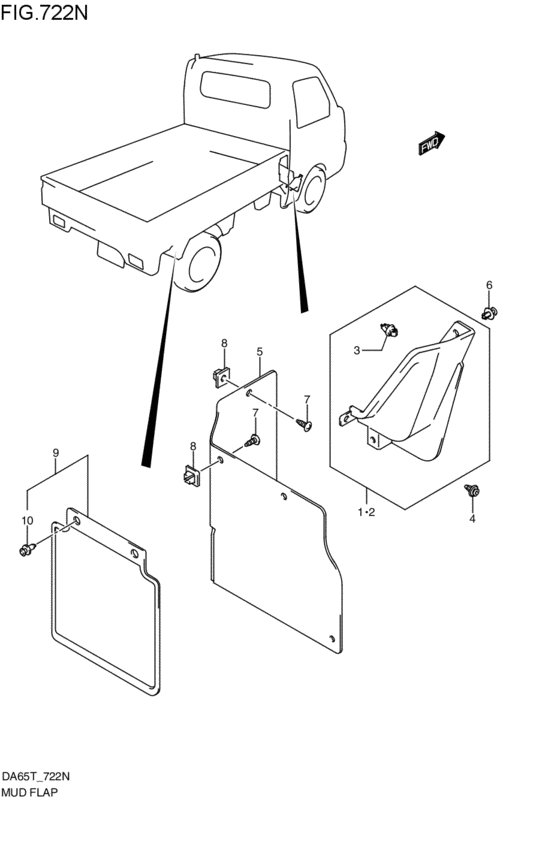

mad flap (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72211-83J00-000 FLAP,FR MUD,R2005-10-01~ |
72211-83J00-000 |
US $75.20 |
||
|
2
|
2
72221-83J00-000 FLAP,FR MUD,L2005-10-01~ |
72221-83J00-000 |
US $18 |
||
|
3
|
3
09409-09304-000 CLIP2005-10-01~ |
09409-09304-000 |
US $1.76 |
||
|
4
|
4
09409-06322-5PK CLIP(BLACK)Clip (black) ブラック; 2005-10-01~ |
09409-06322-5PK |
from US $2.88 |
||
|
5
|
5
72212-83J00-000
フラップ,フロントマッドインナ
2005-10-01~ |
72212-83J00-000 |
— | ||
|
6
|
6
09409-07332-000 CLIP2005-10-01~ |
09409-07332-000 |
from US $1.28 |
||
|
7
|
7
03541-0616A-000 SCREW2005-10-01~ |
03541-0616A-000 |
from US $0.64 |
||
|
8
|
8
09148-06006-000 NUTNut, side 2005-10-01~ |
09148-06006-000 |
US $0.96 |
||
|
9
|
9
72220-78810-5PK FLAP SET,RR MUD (1 pc)ブラック; 2005-10-01~ |
72220-78810-5PK |
US $35.20 |
||
|
10
|
10
09409-08327-000 CLIP2005-10-01~ |
09409-08327-000 |
from US $1.82 |
