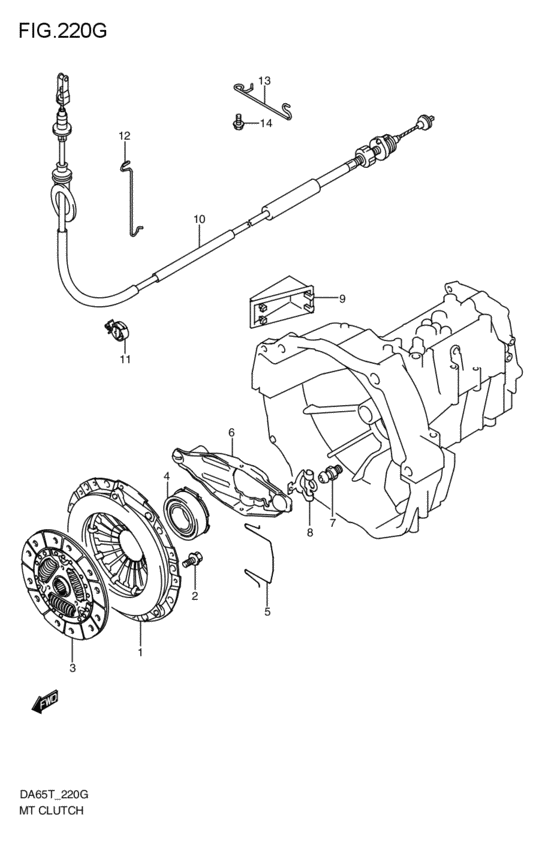

mt - clutch (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-78A40-000
Cover assy,clutch
2005-10-01~ |
22100-78A40-000 |
— | ||
|
2
|
2
09117-08096-000 BOLT(8X16)2005-10-01~ |
09117-08096-000 |
from US $1.28 |
||
|
3
|
3
22400-78A21-000
Disc comp,clutch
2005-10-01~ |
22400-78A21-000 |
— | ||
| replacements | |||||
|
3
|
3
22400-78821-000
DISC&COVER SET,CLUTCH
2005-10-01~ |
22400-78821-000 |
— | ||
|
3
|
3
22400-78A22-000
DISC COMP,CLUTCH
2005-10-01~ |
22400-78A22-000 |
— | ||
|
4
|
4
23265-81A20-000 BEARING,CLUTCH RELEASE2005-10-01~ |
23265-81A20-000 |
US $62.32 |
||
|
5
|
5
23231-81A20-000 CLIP,CLUTCH RELEASE BRG2005-10-01~ |
23231-81A20-000 |
from US $3.67 |
||
|
6
|
6
23211-68H00-000 FORK,CLUTCH RELEASE2005-10-01~ |
23211-68H00-000 |
US $48 |
||
|
7
|
7
23221-78A00-000 SUPPORT,CLUTCH RELEASE FORK2005-10-01~ |
23221-78A00-000 |
from US $6.98 |
||
|
8
|
8
23241-78A20-000 CLIP,CLUTCH RELEASE FORK2005-10-01~ |
23241-78A20-000 |
from US $1.92 |
||
|
9
|
9
22641-81A20-000 CAP,T/M FR CASE2005-10-01~ |
22641-81A20-000 |
from US $5.76 |
||
|
10
|
10
23710-83J00-000
ケーブルアッシ,クラッチ
2005-10-01~ |
23710-83J00-000 |
— | ||
|
11
|
11
23915-68H00-000 CLAMP,CLUTCH CABLE2005-10-01~ |
23915-68H00-000 |
US $2.32 |
||
|
12
|
12
23915-83J00-000
クランプ,クラッチケーブルNO.1
2005-10-01~ |
23915-83J00-000 |
— | ||
|
13
|
13
23915-83J10-000
クランプ,クラッチケーブルNO.2
2005-10-01~ |
23915-83J10-000 |
— | ||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket 2005-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
