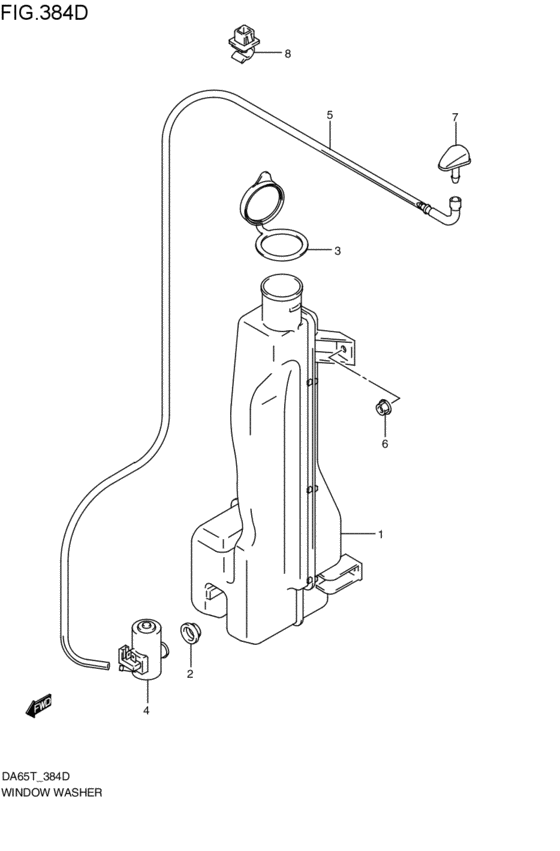

ウインドウオッシャ (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-67H00-000 TANK ASSY,WASHER2005-10-01~ |
38450-67H00-000 |
US $93.60 |
||
|
2
|
2
38453-78F00-000 GROMMET,WASHER TANK2005-10-01~ |
38453-78F00-000 |
US $2.80 |
||
|
3
|
3
38452-67H00-000 CAP,WASHER TANK2005-10-01~ |
38452-67H00-000 |
from US $2.57 |
||
|
4
|
4
38410-67H00-000 PUMP ASSY,WASHER2005-10-01~ |
38410-67H00-000 |
US $79.49 |
||
|
5
|
5
38490-67H00-000 HOSE ASSY,WASHER2005-10-01~2007-03-01 |
38490-67H00-000 |
US $8.02 |
||
|
5
|
5
38490-67H01-000 HOSE ASSY,WASHER2007-04-01~ |
38490-67H01-000 |
US $8.02 |
||
|
6
|
6
09159-06076-000 NUT2005-10-01~ |
09159-06076-000 |
from US $1.28 |
||
|
7
|
7
38480-67H00-000 NOZZLE,WASHER2005-10-01~ |
38480-67H00-000 |
US $11.44 |
||
|
8
|
8
09403-07330-000 CLAMP2005-10-01~ |
09403-07330-000 |
US $14.40 |
