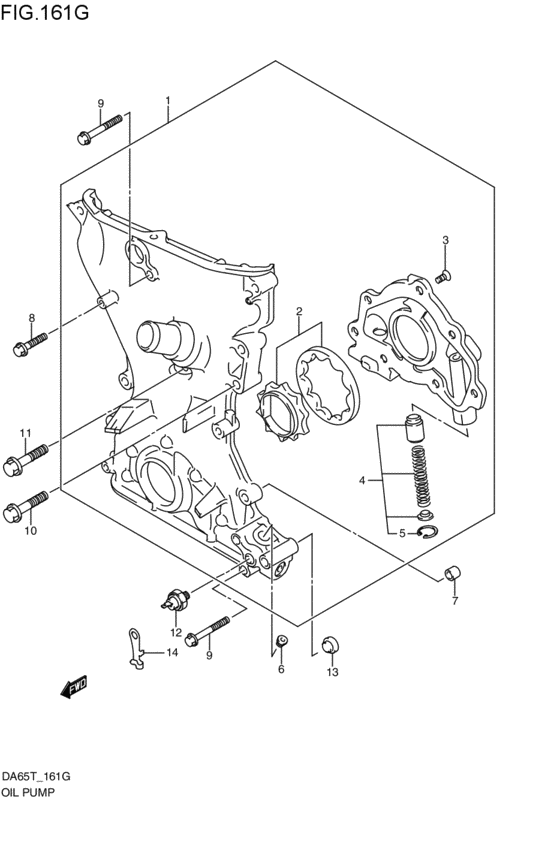

Oil pump (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-83J00-000
ポンプアッシ,オイル
2005-10-01~ |
16100-83J00-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-83J03-000
New Genuine Part
2005-10-01~ |
16100-83J03-000 |
— | ||
|
2
|
2
16130-58810-000 ROTOR SET,OIL PUMP2005-10-01~ |
16130-58810-000 |
US $54.10 |
||
|
3
|
3
02122-0616A-000 SCREW2005-10-01~ |
02122-0616A-000 |
from US $0.76 |
||
|
4
|
4
16150-60A20-000 VALVE SET,OIL PUMP RELIEF2005-10-01~ |
16150-60A20-000 |
US $9.12 |
||
|
5
|
5
08331-4115A-000 CIRCLIP2005-10-01~ |
08331-4115A-000 |
US $1.60 |
||
|
6
|
6
09246-05006-000 PLUG(1/8PT,H:5.5)2005-10-01~ |
09246-05006-000 |
from US $1.42 |
||
|
7
|
7
04211-09109-000 PINKnock pin 2005-10-01~ |
04211-09109-000 |
from US $0.96 |
||
|
8
|
8
01550-0630A-000 BOLT2005-10-01~ |
01550-0630A-000 |
from US $0.96 |
||
|
9
|
9
01550-0650A-000 BOLTBolt (6x50) 2005-10-01~ |
01550-0650A-000 |
from US $0.96 |
||
|
10
|
10
01550-0840A-000 BOLT2005-10-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
11
|
11
09103-08388-000 BOLT(8X40)Bolt, rr final gr case 2005-10-01~ |
09103-08388-000 |
US $16.90 |
||
|
12
|
12
37820-73H10-000
Switch assy,oil pressure
2005-10-01~ |
37820-73H10-000 |
— | ||
| replacement | |||||
|
12
|
12
37820-73HP0-000 SWITCH ASSY,OIL PRESS2005-10-01~ |
37820-73HP0-000 |
from US $16.85 |
||
|
13
|
13
16210-73H01-000 FILTER,OIL GALLERY2005-10-01~ |
16210-73H01-000 |
from US $7.45 |
||
|
14
|
14
36995-80C00-000 CLAMP,OIL P SW2005-10-01~ |
36995-80C00-000 |
US $3.42 |
||
