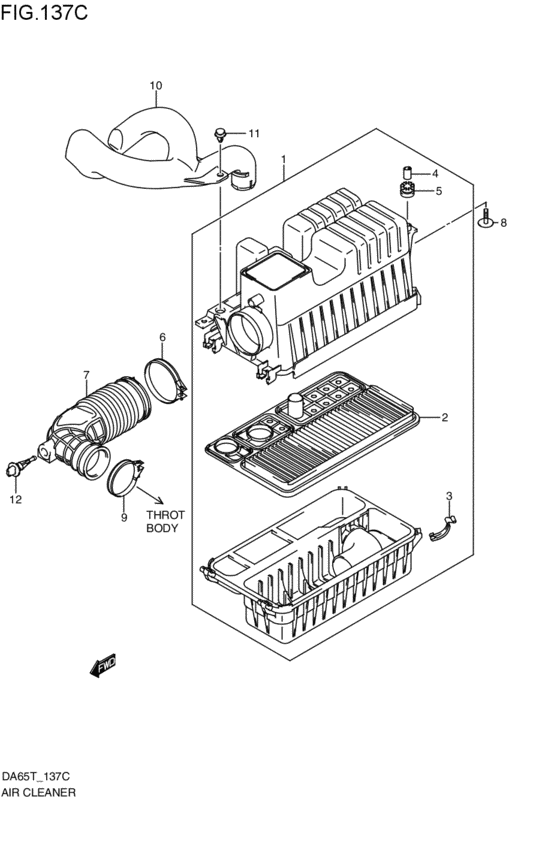

air cleaner (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-83J00-000
クリーナアッシ,エア
2005-10-01~ |
13700-83J00-000 |
— | ||
| replacement | |||||
|
1
|
1
13700-83J01-000
クリーナアッシ,エア
2005-10-01~ |
13700-83J01-000 |
— | ||
|
2
|
2
13780-83J00-000 ELEMENT,AIR CLEANER2005-10-01~ |
13780-83J00-000 |
US $28.80 |
||
|
3
|
3
13755-65D00-000 CLIP,AIR CLEANER2005-10-01~ |
13755-65D00-000 |
from US $3.69 |
||
|
4
|
4
13877-65D00-000 COLLAR,7.6X10X19.32005-10-01~ |
13877-65D00-000 |
US $3.04 |
||
|
5
|
5
13878-65D00-000 CUSHION,12.5X22X19.52005-10-01~ |
13878-65D00-000 |
US $2.74 |
||
|
6
|
6
09402-80207-000 CLAMP2005-10-01~ |
09402-80207-000 |
from US $9.62 |
||
|
7
|
7
13881-83J00-000
ホース,エアクリーナアウトレット
2005-10-01~ |
13881-83J00-000 |
— | ||
|
8
|
8
09116-06172-000 BOLT(6X30)Bolt (6x30) 2005-10-01~ |
09116-06172-000 |
from US $1.44 |
||
|
9
|
9
09402-52208-000 CLAMP2005-10-01~ |
09402-52208-000 |
from US $2.08 |
||
|
10
|
10
13870-83J00-000
パイプ,エアクリーナインレット
2005-10-01~ |
13870-83J00-000 |
— | ||
|
11
|
11
09409-08327-000 CLIP2005-10-01~ |
09409-08327-000 |
from US $1.13 |
||
|
12
|
12
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp 2005-10-01~ |
13650-52G00-000 |
from US $50.92 |
||
