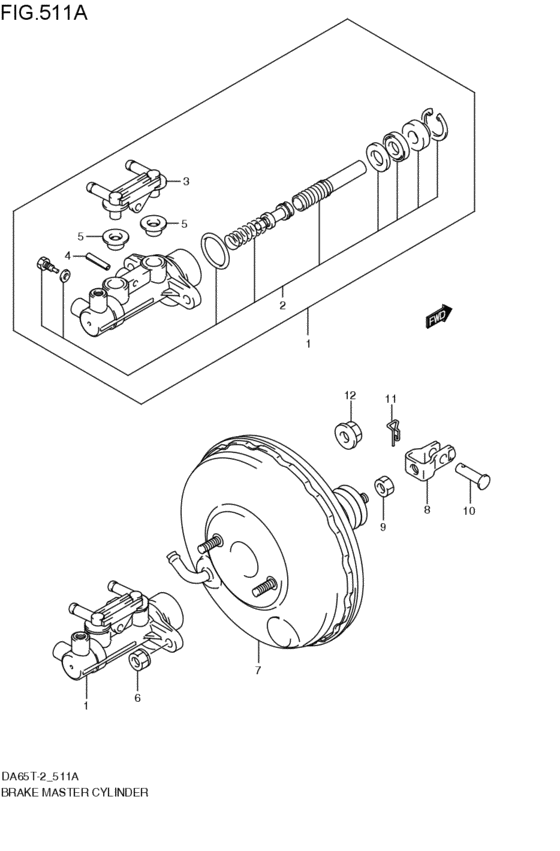

brakes master cylinder (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-78A10-000
Cylinder assy, brake master
2008-01-01~ |
51100-78A10-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-78A11-000 CYLINDER ASSY,BRAKE MASTER2008-01-01~ |
51100-78A11-000 |
US $259.44 |
||
|
2
|
2
51100-60810-000
Piston set, brake master
2008-01-01~ |
51100-60810-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-60811-000 PISTON SET,BRAKE MASTER2008-01-01~ |
51100-60811-000 |
US $91.26 |
||
|
3
|
3
51191-78A10-000 UNION2008-01-01~ |
51191-78A10-000 |
US $16.19 |
||
|
4
|
4
09205-05016-000 PIN,SPRING(5X32)2008-01-01~ |
09205-05016-000 |
US $1.12 |
||
|
5
|
5
51197-85520-000 GROMMET,RESERVOIR CONNECTOR2008-01-01~ |
51197-85520-000 |
US $2.72 |
||
|
6
|
6
09159-08075-000 NUT2008-01-01~ |
09159-08075-000 |
US $0.91 |
||
|
7
|
7
51300-83J00-000
ブースタアッシ,ブレーキマスタ
2008-01-01~ |
51300-83J00-000 |
— | ||
|
8
|
8
51182-67H00-000 CLEVIS,PUSH ROD2008-01-01~ |
51182-67H00-000 |
US $10.27 |
||
|
9
|
9
09140-10019-000 NUT2008-01-01~ |
09140-10019-000 |
US $9.20 |
||
|
10
|
10
09200-10017-000 PIN2008-01-01~ |
09200-10017-000 |
US $15.50 |
||
|
11
|
11
09385-10006-000 PIN,SNAPPin 2008-01-01~ |
09385-10006-000 |
from US $1.60 |
||
|
12
|
12
09159-08134-000 NUT2008-01-01~ |
09159-08134-000 |
US $12.50 |
||
