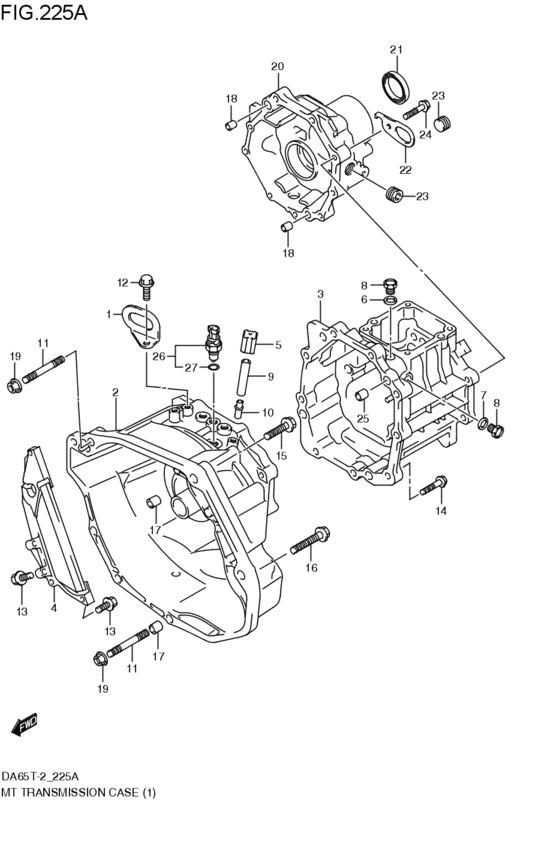

mt - transmission case (2WD; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11851-50F00-000 HOOK,ENGINE2WD; 2008-01-01~ |
11851-50F00-000 |
US $3.20 |
||
|
2
|
2
24711-68H20-000
Case,transmission front
2WD; 2008-01-01~ |
24711-68H20-000 |
— | ||
| replacement | |||||
|
2
|
2
24711-68H21-000 CASE,T/M,FR2WD; 2008-01-01~ |
24711-68H21-000 |
US $440 |
||
|
3
|
3
24721-76J00-000
CASE,T/M,RR
2WD; 2008-01-01~ |
24721-76J00-000 |
— | ||
| replacement | |||||
|
3
|
3
24721-76J01-000 Case,transmission Rear2WD; 2008-01-01~ |
24721-76J01-000 |
US $207.92 |
||
|
4
|
4
24790-67H01-000 STIFFENER,ENG&T/M2WD; 2008-01-01~ |
24790-67H01-000 |
US $55.94 |
||
|
5
|
5
27991-65D01-000 PLUG,BREATHER2WD; 2008-01-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
6
|
6
09168-14011-000 GASKET(14X20X1.5)2WD; 2008-01-01~ |
09168-14011-000 |
from US $0.72 |
||
|
7
|
7
22913-59J10-000 GASKET,14X20X0.92WD; 2008-01-01~ |
22913-59J10-000 |
from US $1.51 |
||
|
8
|
8
09247-14029-000 PLUG2WD; 2008-01-01~ |
09247-14029-000 |
from US $1.26 |
||
|
9
|
9
09352-70113-600
HOSE(7X11X600)
L:600>40; 2WD; 2008-01-01~ |
09352-70113-600 |
— | ||
| replacement | |||||
|
9
|
9
09352-70119-600 Hose(7X11X600)L:600>40; 2WD; 2008-01-01~ |
09352-70119-600 |
from US $4.64 |
||
|
10
|
10
09364-08004-000 UNION2WD; 2008-01-01~ |
09364-08004-000 |
US $14.40 |
||
|
11
|
11
01421-1045A-000 BOLT,STUD2WD; 2008-01-01~ |
01421-1045A-000 |
US $16.20 |
||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket 2WD; 2008-01-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
13
|
13
01550-0830A-000 BOLTBolt, mount oil seal cover 2WD; 2008-01-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
14
|
14
01550-0840A-000 BOLT2WD; 2008-01-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
15
|
15
01550-1055A-000 BOLT2WD; 2008-01-01~ |
01550-1055A-000 |
from US $5.88 |
||
|
16
|
16
01550-1075A-000 Bolt2WD; 2008-01-01~ |
01550-1075A-000 |
US $1.60 |
||
|
17
|
17
04211-13149-000 PIN2WD; 2008-01-01~ |
04211-13149-000 |
from US $1.28 |
||
|
18
|
18
04211-13149-000 PIN2WD; 2008-01-01~ |
04211-13149-000 |
from US $1.28 |
||
|
19
|
19
08316-1010A-000 NUTNut, kick starter 2WD; 2008-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
20
|
20
24770-68H00-000 CASE,EXTENSION2WD; 2008-01-01~ |
24770-68H00-000 |
US $230 |
||
|
21
|
21
24780-83010-000 SEAL,EXTENSION CASE OIL2WD; 2008-01-01~ |
24780-83010-000 |
from US $5.74 |
||
|
22
|
22
24855-68H20-000 HOOK,TRANSMISSION2WD; 2008-01-01~ |
24855-68H20-000 |
US $2.80 |
||
|
23
|
23
09246-16010-000 PLUG2WD; 2008-01-01~ |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
23
|
23
09246-16021-000 Plug,t/m Oil Drain2WD; 2008-01-01~ |
09246-16021-000 |
from US $4.01 |
||
|
24
|
24
01550-0840A-000 BOLT2WD; 2008-01-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
25
|
25
04211-13149-000 PIN2WD; 2008-01-01~ |
04211-13149-000 |
from US $1.28 |
||
|
26
|
26
37610-76G00-000 SWITCH ASSY,BACK UP LAMP2WD; 2008-01-01~ |
37610-76G00-000 |
US $17.70 |
||
|
27
|
27
09280-11002-000 O RING(D:1.9,ID:11.4)2WD; 2008-01-01~ |
09280-11002-000 |
from US $0.88 |
||
