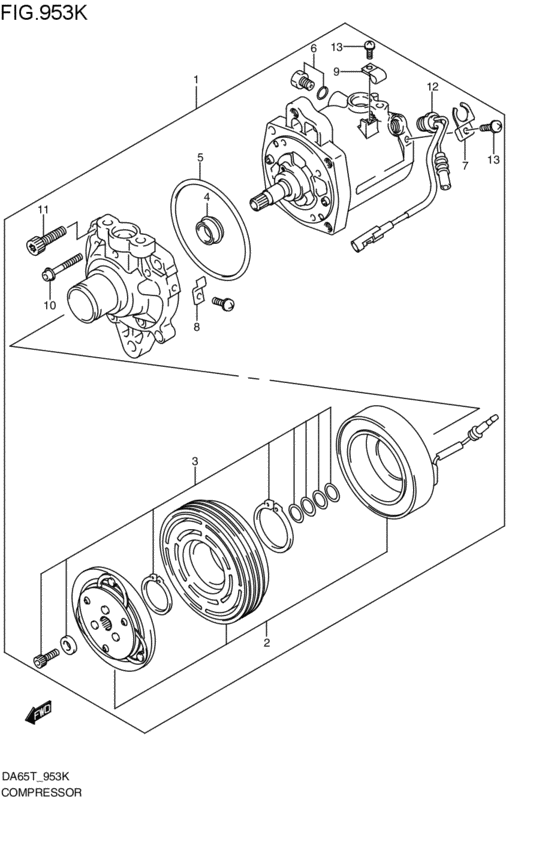

compressor (エアコン; 2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB
- power steering
- PWST
- air-conditioner
- AIRCON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-58J20-000
コンプレッサアッシ
2005-10-01~ |
95200-58J20-000 |
— | ||
| replacement | |||||
|
1
|
1
95200-58J22-000
COMPRESSOR ASSY
2005-10-01~ |
95200-58J22-000 |
— | ||
|
2
|
2
95210-58J20-000 CLUTCH ASSY,MAGNET2005-10-01~ |
95210-58J20-000 |
US $218.96 |
||
|
3
|
3
95298-72B20-000
Clip kit
2005-10-01~ |
95298-72B20-000 |
— | ||
| replacement | |||||
|
3
|
3
95298-72B21-000 CLIP KIT2005-10-01~ |
95298-72B21-000 |
US $20.24 |
||
|
4
|
4
95261-70B00-000
Seal, lip
2005-10-01~ |
95261-70B00-000 |
— | ||
|
5
|
5
95262-70B00-000
O ring
2005-10-01~ |
95262-70B00-000 |
— | ||
|
6
|
6
95271-72B01-000 VALVE,RELIEF2005-10-01~ |
95271-72B01-000 |
US $11.20 |
||
|
7
|
7
95291-58J00-000 CLAMP,WIRE2005-10-01~ |
95291-58J00-000 |
US $5.52 |
||
|
8
|
8
95291-70B00-000 FIXING PLATE2005-10-01~ |
95291-70B00-000 |
US $5.52 |
||
|
9
|
9
95293-60D00-000 CLAMP,CABLE2005-10-01~ |
95293-60D00-000 |
US $8.13 |
||
|
10
|
10
95296-58J00-000
Bolt
2005-10-01~ |
95296-58J00-000 |
— | ||
|
11
|
11
95297-58J00-000 Bolt2005-10-01~ |
95297-58J00-000 |
US $4.20 |
||
|
12
|
12
95527-58J10-000 PROTECTOR,THERMAL2005-10-01~ |
95527-58J10-000 |
US $47.10 |
||
|
13
|
13
02112-3408A-000 SCREW2005-10-01~ |
02112-3408A-000 |
from US $0.80 |
||
