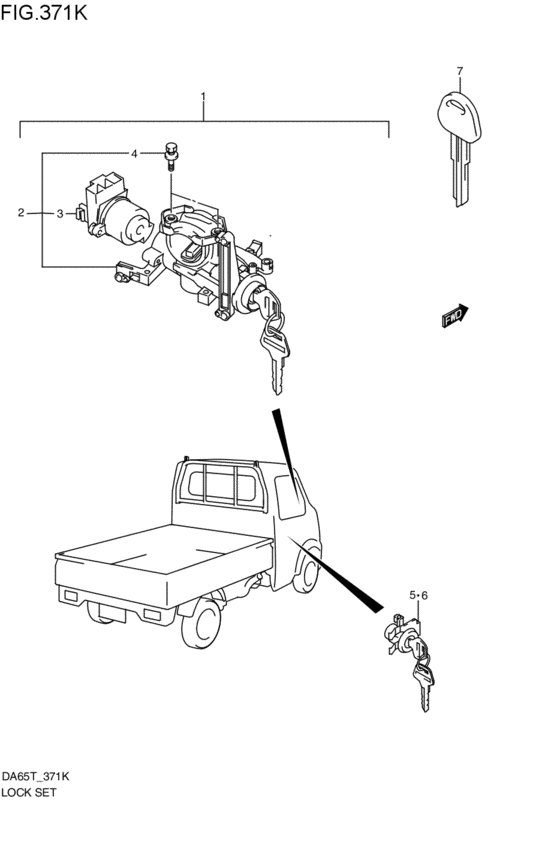

lock set (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB
- power steering
- PWST
- air-conditioner
- AIRCON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37102-79831-000 LOCK SET2005-10-01~ |
37102-79831-000 |
US $283.36 |
||
|
2
|
2
37102-79841-000 LOCK ASSY,STEERING2005-10-01~ |
37102-79841-000 |
US $231.84 |
||
|
3
|
3
37111-65H00-000 SWITCH ASSY2005-10-01~ |
37111-65H00-000 |
US $153.52 |
||
|
4
|
4
37152-84G00-000 BOLT, STRG LOCK2005-10-01~ |
37152-84G00-000 |
from US $2.98 |
||
|
5
|
5
82201-50813-000 CYLINDER,FR DR LOCK,R2005-10-01~ |
82201-50813-000 |
US $84.80 |
||
|
6
|
6
82201-50823-000 CYLINDER,FR DR LOCK,L2005-10-01~ |
82201-50823-000 |
US $53.36 |
||
|
7
|
7
37145-60A00-000 KEY,BLANKオプション; 2005-10-01~ |
37145-60A00-000 |
from US $18.09 |
