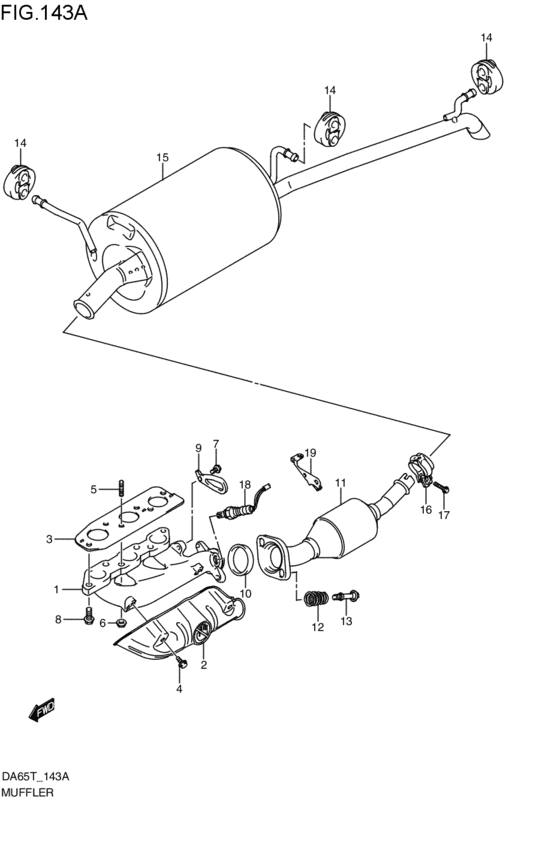

muffler (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB
- power steering
- PWST
- air-conditioner
- AIRCON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-83J00-000 MANIFOLD,EXH2005-10-01~ |
14111-83J00-000 |
US $291.20 |
||
|
2
|
2
14121-83J00-000
Cover,exh manf
2005-10-01~ |
14121-83J00-000 |
— | ||
| replacement | |||||
|
2
|
2
14121-83J01-000 COVER,EXH MANF2005-10-01~ |
14121-83J01-000 |
US $31.20 |
||
|
3
|
3
14141-83G00-000
ガスケット,エキゾーストマニホールド
2005-10-01~ |
14141-83G00-000 |
— | ||
| replacement | |||||
|
3
|
3
14141-83G01-000 GASKET,EXH MANF2005-10-01~ |
14141-83G01-000 |
US $42.40 |
||
|
4
|
4
09103-06168-000 BOLT(6X10)2005-10-01~ |
09103-06168-000 |
US $1.60 |
||
|
5
|
5
09108-08256-000 BOLT,STUD(8X36)2005-10-01~ |
09108-08256-000 |
US $23.90 |
||
|
6
|
6
08316-1008A-000 NUTNut, idle gear shaft 2005-10-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
7
|
7
01550-0816A-000 BOLTBolt, rear 2005-10-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
8
|
8
01550-0825A-000 BOLT2005-10-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
11851-62B00-000 HOOK2005-10-01~ |
11851-62B00-000 |
US $5.02 |
||
|
10
|
10
14183-76A00-000 RING,SEAL EXH PIPE2005-10-01~ |
14183-76A00-000 |
US $19.76 |
||
|
11
|
11
14190-83J00-000
パイプ,エキゾースト
2005-10-01~ |
14190-83J00-000 |
— | ||
|
12
|
12
14492-67D00-000 SPRING,EXH PIPE2005-10-01~ |
14492-67D00-000 |
US $8.64 |
||
|
13
|
13
09119-10073-000 BOLT(10X65)2005-10-01~ |
09119-10073-000 |
US $6.49 |
||
|
14
|
14
14281-60G10-000
Mounting,muffler
2005-10-01~ |
14281-60G10-000 |
— | ||
| replacement | |||||
|
14
|
14
14281-60G11-000 MOUNTING,MUFFLER(HS60)2005-10-01~ |
14281-60G11-000 |
US $5.78 |
||
|
15
|
15
14300-83J01-000
マフラ
2005-10-01~ |
14300-83J01-000 |
— | ||
| replacement | |||||
|
15
|
15
14300-83J05-000
New Genuine Part
2005-10-01~ |
14300-83J05-000 |
— | ||
|
16
|
16
14185-72J00-000 CLAMP,EXH PIPE2005-10-01~ |
14185-72J00-000 |
US $7.68 |
||
|
17
|
17
14186-72J00-000 BOLT,EXH PIPE CLAMP 8X352005-10-01~ |
14186-72J00-000 |
US $2.13 |
||
|
18
|
18
18213-68H00-000
Sensor,oxygen
NGK; 2005-10-01~ |
18213-68H00-000 |
— | ||
| replacement | |||||
|
18
|
18
18213-68H01-000 SENSOR,OXYGENNGK; 2005-10-01~ |
18213-68H01-000 |
US $353.60 |
||
|
19
|
19
18214-67H00-000 BRACKET,OXYGEN SENSOR2005-10-01~ |
18214-67H00-000 |
US $4.71 |
||
