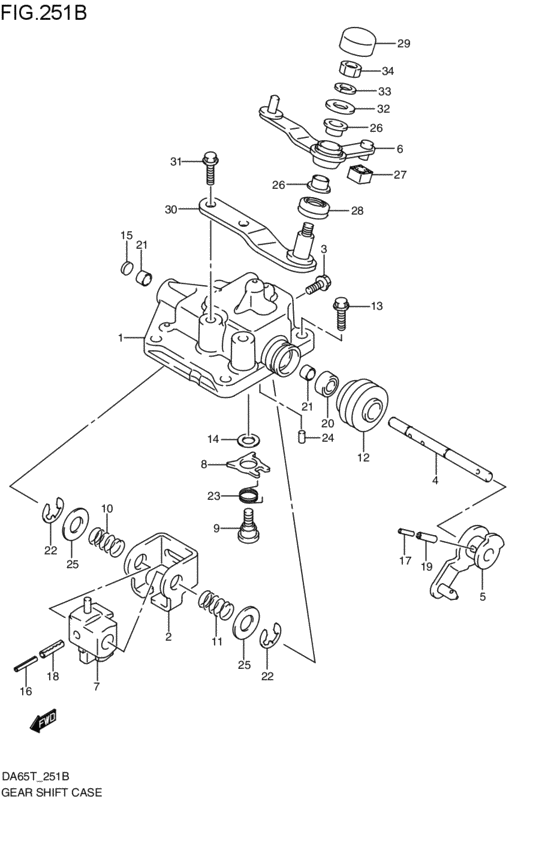

mt - ギヤシフトケ - (2WD; 2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB
- power steering
- PWST
- air-conditioner
- AIRCON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25120-83J00-000 CASE,GR SHF LEVER2WD; 2005-10-01~ |
25120-83J00-000 |
US $83.54 |
||
|
2
|
2
25311-83J00-000 PLATE,GEAR SHF INTERLOCK2WD; 2005-10-01~ |
25311-83J00-000 |
US $12.14 |
||
|
3
|
3
25321-78A20-000 BOLT,GEAR SHIFT STOP2WD; 2005-10-01~ |
25321-78A20-000 |
US $3.68 |
||
|
4
|
4
25571-83J00-000 SHAFT,GEAR SHIFT2WD; 2005-10-01~ |
25571-83J00-000 |
US $31.65 |
||
|
5
|
5
25610-83J00-000 LEVER,SHIFT CABLE2WD; 2005-10-01~ |
25610-83J00-000 |
US $43.06 |
||
|
6
|
6
25620-83J00-000 LEVER,SELECT CABLE2WD; 2005-10-01~ |
25620-83J00-000 |
US $30.73 |
||
|
7
|
7
25540-83J00-000 LEVER,GEAR SHF&SLT2WD; 2005-10-01~ |
25540-83J00-000 |
US $33.86 |
||
|
8
|
8
25545-68H00-000 YOKE,REV SHIFT LIM2WD; 2005-10-01~ |
25545-68H00-000 |
US $4.86 |
||
|
9
|
9
25546-68H00-000 RETAINER,REV SHF LIM YOKE2WD; 2005-10-01~ |
25546-68H00-000 |
US $5.12 |
||
|
10
|
10
25576-68H00-000 SPRING,LOW SELECT RETURN2WD; 2005-10-01~ |
25576-68H00-000 |
US $2.13 |
||
|
11
|
11
25577-83J00-000 SPRING,5TH&REV SELECT RETURN2WD; 2005-10-01~ |
25577-83J00-000 |
US $2.13 |
||
|
12
|
12
25651-74B00-000 BOOT,SHIFT&SELECT SFT OIL2WD; 2005-10-01~ |
25651-74B00-000 |
US $6.56 |
||
|
13
|
13
09103-08153-000 BOLT(8X30)Bolt (8x30) 2WD; 2005-10-01~ |
09103-08153-000 |
US $11.80 |
||
|
14
|
14
09181-10167-000 SHIM(10X18X1)Thrust washer 2WD; 2005-10-01~ |
09181-10167-000 |
from US $3.11 |
||
|
15
|
15
09241-16005-000 PLUG2WD; 2005-10-01~ |
09241-16005-000 |
US $24.70 |
||
|
16
|
16
09205-03016-000 PIN,SPRING(3.5X28)2WD; 2005-10-01~ |
09205-03016-000 |
US $11 |
||
|
17
|
17
09205-03037-000 PIN,SPRING(3X25)2WD; 2005-10-01~ |
09205-03037-000 |
from US $0.81 |
||
|
18
|
18
09205-06004-000 PIN,SPRING(6X28)2WD; 2005-10-01~ |
09205-06004-000 |
US $11.40 |
||
|
19
|
19
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) 2WD; 2005-10-01~ |
09205-06007-000 |
from US $1.60 |
||
|
20
|
20
09283-14006-000 SEAL,OIL(14X22X6)2WD; 2005-10-01~ |
09283-14006-000 |
from US $3.74 |
||
|
21
|
21
09304-14020-000 BUSH2WD; 2005-10-01~ |
09304-14020-000 |
from US $1.82 |
||
|
22
|
22
08332-1112A-000 E RING2WD; 2005-10-01~ |
08332-1112A-000 |
from US $0.96 |
||
|
23
|
23
09448-16031-000 SPRING2WD; 2005-10-01~ |
09448-16031-000 |
US $19.10 |
||
|
24
|
24
04211-09169-000 PIN2WD; 2005-10-01~ |
04211-09169-000 |
from US $0.91 |
||
|
25
|
25
08212-14301-000 WASHER2WD; 2005-10-01~ |
08212-14301-000 |
from US $0.79 |
||
|
26
|
26
25558-74B01-000 BUSH,SEL LEVER BOSS2WD; 2005-10-01~ |
25558-74B01-000 |
US $1.60 |
||
|
27
|
27
25559-50F00-000 BUSH,SELECT LEVER SHAFT2WD; 2005-10-01~2006-11-01 |
25559-50F00-000 |
US $5.76 |
||
|
27
|
27
25559-79J00-000 BUSH,SELECT LEVER2WD; 2006-12-01~ |
25559-79J00-000 |
US $4.41 |
||
|
28
|
28
25624-74B00-000 BOOT,SEL LEVER INSIDE2WD; 2005-10-01~ |
25624-74B00-000 |
US $5.28 |
||
|
29
|
29
25625-74B00-000 BOOT,SEL LEVER OUTSIDE2WD; 2005-10-01~ |
25625-74B00-000 |
US $5.28 |
||
|
30
|
30
25630-83J00-000 BRACKET,SELECT LEVER2WD; 2005-10-01~ |
25630-83J00-000 |
US $15.24 |
||
|
31
|
31
01550-0816A-000 BOLTBolt, rear 2WD; 2005-10-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
32
|
32
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) 2WD; 2005-10-01~ |
09160-08151-000 |
from US $0.91 |
||
|
33
|
33
08321-0108A-000 WASHER,LOCK2WD; 2005-10-01~ |
08321-0108A-000 |
from US $0.80 |
||
|
34
|
34
08310-0008A-000 NUTNut, bead stopper 2WD; 2005-10-01~ |
08310-0008A-000 |
from US $0.76 |
