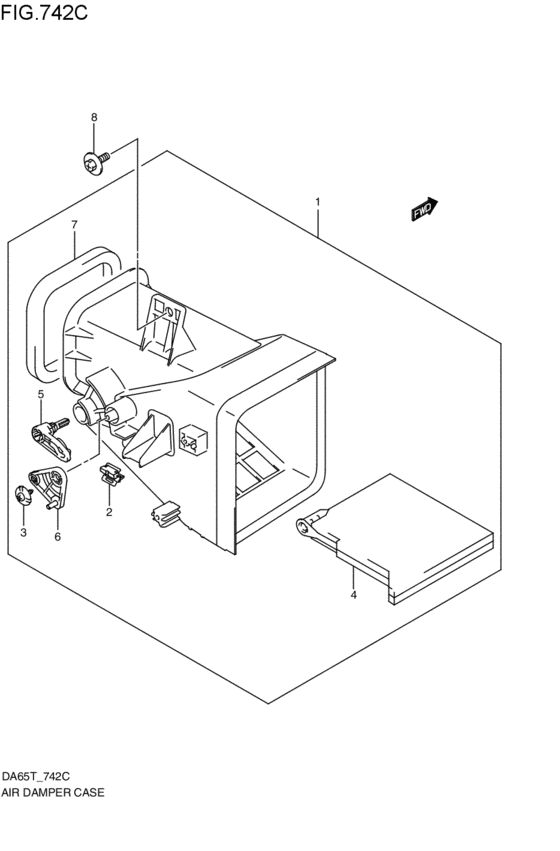

エアダンパケース (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB
- power steering
- PWST
- air-conditioner
- AIRCON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74200-67H00-000 BOX ASSY,AIR INLET2005-10-01~ |
74200-67H00-000 |
US $125.86 |
||
|
2
|
2
74151-50F00-000 CABLE2005-10-01~ |
74151-50F00-000 |
US $3.09 |
||
|
3
|
3
74183-82005-000 SCREW,LINK2005-10-01~ |
74183-82005-000 |
US $1.73 |
||
|
4
|
4
74212-77A00-000 DOOR ASSY,AIR INLET BOXDoor, air inlet box 2005-10-01~ |
74212-77A00-000 |
US $48.58 |
||
|
5
|
5
74213-67H00-000 LINK,DR2005-10-01~ |
74213-67H00-000 |
US $12.14 |
||
|
6
|
6
74214-67H00-000 LEVER,DR2005-10-01~ |
74214-67H00-000 |
US $13.76 |
||
|
7
|
7
74215-77A00-000 PACKING2005-10-01~ |
74215-77A00-000 |
US $12.64 |
||
|
8
|
8
09122-76003-000 SCREW(6X16)Bolt (6x16) 2005-10-01~ |
09122-76003-000 |
US $11.80 |
