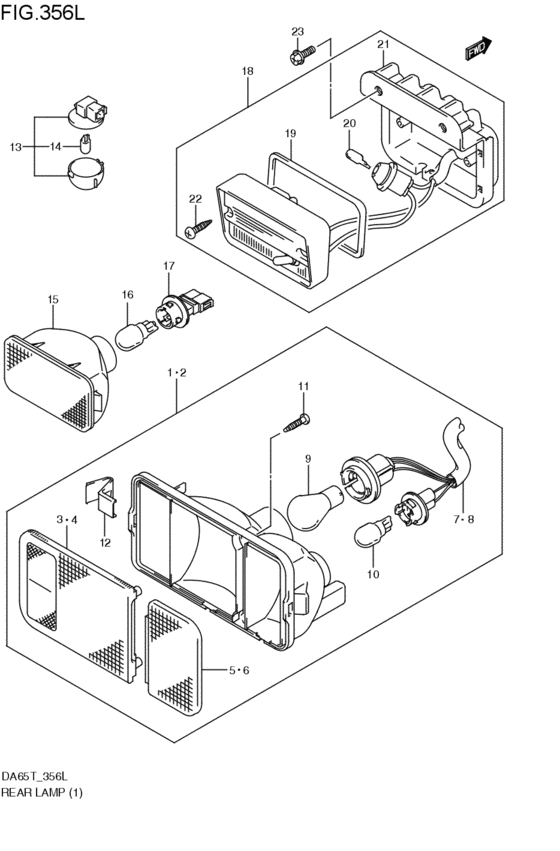

rear lamp (FC; 2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB
- power steering
- PWST
- air-conditioner
- AIRCON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35603-67H01-000
ランプアッシ,リヤコンビネーション,ライト
FC; 2005-10-01~ |
35603-67H01-000 |
— | ||
| replacement | |||||
|
1
|
1
35603-67H05-000 LAMP ASSY,RR COMB,RFC; 2005-10-01~ |
35603-67H05-000 |
US $108.69 |
||
|
2
|
2
35604-67H01-000
ランプアッシ,リヤコンビネーション,レフト
FC; 2005-10-01~ |
35604-67H01-000 |
— | ||
| replacement | |||||
|
2
|
2
35604-67H05-000 LAMP ASSY,RR COMB,LFC; 2005-10-01~ |
35604-67H05-000 |
US $169.60 |
||
|
3
|
3
35752-67H01-000 LENS,RR STOP LAMP,RFC; 2005-10-01~ |
35752-67H01-000 |
US $9.76 |
||
|
4
|
4
35772-67H01-000 LENS,RR STOP LAMP,LFC; 2005-10-01~ |
35772-67H01-000 |
US $10.88 |
||
|
5
|
5
35652-67H01-000 LENS,RR TURN SIG LAMP,RFC; 2005-10-01~ |
35652-67H01-000 |
US $6.24 |
||
|
6
|
6
35672-67H01-000 LENS,RR TURN SIG LAMP,LFC; 2005-10-01~ |
35672-67H01-000 |
US $6.24 |
||
|
7
|
7
35658-67H00-000
ソケット/コードアッシ,リヤコンビネーション,ライト
FC; 2005-10-01~ |
35658-67H00-000 |
— | ||
| replacement | |||||
|
7
|
7
35658-67H03-000 SOCKET&CORD ASSYFC; 2005-10-01~ |
35658-67H03-000 |
US $26.13 |
||
|
8
|
8
35678-67H00-000
ソケット/コードアッシ
FC; 2005-10-01~ |
35678-67H00-000 |
— | ||
| replacement | |||||
|
8
|
8
35678-67H03-000 SOCKET&CORD ASSYFC; 2005-10-01~ |
35678-67H03-000 |
US $26.13 |
||
|
9
|
9
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; FC; 2005-10-01~ |
09471-12083-000 |
from US $5.60 |
||
| replacement | |||||
|
9
|
9
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; FC; 2005-10-01~ |
09471-12128-000 |
from US $7.20 |
||
|
10
|
10
09471-12146-000 BULB(12V16W)Bulb (12v18w) STANLEY; FC; 2005-10-01~ |
09471-12146-000 |
US $3.36 |
||
|
11
|
11
03211-0412A-000 SCREWFC; 2005-10-01~ |
03211-0412A-000 |
from US $3.04 |
||
|
12
|
12
35662-67H00-000 HOOK,RR COMB LAMPFC; 2005-10-01~ |
35662-67H00-000 |
US $4.32 |
||
|
13
|
13
35910-75F11-000
Lamp assy, license
FC; 2005-10-01~ |
35910-75F11-000 |
— | ||
| replacement | |||||
|
13
|
13
35910-75F12-000 Lamp assy,licenseFC; 2005-10-01~ |
35910-75F12-000 |
US $14.57 |
||
|
14
|
14
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; FC; 2005-10-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
14
|
14
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; FC; 2005-10-01~ |
09471-12216-000 |
from US $4.32 |
||
|
15
|
15
36260-67H01-000
Lamp unit,back up
FC; 2005-10-01~ |
36260-67H01-000 |
— | ||
| replacement | |||||
|
15
|
15
36260-67H02-000 LAMP UNIT,BACK UPFC; 2005-10-01~ |
36260-67H02-000 |
US $24 |
||
|
16
|
16
09471-12146-000 BULB(12V16W)Bulb (12v18w) STANLEY; FC; 2005-10-01~ |
09471-12146-000 |
US $3.36 |
||
|
17
|
17
35618-70B00-000 SOCKET,LAMPTOKAI DENSO; FC; 2005-10-01~ |
35618-70B00-000 |
US $6.40 |
||
|
18
|
18
36230-67H00-000 LAMP ASSY,DECKFC; 2005-10-01~ |
36230-67H00-000 |
US $129.90 |
||
|
19
|
19
36233-85000-000 GASKETFC; 2005-10-01~ |
36233-85000-000 |
US $2.72 |
||
|
20
|
20
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; FC; 2005-10-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
20
|
20
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; FC; 2005-10-01~ |
09471-12216-000 |
from US $4.32 |
||
|
21
|
21
36237-60H00-000 COVER,DECK LAMPFC; 2005-10-01~ |
36237-60H00-000 |
US $17.60 |
||
|
22
|
22
03511-0425A-000 SCREWFC; 2005-10-01~ |
03511-0425A-000 |
US $9.90 |
||
|
23
|
23
09136-05061-000 SCREW(5X16)FC; 2005-10-01~ |
09136-05061-000 |
US $12.50 |
||
