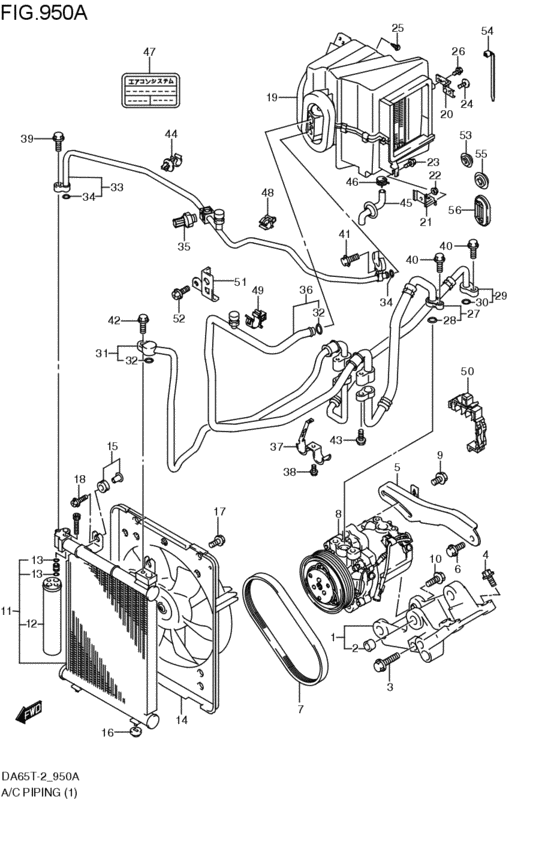

air-conditioner piping (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- N-PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95110-65H02-000 BRACKET,COMPRESSOR2008-01-01~ |
95110-65H02-000 |
US $59.25 |
||
|
2
|
2
11555-60G01-000 BUSH2008-01-01~ |
11555-60G01-000 |
US $3.68 |
||
|
3
|
3
01550-0840A-000 BOLT2008-01-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
01550-0825A-000 BOLT2008-01-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
5
|
5
95121-65H10-000 STAY,COMPRESSOR2008-01-01~ |
95121-65H10-000 |
US $17.92 |
||
|
6
|
6
01550-0820A-000 BOLTBolt, funnel bracket 2008-01-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
7
|
7
95141-67H00-000
V-belt(4pk 765)
2008-01-01~ |
95141-67H00-000 |
— | ||
| replacement | |||||
|
7
|
7
95141-67H10-000 V-BELT,4PK 7652008-01-01~ |
95141-67H10-000 |
from US $19.62 |
||
|
8
|
8
95200-58J21-000
COMPRESSOR ASSY
2008-01-01~ |
95200-58J21-000 |
— | ||
| replacement | |||||
|
8
|
8
95200-58J22-000
COMPRESSOR ASSY
2008-01-01~ |
95200-58J22-000 |
— | ||
|
9
|
9
01550-0820A-000 BOLTBolt, funnel bracket 2008-01-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
10
|
10
01550-0825A-000 BOLT2008-01-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
11
|
11
95310-67H00-000 CONDENSER ASSY2008-01-01~ |
95310-67H00-000 |
US $299.20 |
||
|
12
|
12
95330-78F21-000 RECEIVER DRYER2008-01-01~ |
95330-78F21-000 |
US $95.31 |
||
|
13
|
13
95891-50G00-000 O-RING,D:1.8 ID:6.72008-01-01~ |
95891-50G00-000 |
from US $0.96 |
||
|
14
|
14
95560-78A11-000 FAN ASSY,COND2008-01-01~ |
95560-78A11-000 |
US $137.60 |
||
|
15
|
15
95851-77A00-000 BUSH,COND2008-01-01~ |
95851-77A00-000 |
US $4.49 |
||
|
16
|
16
95852-77A10-000
ブッシュ,コンデンサ,ロア
2008-01-01~ |
95852-77A10-000 |
— | ||
|
17
|
17
01550-0616A-000 BOLT2008-01-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
18
|
18
02162-0625A-000 SCREW2008-01-01~ |
02162-0625A-000 |
from US $0.76 |
||
|
19
|
19
95400-67H00-000
クーリングユニット
2008-01-01~ |
95400-67H00-000 |
— | ||
| replacement | |||||
|
19
|
19
95400-67H03-000
COOLING UNIT
2008-01-01~ |
95400-67H03-000 |
— | ||
|
20
|
20
95491-78A00-000 STAY,UNIT&AIR INLET2008-01-01~ |
95491-78A00-000 |
US $4.05 |
||
|
21
|
21
95492-67H00-000 STAY,COOLING UNIT2008-01-01~ |
95492-67H00-000 |
US $2.43 |
||
|
22
|
22
09159-06081-000 NUT2008-01-01~ |
09159-06081-000 |
US $12.50 |
||
|
23
|
23
09122-76003-000 SCREW(6X16)Bolt (6x16) 2008-01-01~ |
09122-76003-000 |
US $11.80 |
||
|
24
|
24
03541-0512A-000 SCREW2008-01-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
25
|
25
03541-0516A-000 SCREW2008-01-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
26
|
26
09132-06008-000 SCREW(6X12)2008-01-01~ |
09132-06008-000 |
US $12.90 |
||
|
27
|
27
95710-83J00-000
ホース,サクション
2008-01-01~ |
95710-83J00-000 |
— | ||
| replacement | |||||
|
27
|
27
95710-83J01-000
New Genuine Part
2008-01-01~ |
95710-83J01-000 |
— | ||
|
28
|
28
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) 2008-01-01~ |
95896-50G00-000 |
US $1.28 |
||
|
29
|
29
95720-83J00-000
ホース,ディスチャージ
2008-01-01~ |
95720-83J00-000 |
— | ||
|
30
|
30
95895-50G00-000 O-RING,D:2.4 ID:10.82008-01-01~ |
95895-50G00-000 |
US $1.28 |
||
|
31
|
31
95721-83J00-000
パイプ,ディスチャージ
2008-01-01~ |
95721-83J00-000 |
— | ||
|
32
|
32
95895-50G00-000 O-RING,D:2.4 ID:10.82008-01-01~ |
95895-50G00-000 |
US $1.28 |
||
|
33
|
33
95732-67H10-000
パイプ,レシーバアウトレット
2008-01-01~ |
95732-67H10-000 |
— | ||
| replacement | |||||
|
33
|
33
95732-67H11-000
New Genuine Part
2008-01-01~ |
95732-67H11-000 |
— | ||
|
34
|
34
95891-50G00-000 O-RING,D:1.8 ID:6.72008-01-01~ |
95891-50G00-000 |
from US $0.96 |
||
|
35
|
35
95526-50G10-000
Switch, dual pressure
2008-01-01~ |
95526-50G10-000 |
— | ||
| replacement | |||||
|
35
|
35
95526-50G30-000 SWITCH,DUAL PRESSURE2008-01-01~ |
95526-50G30-000 |
US $44.84 |
||
|
36
|
36
95741-83J00-000
パイプ,サクション
2008-01-01~ |
95741-83J00-000 |
— | ||
| replacement | |||||
|
36
|
36
95741-83J01-000
New Genuine Part
2008-01-01~ |
95741-83J01-000 |
— | ||
|
37
|
37
95771-83J00-000
クランプ,パイプ
2008-01-01~ |
95771-83J00-000 |
— | ||
| replacement | |||||
|
37
|
37
95771-83J01-000
New Genuine Part
2008-01-01~ |
95771-83J01-000 |
— | ||
|
38
|
38
02162-0612A-000 SCREWBolt, bracket 2008-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
39
|
39
01550-0645A-000 Bolt2008-01-01~ |
01550-0645A-000 |
from US $0.96 |
||
|
40
|
40
01550-0620A-000 BOLT2008-01-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
41
|
41
01550-0620A-000 BOLT2008-01-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
42
|
42
01550-0620A-000 BOLT2008-01-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
43
|
43
01550-0620A-000 BOLT2008-01-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
44
|
44
09403-08314-000 CLAMP2008-01-01~ |
09403-08314-000 |
US $20.60 |
||
|
45
|
45
95481-78A00-000 HOSE,DRAIN2008-01-01~ |
95481-78A00-000 |
US $7.58 |
||
|
46
|
46
09401-13417-000 CLIP2008-01-01~ |
09401-13417-000 |
from US $1.60 |
||
|
47
|
47
95956-84GL0-000
ラベル,レフリジェラント
2008-01-01~ |
95956-84GL0-000 |
— | ||
| replacement | |||||
|
47
|
47
95956-84GL1-000
Discontinue
2008-01-01~ |
95956-84GL1-000 |
— | ||
|
48
|
48
09403-08321-000 CLAMP2008-01-01~ |
09403-08321-000 |
US $1.76 |
||
|
49
|
49
09403-14315-000 CLAMPClamp, harness 2008-01-01~ |
09403-14315-000 |
US $17.70 |
||
|
50
|
50
09403-14313-000 CLAMP2008-01-01~ |
09403-14313-000 |
US $2.40 |
||
|
51
|
51
95782-67H00-000
ステー,パイプクランプ
2008-01-01~ |
95782-67H00-000 |
— | ||
|
52
|
52
02162-0610A-000 SCREW2008-01-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
53
|
53
09250-20015-000 CAP(OD:28.5)Cap, air con harness 2008-01-01~ |
09250-20015-000 |
from US $0.79 |
||
|
54
|
54
09407-11401-000 CLAMP(L:95)Clamp, stator lead 2008-01-01~ |
09407-11401-000 |
from US $1.76 |
||
|
55
|
55
09250-25007-000 CAP(OD:25.0)2008-01-01~ |
09250-25007-000 |
from US $0.97 |
||
|
56
|
56
95831-78A00-000 GROMMET,A/C HOLE2008-01-01~ |
95831-78A00-000 |
US $3.84 |
||
