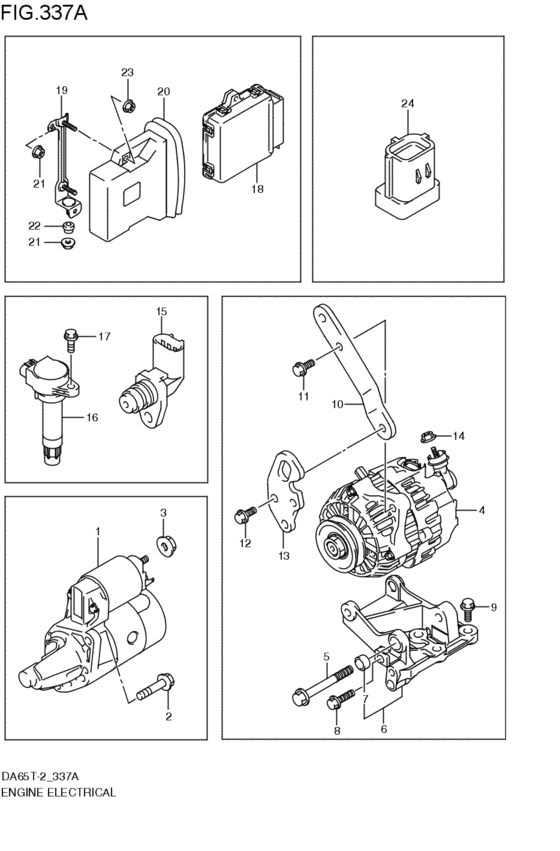

engine electrical (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- N-PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-68H00-000
Motor assy,starting
2008-01-01~ |
31100-68H00-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-68H01-000 MOTOR ASSY,STARTING2008-01-01~ |
31100-68H01-000 |
US $464.64 |
||
|
2
|
2
01550-0830A-000 BOLTBolt, mount oil seal cover 2008-01-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
3
|
3
08316-1008A-000 NUTNut, idle gear shaft 2008-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
4
|
4
31400-76J00-000
Generator assy
2008-01-01~ |
31400-76J00-000 |
— | ||
| replacement | |||||
|
4
|
4
31400-76J02-000
GENERATOR ASSY
2008-01-01~ |
31400-76J02-000 |
— | ||
|
5
|
5
01550-1095A-000 Bolt2008-01-01~ |
01550-1095A-000 |
US $24.70 |
||
|
6
|
6
95110-65H02-000 BRACKET,COMPRESSOR2008-01-01~ |
95110-65H02-000 |
US $59.25 |
||
|
7
|
7
11555-60G01-000 BUSH2008-01-01~ |
11555-60G01-000 |
US $3.68 |
||
|
8
|
8
01550-0840A-000 BOLT2008-01-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
9
|
9
01550-0825A-000 BOLT2008-01-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
10
|
10
11561-65H00-000 ARM,GENERATOR2008-01-01~ |
11561-65H00-000 |
US $11.89 |
||
|
11
|
11
01550-0825A-000 BOLT2008-01-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
12
|
12
01550-0825A-000 BOLT2008-01-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
13
|
13
11851-67H30-000 HOOK,ENGINE2008-01-01~ |
11851-67H30-000 |
US $7.29 |
||
|
14
|
14
08316-1006A-000 NUT2008-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
15
|
15
33220-58J11-000 SENSOR ASSY,CAM POSITION2008-01-01~ |
33220-58J11-000 |
US $147.20 |
||
|
16
|
16
33400-76G21-000
Coil assy,ignition
DENSO; 2008-01-01~ |
33400-76G21-000 |
— | ||
| replacement | |||||
|
16
|
16
33400-85K10-000 COIL ASSY,IGNITION DEDENSO; 2008-01-01~ |
33400-85K10-000 |
US $226.48 |
||
|
16
|
16
33400-76G30-000
Coil assy,ignition
ミツビシ; 2008-01-01~ |
33400-76G30-000 |
— | ||
| replacement | |||||
|
16
|
16
33400-85K10-000 COIL ASSY,IGNITION DEミツビシ; 2008-01-01~ |
33400-85K10-000 |
US $226.48 |
||
|
17
|
17
09135-06024-000 BOLT(6X23)2008-01-01~ |
09135-06024-000 |
US $12.50 |
||
|
18
|
18
33920-83J01-000
コントローラアッシ,インジェクション
2008-01-01~ |
33920-83J01-000 |
— | ||
|
19
|
19
33924-67H00-000 BRACKET,EPI CONT2008-01-01~ |
33924-67H00-000 |
US $8.83 |
||
|
20
|
20
33925-67H00-000 COVER,EPI CONT2008-01-01~ |
33925-67H00-000 |
US $18.11 |
||
|
21
|
21
09159-06076-000 NUT2008-01-01~ |
09159-06076-000 |
from US $1.28 |
||
|
22
|
22
34955-60E00-000 BUSH2008-01-01~ |
34955-60E00-000 |
US $2.40 |
||
|
23
|
23
08316-1006A-000 NUT2008-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
24
|
24
33926-78AA0-000 RESISTOR,IGT NO.10マ-ク 10; 2008-01-01~ |
33926-78AA0-000 |
US $8 |
||
|
24
|
24
33926-78AB0-000 RESISTOR,IGT NO.11マ-ク 11; 2008-01-01~ |
33926-78AB0-000 |
US $9.35 |
||
|
24
|
24
33926-78A01-000 RESISTOR,IGT NO.Nマ-ク N; 2008-01-01~ |
33926-78A01-000 |
US $9.35 |
||
|
24
|
24
33926-78A10-000 RESISTOR,IGT NO.1マ-ク 1; 2008-01-01~ |
33926-78A10-000 |
US $9.35 |
||
|
24
|
24
33926-78A20-000 RESISTOR,IGT NO.2マ-ク 2; 2008-01-01~ |
33926-78A20-000 |
US $9.35 |
||
|
24
|
24
33926-78A30-000 RESISTOR,IGT NO.3マ-ク 3; 2008-01-01~ |
33926-78A30-000 |
US $9.35 |
||
|
24
|
24
33926-78A40-000 RESISTOR,IGT NO.4マ-ク 4; 2008-01-01~ |
33926-78A40-000 |
US $9.35 |
||
|
24
|
24
33926-78A50-000 RESISTOR,IGT NO.5マ-ク 5; 2008-01-01~ |
33926-78A50-000 |
US $9.35 |
||
|
24
|
24
33926-78A60-000 RESISTOR,IGT NO.6マ-ク 6; 2008-01-01~ |
33926-78A60-000 |
US $9.35 |
||
|
24
|
24
33926-78A70-000 RESISTOR,IGT NO.7マ-ク 7; 2008-01-01~ |
33926-78A70-000 |
US $6.65 |
||
|
24
|
24
33926-78A80-000 RESISTOR,IGT NO.8マ-ク 8; 2008-01-01~ |
33926-78A80-000 |
US $9.35 |
||
|
24
|
24
33926-78A90-000 RESISTOR,IGT NO.9マ-ク 9; 2008-01-01~ |
33926-78A90-000 |
US $9.35 |
||
