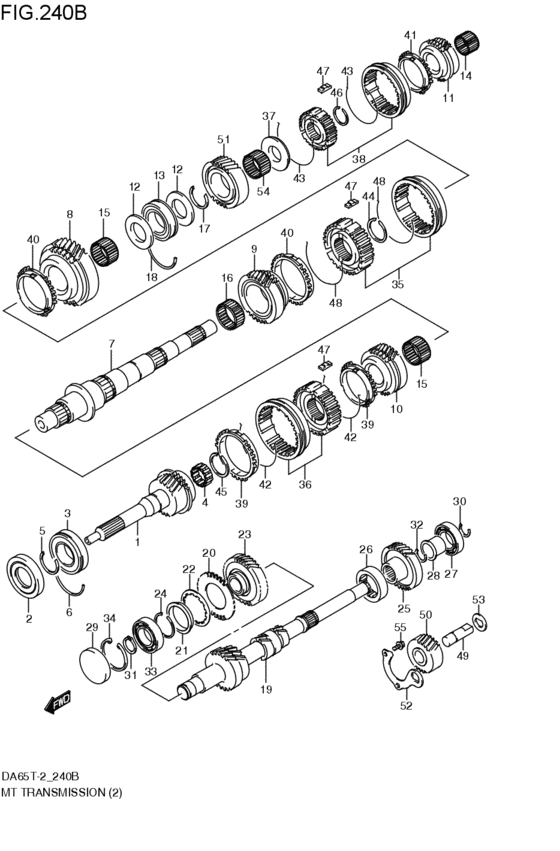

mt - transmission gear (4WD; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- N-PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-60H00-000 SHAFT,T/M INPUT4WD; 2008-01-01~ |
24110-60H00-000 |
US $337.60 |
||
|
2
|
2
24151-78A20-000 SEAL,INPUT SHAFT OIL4WD; 2008-01-01~ |
24151-78A20-000 |
from US $10.35 |
||
|
3
|
3
09262-25129-000 BEARING(25X52X15)4WD; 2008-01-01~ |
09262-25129-000 |
US $45.60 |
||
|
4
|
4
09263-20056-000 BEARING(20X26X17)4WD; 2008-01-01~ |
09263-20056-000 |
from US $8.64 |
||
|
5
|
5
09380-25011-000 RING,SNAP4WD; 2008-01-01~ |
09380-25011-000 |
from US $1.04 |
||
|
6
|
6
09390-52006-000 C RING4WD; 2008-01-01~ |
09390-52006-000 |
US $19.10 |
||
|
7
|
7
24121-66H40-000 SHAFT,T/M MAIN4WD; 2008-01-01~ |
24121-66H40-000 |
US $358.40 |
||
|
8
|
8
24211-78A20-000 GEAR,MAIN SFT LOW4WD; 2008-01-01~ |
24211-78A20-000 |
US $168.91 |
||
|
9
|
9
24221-78A21-000 GEAR,MAIN SFT 2ND4WD; 2008-01-01~ |
24221-78A21-000 |
US $251.20 |
||
|
10
|
10
24231-81A80-000 GEAR,MAIN SFT 3RD4WD; 2008-01-01~ |
24231-81A80-000 |
US $151.62 |
||
|
11
|
11
24250-81A82-000 GEAR,MAIN SFT 5TH4WD; 2008-01-01~ |
24250-81A82-000 |
US $111.87 |
||
|
12
|
12
24271-78A20-000 WASHER,MAIN SFT BEARING4WD; 2008-01-01~ |
24271-78A20-000 |
US $14.87 |
||
|
13
|
13
09262-27002-000
Bearing,27x55x13
4WD; 2008-01-01~ |
09262-27002-000 |
— | ||
| replacement | |||||
|
13
|
13
09262-27001-000 BEARING(27X55X13)4WD; 2008-01-01~ |
09262-27001-000 |
US $61.60 |
||
|
14
|
14
09263-22059-000 BEARING(22X26X22.8)4WD; 2008-01-01~ |
09263-22059-000 |
US $26.40 |
||
|
15
|
15
09263-30032-000 BEARING(30X35X21)4WD; 2008-01-01~ |
09263-30032-000 |
US $21.60 |
||
|
16
|
16
09263-35033-000 BEARING(35X40X21.8)4WD; 2008-01-01~ |
09263-35033-000 |
US $20 |
||
|
17
|
17
09380-27005-000 CIRCLIP4WD; 2008-01-01~ |
09380-27005-000 |
US $30.20 |
||
|
18
|
18
09390-55004-000 C RING4WD; 2008-01-01~ |
09390-55004-000 |
US $25.80 |
||
|
19
|
19
24131-79A43-000 SHAFT,T/M COUNTER4WD; 2008-01-01~ |
24131-79A43-000 |
US $401.28 |
||
|
20
|
20
24137-80F00-000 GEAR,T/M FRICTION4WD; 2008-01-01~ |
24137-80F00-000 |
US $30.73 |
||
|
21
|
21
24138-80F01-000 RETAINER,T/M FRICTION GEAR4WD; 2008-01-01~ |
24138-80F01-000 |
US $20.79 |
||
|
22
|
22
24139-80F00-000 SPRING,T/M FRICTION GEAR4WD; 2008-01-01~ |
24139-80F00-000 |
US $20 |
||
|
23
|
23
24371-80F01-000 GEAR,CTSHFT DRIVE4WD; 2008-01-01~ |
24371-80F01-000 |
US $96.42 |
||
|
24
|
24
24451-60B00-000 CIRCLIP4WD; 2008-01-01~ |
24451-60B00-000 |
from US $1.60 |
||
|
25
|
25
24351-67H40-000 GEAR,CTSHFT 5TH4WD; 2008-01-01~ |
24351-67H40-000 |
US $101.57 |
||
|
26
|
26
24381-78A21-000 BEARING,COUNTER SHAFT CTR4WD; 2008-01-01~ |
24381-78A21-000 |
US $48 |
||
|
27
|
27
24392-77A00-000 BEARING,COUNTER SHAFT,R4WD; 2008-01-01~ |
24392-77A00-000 |
US $31.20 |
||
|
28
|
28
24392-79A40-000 BUSH,COUNTERSHAFT RR BRG4WD; 2008-01-01~ |
24392-79A40-000 |
US $56.30 |
||
|
29
|
29
09241-47002-000
PLUG
4WD; 2008-01-01~ |
09241-47002-000 |
— | ||
| replacement | |||||
|
29
|
29
09241-47009-000 PLUG4WD; 2008-01-01~ |
09241-47009-000 |
US $4.10 |
||
|
30
|
30
09380-17008-000 CIRCLIP4WD; 2008-01-01~ |
09380-17008-000 |
US $1.92 |
||
|
31
|
31
09380-19004-000 RING,SNAP4WD; 2008-01-01~ |
09380-19004-000 |
from US $1.64 |
||
|
32
|
32
09380-22010-000 CIRCLIP4WD; 2008-01-01~ |
09380-22010-000 |
US $1.92 |
||
|
33
|
33
09262-20069-000 BEARING(20X47X14)4WD; 2008-01-01~ |
09262-20069-000 |
from US $11.52 |
||
|
34
|
34
08331-41479-000 CIRCLIP4WD; 2008-01-01~ |
08331-41479-000 |
from US $2.56 |
||
|
35
|
35
24400-78A20-000 HUB ASSY,LOW SPEED SYNC4WD; 2008-01-01~ |
24400-78A20-000 |
US $294.40 |
||
|
36
|
36
24410-78A20-000 HUB ASSY,HIGH SPEED SYNC4WD; 2008-01-01~ |
24410-78A20-000 |
US $342.40 |
||
|
37
|
37
24417-78A22-000 PLATE,5TH SYNC HUB4WD; 2008-01-01~ |
24417-78A22-000 |
US $7.51 |
||
|
38
|
38
24420-78A21-000 HUB ASSY,5TH SPEED SYNC4WD; 2008-01-01~ |
24420-78A21-000 |
from US $223.56 |
||
|
39
|
39
24431-63B20-000 RING,2ND GEAR SYNC4WD; 2008-01-01~ |
24431-63B20-000 |
from US $20.45 |
||
|
40
|
40
24431-85020-000 RING,LOW SPEED SYNC4WD; 2008-01-01~ |
24431-85020-000 |
US $72.80 |
||
|
41
|
41
24432-73D00-000 RING,HIGH SPEED SYNC4WD; 2008-01-01~ |
24432-73D00-000 |
US $57.60 |
||
|
42
|
42
24441-60B00-000 SPRING,LOW SPEED SYNC4WD; 2008-01-01~ |
24441-60B00-000 |
from US $1.58 |
||
|
43
|
43
24443-80F00-000 SPRING,5TH SYNC4WD; 2008-01-01~ |
24443-80F00-000 |
US $1.60 |
||
|
44
|
44
24451-60B00-000 CIRCLIP4WD; 2008-01-01~ |
24451-60B00-000 |
from US $1.60 |
||
|
45
|
45
24452-60B00-000 CIRCLIP,HIGH SPEED SYNC HUB4WD; 2008-01-01~ |
24452-60B00-000 |
from US $1.60 |
||
|
46
|
46
24453-78A21-000 CIRCLIP,SYNC HUB4WD; 2008-01-01~ |
24453-78A21-000 |
US $2.65 |
||
|
47
|
47
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync 4WD; 2008-01-01~ |
24472-60B00-000 |
from US $1.92 |
||
|
48
|
48
09388-00020-000 SPRING4WD; 2008-01-01~ |
09388-00020-000 |
US $1.82 |
||
|
49
|
49
24551-85051-000 SHAFT,REVERSE IDLE GEAR4WD; 2008-01-01~ |
24551-85051-000 |
US $32 |
||
|
50
|
50
24560-78A60-000 GEAR,REV IDLE4WD; 2008-01-01~ |
24560-78A60-000 |
US $114.40 |
||
|
51
|
51
24681-78A21-000 GEAR,MAIN SFT REV4WD; 2008-01-01~ |
24681-78A21-000 |
US $188.80 |
||
|
52
|
52
25482-78A20-000 PLATE,REV GEAR SHAFT STOP4WD; 2008-01-01~ |
25482-78A20-000 |
US $9.44 |
||
|
53
|
53
09166-14012-000 WASHER4WD; 2008-01-01~ |
09166-14012-000 |
US $1.12 |
||
|
54
|
54
09263-27011-000 BEARING(27X32X23.8)4WD; 2008-01-01~ |
09263-27011-000 |
US $9.28 |
||
|
55
|
55
01570-0616A-000 Bolt4WD; 2008-01-01~ |
01570-0616A-000 |
from US $0.80 |
||
