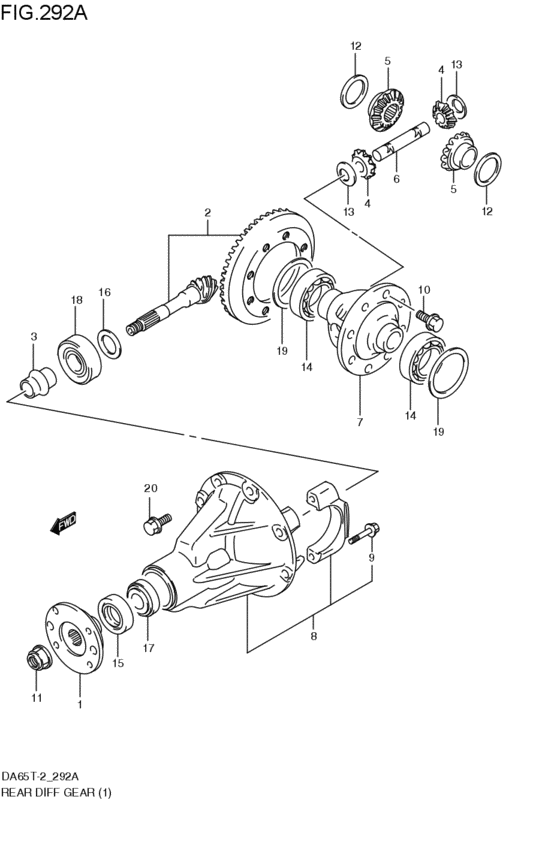

リヤデファレンシャルギヤ (FC; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- N-PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-70D10-000 FLANGE,UNIVERSAL JOINTFC; 2008-01-01~ |
27110-70D10-000 |
US $46.40 |
||
|
2
|
2
27300-71830-000
Bevel pinion & gear set
FC:4WD; 2008-01-01~ |
27300-71830-000 |
— | ||
| replacements | |||||
|
2
|
2
27300-71832-000 BEVEL PINION & GEAR SETFC:4WD; 2008-01-01~ |
27300-71832-000 |
US $1,041.60 |
||
|
2
|
2
09159-16021-000 NUTFC:4WD; 2008-01-01~ |
09159-16021-000 |
US $4.96 |
||
|
3
|
3
27315-67H10-000 SPACER,DRIVE BEVEL PINIONFC; 2008-01-01~ |
27315-67H10-000 |
US $20 |
||
|
4
|
4
27331-76A20-000
PINION,DIFFERENTIAL
FC; 2008-01-01~ |
27331-76A20-000 |
— | ||
| replacement | |||||
|
4
|
4
27331-76A21-000 Pinion,differentialFC; 2008-01-01~ |
27331-76A21-000 |
from US $43.75 |
||
|
5
|
5
27341-76A20-000
Gear,differential
FC; 2008-01-01~ |
27341-76A20-000 |
— | ||
| replacements | |||||
|
5
|
5
27341-76A21-000
GEAR,DIFF
FC; 2008-01-01~ |
27341-76A21-000 |
— | ||
|
5
|
5
27341-76A22-000 Gear,diffFC; 2008-01-01~ |
27341-76A22-000 |
from US $55.28 |
||
|
6
|
6
27351-78A02-000 SHAFT,DIFF PINIONFC; 2008-01-01~ |
27351-78A02-000 |
US $24 |
||
|
7
|
7
27411-60C83-000 CASE,DIFFFC; 2008-01-01~ |
27411-60C83-000 |
US $193.20 |
||
|
8
|
8
27450-71D02-000 CARRIER ASSY,DIFFFC; 2008-01-01~ |
27450-71D02-000 |
US $264.96 |
||
|
9
|
9
09111-08082-000 BOLT(8X49.5)FC; 2008-01-01~ |
09111-08082-000 |
US $18.40 |
||
|
10
|
10
09103-10309-000 BOLT(10X16)FC; 2008-01-01~ |
09103-10309-000 |
US $1.67 |
||
|
11
|
11
09159-16018-000 NUTFC; 2008-01-01~ |
09159-16018-000 |
US $2.24 |
||
|
12
|
12
09160-35002-000 WASHER(35X46X1)FC; 2008-01-01~ |
09160-35002-000 |
from US $5.46 |
||
|
12
|
12
09160-35003-000 WASHER(35X46X1.1)FC; 2008-01-01~ |
09160-35003-000 |
from US $2.24 |
||
|
12
|
12
09160-35004-000 WASHER(35X46X1.2)FC; 2008-01-01~ |
09160-35004-000 |
US $2.24 |
||
|
12
|
12
09160-35006-000 WASHER(35X46X0.9)FC; 2008-01-01~ |
09160-35006-000 |
from US $2.24 |
||
|
12
|
12
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) FC; 2008-01-01~ |
09160-35008-000 |
from US $6.70 |
||
|
12
|
12
09160-35009-000 WASHER(35X46X1.05)FC; 2008-01-01~ |
09160-35009-000 |
from US $6.70 |
||
|
12
|
12
09160-35010-000 WASHER(35X46X1.15)FC; 2008-01-01~ |
09160-35010-000 |
from US $6.49 |
||
|
13
|
13
09164-15006-000 WASHERFC; 2008-01-01~ |
09164-15006-000 |
US $1.67 |
||
|
14
|
14
09262-35057-000 BEARING(35X72X17)FC; 2008-01-01~ |
09262-35057-000 |
US $18.40 |
||
|
15
|
15
09283-28027-000 SEAL,OIL(28X47X9)FC; 2008-01-01~ |
09283-28027-000 |
US $7.45 |
||
|
16
|
16
09181-25031-000 SHIM(25.5X31.5X0.3)FC; 2008-01-01~ |
09181-25031-000 |
US $16.20 |
||
|
16
|
16
09181-25139-000 SHIM(25X32X1)Washer, shift cam spring FC; 2008-01-01~ |
09181-25139-000 |
from US $4.52 |
||
|
16
|
16
09181-25140-000 SHIM(25X32X1.03)FC; 2008-01-01~ |
09181-25140-000 |
US $16.20 |
||
|
16
|
16
09181-25142-000 SHIM(25X32X1.06)FC; 2008-01-01~ |
09181-25142-000 |
US $16.20 |
||
|
16
|
16
09181-25143-000 SHIM(25X32X1.09)FC; 2008-01-01~ |
09181-25143-000 |
from US $4.76 |
||
|
16
|
16
09181-25145-000 SHIM(25X32X1.12)FC; 2008-01-01~ |
09181-25145-000 |
US $1.60 |
||
|
16
|
16
09181-25146-000 SHIM(25X32X1.15)FC; 2008-01-01~ |
09181-25146-000 |
US $16.20 |
||
|
16
|
16
09181-25147-000 SHIM(25X32X1.18)FC; 2008-01-01~ |
09181-25147-000 |
US $16.20 |
||
|
16
|
16
09181-25149-000 SHIM(25X32X1.21)FC; 2008-01-01~ |
09181-25149-000 |
from US $4.76 |
||
|
16
|
16
09181-25150-000 SHIM(25X32X1.24)FC; 2008-01-01~ |
09181-25150-000 |
US $16.20 |
||
|
16
|
16
09181-25152-000 SHIM(25X32X1.27)FC; 2008-01-01~ |
09181-25152-000 |
US $16.20 |
||
|
16
|
16
09181-25153-000 SHIM(25X32X1.3)FC; 2008-01-01~ |
09181-25153-000 |
US $16.20 |
||
|
17
|
17
09265-20001-000 BEARING(20X47X15.25)FC; 2008-01-01~ |
09265-20001-000 |
US $16.80 |
||
|
18
|
18
09265-25037-000 BEARING(25X62X25.25)FC; 2008-01-01~ |
09265-25037-000 |
US $70.40 |
||
|
19
|
19
27453-53F10-220 SHIM,T:2.20FC; 2008-01-01~ |
27453-53F10-220 |
US $9.38 |
||
|
19
|
19
27453-53F10-225 SHIM,T:2.25FC; 2008-01-01~ |
27453-53F10-225 |
US $9.38 |
||
|
19
|
19
27453-53F10-230 SHIM,T:2.30FC; 2008-01-01~ |
27453-53F10-230 |
US $9.38 |
||
|
19
|
19
27453-53F10-235 SHIM,T:2.35FC; 2008-01-01~ |
27453-53F10-235 |
US $9.38 |
||
|
19
|
19
27453-53F10-240 SHIM,T:2.40FC; 2008-01-01~ |
27453-53F10-240 |
US $9.38 |
||
|
19
|
19
27453-53F10-245 SHIM,T:2.45FC; 2008-01-01~ |
27453-53F10-245 |
US $9.38 |
||
|
19
|
19
27453-53F10-250 SHIM,T:2.50FC; 2008-01-01~ |
27453-53F10-250 |
US $10.56 |
||
|
19
|
19
27453-53F10-255 SHIM,T:2.55FC; 2008-01-01~ |
27453-53F10-255 |
US $9.38 |
||
|
19
|
19
27453-53F10-260 SHIM,T:2.60FC; 2008-01-01~ |
27453-53F10-260 |
US $9.38 |
||
|
19
|
19
27453-53F10-265 SHIM,T:2.65FC; 2008-01-01~ |
27453-53F10-265 |
US $9.38 |
||
|
19
|
19
27453-53F10-270 SHIM,T:2.70FC; 2008-01-01~ |
27453-53F10-270 |
US $10.56 |
||
|
19
|
19
27453-53F10-275 SHIM,T:2.75FC; 2008-01-01~ |
27453-53F10-275 |
US $9.38 |
||
|
19
|
19
27453-53F10-280 SHIM,T:2.80FC; 2008-01-01~ |
27453-53F10-280 |
US $9.38 |
||
|
19
|
19
27453-53F10-285 SHIM,T:2.85FC; 2008-01-01~ |
27453-53F10-285 |
US $9.38 |
||
|
20
|
20
09112-08011-000 BOLT(8X25)FC; 2008-01-01~ |
09112-08011-000 |
US $19.50 |
||
