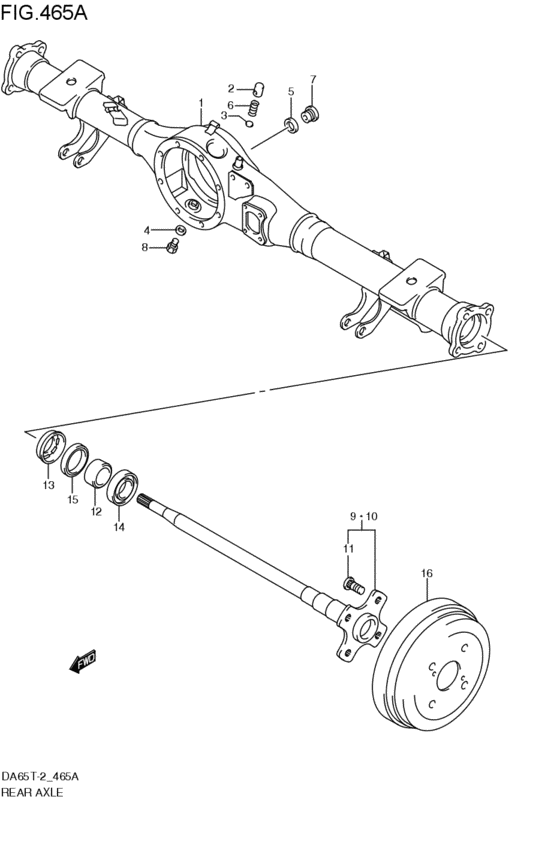

rear axle (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- N-PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46510-83J50-000
ハウジング,リヤアクスル
FC; 2008-01-01~ |
46510-83J50-000 |
— | ||
|
2
|
2
46541-52002-000 CAP,BREATHER2008-01-01~ |
46541-52002-000 |
US $1.60 |
||
|
3
|
3
46542-52000-000
VALVE,BREATHER
2008-01-01~ |
46542-52000-000 |
— | ||
| replacement | |||||
|
3
|
3
46542-52001-000 VALVE,RR AXLE HSG BREATHER2008-01-01~ |
46542-52001-000 |
US $1.60 |
||
|
4
|
4
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket 2008-01-01~ |
09168-12002-000 |
from US $0.76 |
||
|
5
|
5
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) 2008-01-01~ |
09168-20003-000 |
from US $2.28 |
||
|
6
|
6
09440-12004-000 SPRING2008-01-01~ |
09440-12004-000 |
US $1.28 |
||
|
7
|
7
09248-20003-000 PLUG2008-01-01~ |
09248-20003-000 |
from US $5.17 |
||
|
8
|
8
09247-12003-000 PLUGPlug (12x13) 2008-01-01~ |
09247-12003-000 |
US $0.96 |
||
|
9
|
9
44210-83850-000
シャフトセット,リヤアクスルライト
ライト; 2008-01-01~ |
44210-83850-000 |
— | ||
|
10
|
10
44220-83850-000
シャフトセット,リヤアクスルレフト
レフト; FC; 2008-01-01~ |
44220-83850-000 |
— | ||
|
11
|
11
09119-12012-000 BOLT(12X38)2008-01-01~ |
09119-12012-000 |
US $2.72 |
||
|
12
|
12
43485-67H00-000 RING,RR WHEEL BRG RETAINER2008-01-01~ |
43485-67H00-000 |
US $28.80 |
||
|
13
|
13
43588-73000-000 PROTECTOR,OIL SEAL2008-01-01~ |
43588-73000-000 |
from US $1.52 |
||
|
14
|
14
46860-67H00-000 BEARING,RR WHEEL2008-01-01~ |
46860-67H00-000 |
US $60 |
||
|
15
|
15
09282-48006-000 SEAL,OIL(46X62X9)2008-01-01~ |
09282-48006-000 |
US $11.36 |
||
|
16
|
16
43511-67H01-000
DRUM,BRAKE RR
2008-01-01~ |
43511-67H01-000 |
— | ||
| replacement | |||||
|
16
|
16
43511-67H02-000 DRUM,BRAKE RR2008-01-01~ |
43511-67H02-000 |
US $155.20 |
||
