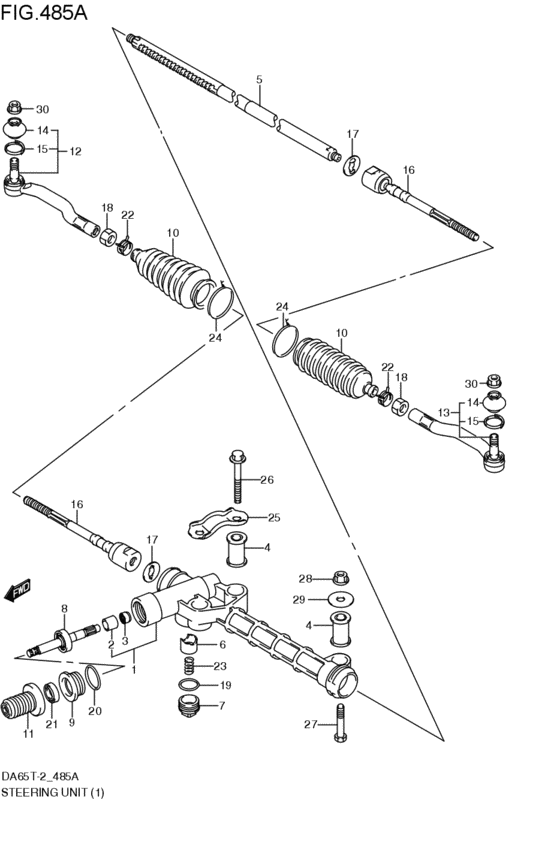

steering unit (N-PS; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- N-PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48500-67810-000 CASE,STRG GEARN-PS; 2008-01-01~ |
48500-67810-000 |
US $236.80 |
||
|
2
|
2
48553-77A00-000 BUSH,STEERING PINIONN-PS; 2008-01-01~ |
48553-77A00-000 |
US $4.56 |
||
|
3
|
3
48555-74F00-000 BEARING,STEERING PINION NDLN-PS; 2008-01-01~ |
48555-74F00-000 |
US $15.68 |
||
|
4
|
4
48525-67H00-000 BUSHING,STEERING GEAR BOXN-PS; 2008-01-01~ |
48525-67H00-000 |
US $8.80 |
||
|
5
|
5
48531-83J00-000
ラック,ステアリング,ライト
N-PS; 2008-01-01~ |
48531-83J00-000 |
— | ||
|
6
|
6
48534-67H00-000 PLUNGER,STEERING RACKN-PS; 2008-01-01~ |
48534-67H00-000 |
US $28 |
||
|
7
|
7
48535-67H00-000 SCREW,RACK DAMPERN-PS; 2008-01-01~ |
48535-67H00-000 |
US $8.76 |
||
|
8
|
8
48550-83J00-000
ピニオン,ステアリング,ライト
N-PS; 2008-01-01~ |
48550-83J00-000 |
— | ||
|
9
|
9
48562-82000-000
Plug, pinion bearing
N-PS; 2008-01-01~ |
48562-82000-000 |
— | ||
| replacement | |||||
|
9
|
9
48562-82K00-000 PLUG,PINION BEARINGN-PS; 2008-01-01~ |
48562-82K00-000 |
US $11.20 |
||
|
10
|
10
48571-58J00-000 BOOT,STEERING PINION SIDEN-PS; 2008-01-01~ |
48571-58J00-000 |
US $17.08 |
||
|
11
|
11
48581-77A00-000 COVER,STRG GEAR CASEN-PS; 2008-01-01~ |
48581-77A00-000 |
US $6 |
||
|
12
|
12
48810-68H00-000
エンド,ステアリングタイロッド,ライト
N-PS; 2008-01-01~ |
48810-68H00-000 |
— | ||
| replacements | |||||
|
12
|
12
09140-12039-000 NUTN-PS; 2008-01-01~ |
09140-12039-000 |
from US $1.76 |
||
|
12
|
12
09385-12002-000 PIN,SNAPN-PS; 2008-01-01~ |
09385-12002-000 |
US $1.28 |
||
|
12
|
12
48810-68H01-000 END,STEERING TIE-ROD,RN-PS; 2008-01-01~ |
48810-68H01-000 |
US $64.80 |
||
|
13
|
13
48820-68H00-000
エンド,ステアリングタイロッド,レフト
N-PS; 2008-01-01~ |
48820-68H00-000 |
— | ||
| replacements | |||||
|
13
|
13
09140-12039-000 NUTN-PS; 2008-01-01~ |
09140-12039-000 |
from US $1.76 |
||
|
13
|
13
09385-12002-000 PIN,SNAPN-PS; 2008-01-01~ |
09385-12002-000 |
US $1.28 |
||
|
13
|
13
48820-68H01-000 END,STEERING TIE-ROD,LN-PS; 2008-01-01~ |
48820-68H01-000 |
US $64.80 |
||
|
14
|
14
48819-60B00-000
BOOT SET
N-PS; 2008-01-01~ |
48819-60B00-000 |
— | ||
| replacements | |||||
|
14
|
14
48819-60B01-000
Boot Set
N-PS; 2008-01-01~ |
48819-60B01-000 |
— | ||
|
14
|
14
48800-60810-000 Boot SetN-PS; 2008-01-01~ |
48800-60810-000 |
US $19.20 |
||
|
15
|
15
09401-23402-000 CLIPN-PS; 2008-01-01~ |
09401-23402-000 |
US $1.76 |
||
|
16
|
16
48830-67H00-000
Tie-rod comp,steering
N-PS; 2008-01-01~ |
48830-67H00-000 |
— | ||
| replacement | |||||
|
16
|
16
48830-67H01-000 TIE-ROD,STRGN-PS; 2008-01-01~ |
48830-67H01-000 |
US $123.20 |
||
|
17
|
17
48841-77A00-000 WASHER,STEERING TIE ROD LOCKN-PS; 2008-01-01~ |
48841-77A00-000 |
US $3.20 |
||
|
18
|
18
09140-12030-000 NUTNut, tie rod (rh thread) N-PS; 2008-01-01~ |
09140-12030-000 |
from US $1.76 |
||
|
19
|
19
09280-28002-000 O RING(D:1.9,ID:27.7)N-PS; 2008-01-01~ |
09280-28002-000 |
from US $1.82 |
||
|
20
|
20
09280-34003-000 O RING(D:2,ID:34.1)N-PS; 2008-01-01~ |
09280-34003-000 |
US $1.76 |
||
|
21
|
21
09283-17024-000 SEAL,OIL(17X25X5)N-PS; 2008-01-01~ |
09283-17024-000 |
US $3.28 |
||
|
22
|
22
09401-16403-000 CLIPClip, 2nd air hose no.2 N-PS; 2008-01-01~ |
09401-16403-000 |
from US $3.86 |
||
|
23
|
23
09440-19011-000 SPRINGN-PS; 2008-01-01~ |
09440-19011-000 |
US $14.40 |
||
|
24
|
24
09460-01028-000 WIREN-PS; 2008-01-01~ |
09460-01028-000 |
US $13.20 |
||
|
25
|
25
48521-67H00-000
Bracket,steering pinion side
N-PS; 2008-01-01~ |
48521-67H00-000 |
— | ||
| replacement | |||||
|
25
|
25
48521-82M00-000 BRACKET,STRG PINION SIDEN-PS; 2008-01-01~ |
48521-82M00-000 |
US $5.15 |
||
|
26
|
26
48528-68H01-000 BOLT,SPNSN ARM RRN-PS; 2008-01-01~ |
48528-68H01-000 |
US $3.81 |
||
|
27
|
27
48528-83J00-000
ボルト,ステアリングギヤボックス
N-PS; 2008-01-01~ |
48528-83J00-000 |
— | ||
|
28
|
28
09159-12068-000 NUTN-PS; 2008-01-01~ |
09159-12068-000 |
from US $1.76 |
||
|
29
|
29
09160-12079-000 WASHER(12.2X40X2.6)N-PS; 2008-01-01~ |
09160-12079-000 |
US $1.28 |
||
|
30
|
30
09159-12053-000 NUTN-PS; 2008-01-01~ |
09159-12053-000 |
US $18 |
||
