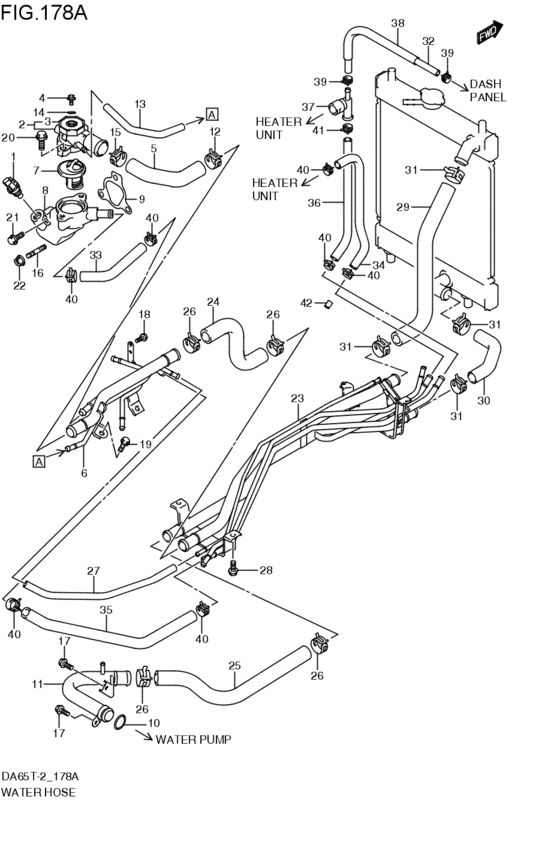

water hose (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- N-PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-67H00-000 Sensor,water Temp2008-01-01~ |
13650-67H00-000 |
US $68 |
||
|
2
|
2
17560-67H01-000
キャップ,ウォータサーモスタツト
2008-01-01~ |
17560-67H01-000 |
— | ||
| replacement | |||||
|
2
|
2
17560-67H02-000 CAP,WATER THERMOSTAT2008-01-01~ |
17560-67H02-000 |
US $163.20 |
||
|
3
|
3
17561-68H00-000
Cap,wtr pressure (1.1)
2008-01-01~ |
17561-68H00-000 |
— | ||
| replacement | |||||
|
3
|
3
17561-68H10-000 CAP,WTR PRESSURE 1.12008-01-01~ |
17561-68H10-000 |
US $16.30 |
||
|
4
|
4
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover 2008-01-01~ |
17568-50F00-000 |
from US $2.08 |
||
|
5
|
5
17575-67H00-000 HOSE,WATER ENG OUTLET2008-01-01~ |
17575-67H00-000 |
US $14.72 |
||
|
6
|
6
17580-67H02-000 PIPE,WTR OUTLET2008-01-01~ |
17580-67H02-000 |
US $73.72 |
||
|
7
|
7
17670-67H00-000
Thermostat,water(88?c)
2008-01-01~ |
17670-67H00-000 |
— | ||
| replacement | |||||
|
7
|
7
17670-67H01-000 THERMOSTAT,WATER 88 DEG2008-01-01~ |
17670-67H01-000 |
from US $20.23 |
||
|
8
|
8
17690-67H00-000 CASE,WATER THERMOSTAT2008-01-01~ |
17690-67H00-000 |
US $91.63 |
||
|
9
|
9
17699-73G01-000 GASKET,THERMOSTAT CASEGasket, thermostat case 2008-01-01~ |
17699-73G01-000 |
from US $3.74 |
||
|
10
|
10
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe 2008-01-01~ |
17849-53E00-000 |
from US $1.52 |
||
|
11
|
11
17850-65H01-000
PIPE,WATER INLET
2008-01-01~ |
17850-65H01-000 |
— | ||
|
12
|
12
09402-32502-000 CLAMP2008-01-01~ |
09402-32502-000 |
US $62.90 |
||
|
13
|
13
17936-67H00-000 HOSE,RSVR CAP TO PIPE2008-01-01~ |
17936-67H00-000 |
US $9.27 |
||
|
14
|
14
09168-06026-000 GASKET(6.4X11.5X0.8)2008-01-01~ |
09168-06026-000 |
from US $0.91 |
||
|
15
|
15
09401-31406-000 CLIP2008-01-01~ |
09401-31406-000 |
US $3.04 |
||
|
16
|
16
01421-0825A-000 BOLT,STUD2008-01-01~ |
01421-0825A-000 |
from US $1.12 |
||
|
17
|
17
01550-0612A-000 BOLT2008-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
01550-0612A-000 BOLT2008-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
01550-0816A-000 BOLTBolt, rear 2008-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
20
|
20
01550-0825A-000 BOLT2008-01-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
21
|
21
01550-0850A-000 Bolt2008-01-01~ |
01550-0850A-000 |
from US $5 |
||
|
22
|
22
08316-1008A-000 NUTNut, idle gear shaft 2008-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
23
|
23
17820-83J01-000
パイプ,ウォータフロア
2008-01-01~ |
17820-83J01-000 |
— | ||
|
24
|
24
17847-83J00-000
ホース,ラジエータインレットエンジン
2008-01-01~ |
17847-83J00-000 |
— | ||
|
25
|
25
17857-83J00-000
ホース,ラジエータアウトレットエンジン
2008-01-01~ |
17857-83J00-000 |
— | ||
|
26
|
26
09402-32502-000 CLAMP2008-01-01~ |
09402-32502-000 |
US $62.90 |
||
|
27
|
27
17937-83J00-000
ホース,リザーバ(パイプツーパイプ)
2008-01-01~ |
17937-83J00-000 |
— | ||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket 2008-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
29
|
29
17846-67H01-000 HOSE,RADIATOR INLET2008-01-01~ |
17846-67H01-000 |
US $25.60 |
||
|
30
|
30
17856-67H01-000 HOSE,RADIATOR OUTLET2008-01-01~ |
17856-67H01-000 |
US $10.97 |
||
|
31
|
31
09402-32502-000 CLAMP2008-01-01~ |
09402-32502-000 |
US $62.90 |
||
|
32
|
32
09356-58121-600 HOSEL:600>380; 2008-01-01~ |
09356-58121-600 |
US $8.76 |
||
|
33
|
33
17872-67H00-000 HOSE,HEATER ENG OUTLET2008-01-01~ |
17872-67H00-000 |
US $14.08 |
||
|
34
|
34
17873-67H01-000 HOSE,HEATER INLET2008-01-01~ |
17873-67H01-000 |
US $12.55 |
||
|
35
|
35
17874-83J00-000
ホース,ヒータインレットエンジン
2008-01-01~ |
17874-83J00-000 |
— | ||
|
36
|
36
17875-67H02-000 HOSE,HEATER OUTLET2008-01-01~ |
17875-67H02-000 |
US $17.60 |
||
|
37
|
37
17880-78A01-000 JOINT,HEATER2008-01-01~ |
17880-78A01-000 |
from US $10.64 |
||
|
38
|
38
09351-14152-600 PROTECTOR(14.5X15.5X600)Protector (l:600->0) L:600>240; 2008-01-01~ |
09351-14152-600 |
from US $1.98 |
||
|
39
|
39
09401-11415-000 CLIP2008-01-01~ |
09401-11415-000 |
from US $1.06 |
||
|
40
|
40
09401-18403-000 CLIPClip, heater hose 2008-01-01~ |
09401-18403-000 |
US $1.92 |
||
|
41
|
41
09401-21405-000 CLIP2008-01-01~ |
09401-21405-000 |
US $1.60 |
||
|
42
|
42
74129-76G00-000 SPACER,HEATER HOSE2008-01-01~ |
74129-76G00-000 |
US $5.48 |
||
