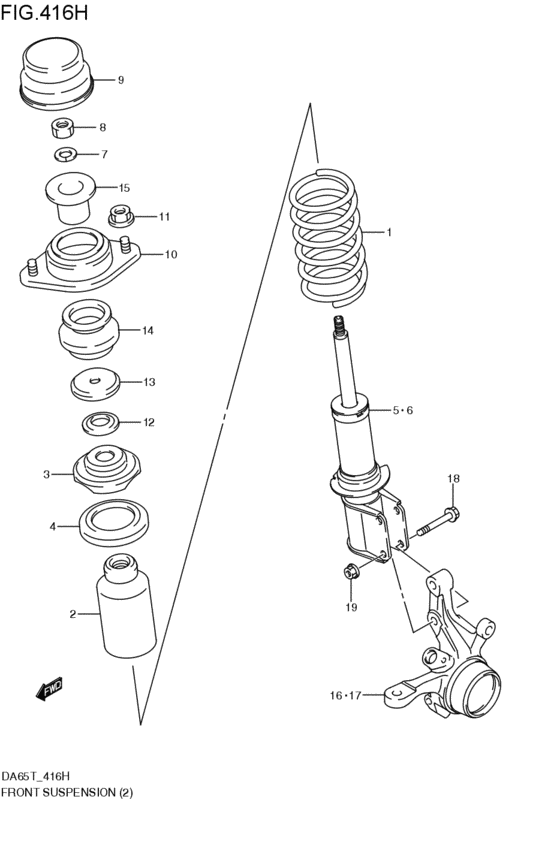

front suspension (4WD; 2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- AB-N
- power steering
- PWST-N
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-83J10-000
スプリング,フロントコイル
4WD; 2005-10-01~ |
41111-83J10-000 |
— | ||
|
2
|
2
42111-83J00-000
ストッパ,フロントバンプ
4WD; 2005-10-01~ |
42111-83J00-000 |
— | ||
|
3
|
3
41231-65H00-000 SEAT,FRONT COIL SPRING4WD; 2005-10-01~ |
41231-65H00-000 |
US $21.28 |
||
|
4
|
4
41251-77A00-000 SEAT,FR SPRING RUBBER UPPER4WD; 2005-10-01~ |
41251-77A00-000 |
US $3.65 |
||
|
5
|
5
41601-83J00-000 STRUT ASSY,FR SUSPENSION,R4WD; 2005-10-01~ |
41601-83J00-000 |
US $218.96 |
||
|
6
|
6
41602-83J00-000 ストラットアッシ,フロントサスペンション,レフト4WD; 2005-10-01~ |
41602-83J00-000 |
US $454.40 |
||
|
7
|
7
09162-12006-000 WASHER,LOCK4WD; 2005-10-01~ |
09162-12006-000 |
from US $1.28 |
||
|
8
|
8
09140-12045-000 NUT4WD; 2005-10-01~ |
09140-12045-000 |
US $1.76 |
||
|
9
|
9
41724-77A00-000 CAP,STRUT SUPPORT4WD; 2005-10-01~ |
41724-77A00-000 |
US $5.60 |
||
|
10
|
10
41711-67H00-000 SUPPORT,FRONT STRUT4WD; 2005-10-01~ |
41711-67H00-000 |
US $50.40 |
||
|
11
|
11
09159-10116-000 NUT4WD; 2005-10-01~2007-06-01 |
09159-10116-000 |
from US $1.28 |
||
|
11
|
11
09159-10118-000 NUT4WD; 2007-07-01~ |
09159-10118-000 |
US $1.28 |
||
|
12
|
12
41742-60G00-000 BEARING,FR STRUT4WD; 2005-10-01~ |
41742-60G00-000 |
from US $11.90 |
||
|
13
|
13
41724-67H00-000 SEAT,FRONT STRUT BEARING4WD; 2005-10-01~ |
41724-67H00-000 |
US $15.04 |
||
|
14
|
14
41721-67H00-000 RUBBER,FRONT STRUT SUPPORT4WD; 2005-10-01~ |
41721-67H00-000 |
US $16.80 |
||
|
15
|
15
41723-67H00-000 STOPPER,FRONT STRUT REBOUND4WD; 2005-10-01~ |
41723-67H00-000 |
US $24.80 |
||
|
16
|
16
45111-68H70-000
ナックル,ステアリング,ライト
4WD; 2005-10-01~ |
45111-68H70-000 |
— | ||
|
17
|
17
45151-68H70-000
ナックル,ステアリング,レフト
4WD; 2005-10-01~ |
45151-68H70-000 |
— | ||
|
18
|
18
09103-12051-000 BOLT(12X50)4WD; 2005-10-01~ |
09103-12051-000 |
from US $2.40 |
||
|
19
|
19
08316-1012A-000 NUT4WD; 2005-10-01~2007-06-01 |
08316-1012A-000 |
from US $0.96 |
||
|
19
|
19
09159-12068-000 NUT4WD; 2007-07-01~ |
09159-12068-000 |
from US $1.76 |
