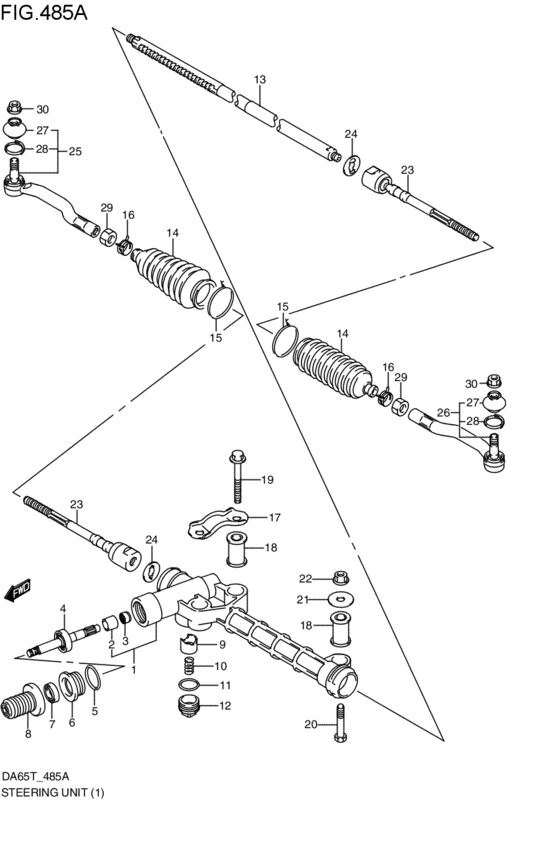

steering unit (ノーマルステアリング; PWST-N; 2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- AB-N
- power steering
- PWST-N
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48500-67810-000 CASE,STRG GEARPWST-N; 2005-10-01~ |
48500-67810-000 |
US $236.80 |
||
|
2
|
2
48553-77A00-000 BUSH,STEERING PINIONPWST-N; 2005-10-01~ |
48553-77A00-000 |
US $4.56 |
||
|
3
|
3
48555-74F00-000 BEARING,STEERING PINION NDLPWST-N; 2005-10-01~ |
48555-74F00-000 |
US $15.68 |
||
|
4
|
4
48550-83J00-000
ピニオン,ステアリング,ライト
PWST-N; 2005-10-01~ |
48550-83J00-000 |
— | ||
|
5
|
5
09280-34003-000 O RING(D:2,ID:34.1)PWST-N; 2005-10-01~ |
09280-34003-000 |
US $1.76 |
||
|
6
|
6
48562-82000-000
Plug, pinion bearing
PWST-N; 2005-10-01~ |
48562-82000-000 |
— | ||
| replacement | |||||
|
6
|
6
48562-82K00-000 PLUG,PINION BEARINGPWST-N; 2005-10-01~ |
48562-82K00-000 |
US $11.20 |
||
|
7
|
7
09283-17024-000 SEAL,OIL(17X25X5)PWST-N; 2005-10-01~ |
09283-17024-000 |
US $3.28 |
||
|
8
|
8
48581-77A00-000 COVER,STRG GEAR CASEPWST-N; 2005-10-01~ |
48581-77A00-000 |
US $6 |
||
|
9
|
9
48534-67H00-000 PLUNGER,STEERING RACKPWST-N; 2005-10-01~ |
48534-67H00-000 |
US $28 |
||
|
10
|
10
09440-19011-000 SPRINGPWST-N; 2005-10-01~ |
09440-19011-000 |
from US $1.37 |
||
|
11
|
11
09280-28002-000 O RING(D:1.9,ID:27.7)PWST-N; 2005-10-01~ |
09280-28002-000 |
from US $1.82 |
||
|
12
|
12
48535-67H00-000 SCREW,RACK DAMPERPWST-N; 2005-10-01~ |
48535-67H00-000 |
US $8.76 |
||
|
13
|
13
48531-83J00-000
ラック,ステアリング,ライト
PWST-N; 2005-10-01~ |
48531-83J00-000 |
— | ||
|
14
|
14
48571-58J00-000 BOOT,STEERING PINION SIDEPWST-N; 2005-10-01~ |
48571-58J00-000 |
US $17.08 |
||
|
15
|
15
09460-01028-000 WIREPWST-N; 2005-10-01~ |
09460-01028-000 |
from US $1.37 |
||
|
16
|
16
09401-16403-000 CLIPClip, 2nd air hose no.2 PWST-N; 2005-10-01~ |
09401-16403-000 |
from US $3.86 |
||
|
17
|
17
48521-67H00-000
Bracket,steering pinion side
PWST-N; 2005-10-01~ |
48521-67H00-000 |
— | ||
| replacement | |||||
|
17
|
17
48521-82M00-000 BRACKET,STRG PINION SIDEPWST-N; 2005-10-01~ |
48521-82M00-000 |
US $5.15 |
||
|
18
|
18
48525-67H00-000 BUSHING,STEERING GEAR BOXPWST-N; 2005-10-01~ |
48525-67H00-000 |
US $8.80 |
||
|
19
|
19
48528-68H00-000
ボルト,サスペンションアーム,リヤ
PWST-N; 2005-10-01~ |
48528-68H00-000 |
— | ||
| replacement | |||||
|
19
|
19
48528-68H01-000 BOLT,SPNSN ARM RRPWST-N; 2005-10-01~ |
48528-68H01-000 |
US $3.81 |
||
|
20
|
20
48528-83J00-000
ボルト,ステアリングギヤボックス
PWST-N; 2005-10-01~ |
48528-83J00-000 |
— | ||
|
21
|
21
09160-12079-000 WASHER(12.2X40X2.6)PWST-N; 2005-10-01~ |
09160-12079-000 |
US $1.28 |
||
|
22
|
22
08316-1012A-000 NUTPWST-N; 2005-10-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
23
|
23
48830-67H00-000
Tie-rod comp,steering
PWST-N; 2005-10-01~ |
48830-67H00-000 |
— | ||
| replacement | |||||
|
23
|
23
48830-67H01-000 TIE-ROD,STRGPWST-N; 2005-10-01~ |
48830-67H01-000 |
US $123.20 |
||
|
24
|
24
48841-77A00-000 WASHER,STEERING TIE ROD LOCKPWST-N; 2005-10-01~ |
48841-77A00-000 |
US $3.20 |
||
|
25
|
25
48810-68H00-000
エンド,ステアリングタイロッド,ライト
PWST-N; 2005-10-01~ |
48810-68H00-000 |
— | ||
| replacements | |||||
|
25
|
25
09140-12039-000 NUTPWST-N; 2005-10-01~ |
09140-12039-000 |
from US $1.76 |
||
|
25
|
25
09385-12002-000 PIN,SNAPPWST-N; 2005-10-01~ |
09385-12002-000 |
US $1.28 |
||
|
25
|
25
48810-68H01-000 END,STEERING TIE-ROD,RPWST-N; 2005-10-01~ |
48810-68H01-000 |
US $64.80 |
||
|
26
|
26
48820-68H00-000
エンド,ステアリングタイロッド,レフト
PWST-N; 2005-10-01~ |
48820-68H00-000 |
— | ||
| replacements | |||||
|
26
|
26
09140-12039-000 NUTPWST-N; 2005-10-01~ |
09140-12039-000 |
from US $1.76 |
||
|
26
|
26
09385-12002-000 PIN,SNAPPWST-N; 2005-10-01~ |
09385-12002-000 |
US $1.28 |
||
|
26
|
26
48820-68H01-000 END,STEERING TIE-ROD,LPWST-N; 2005-10-01~ |
48820-68H01-000 |
US $64.80 |
||
|
27
|
27
48819-60B00-000
BOOT SET
PWST-N; 2005-10-01~ |
48819-60B00-000 |
— | ||
| replacements | |||||
|
27
|
27
48819-60B01-000
Boot Set
PWST-N; 2005-10-01~ |
48819-60B01-000 |
— | ||
|
27
|
27
48800-60810-000 Boot SetPWST-N; 2005-10-01~ |
48800-60810-000 |
US $19.20 |
||
|
28
|
28
09401-23402-000 CLIPPWST-N; 2005-10-01~ |
09401-23402-000 |
US $1.76 |
||
|
29
|
29
09140-12030-000 NUTNut, tie rod (rh thread) PWST-N; 2005-10-01~ |
09140-12030-000 |
from US $1.31 |
||
|
30
|
30
09159-12053-000 NUTPWST-N; 2005-10-01~ |
09159-12053-000 |
from US $1.71 |
||
