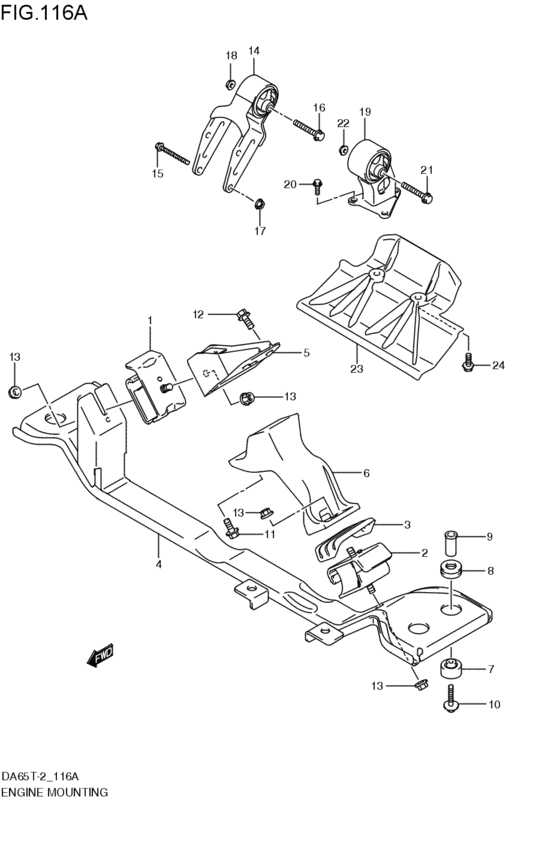

engine mounting (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-67H00-000 MOUNTING,ENG FR2008-01-01~ |
11610-67H00-000 |
US $146.40 |
||
|
2
|
2
11610-68H00-000 MOUNTING,ENG FR2008-01-01~ |
11610-68H00-000 |
US $108.80 |
||
|
3
|
3
11616-67H30-000 COVER,FR MTG,L2008-01-01~ |
11616-67H30-000 |
US $7.25 |
||
|
4
|
4
11630-83J00-000
メンバ,エンジンフロントマウンチング
2008-01-01~ |
11630-83J00-000 |
— | ||
|
5
|
5
11640-68H00-000
Bracket comp,eng fr mtg,r
2008-01-01~ |
11640-68H00-000 |
— | ||
| replacement | |||||
|
5
|
5
11640-68H10-000 BRACKET,ENG FR MTG,R2008-01-01~ |
11640-68H10-000 |
US $48.21 |
||
|
6
|
6
11650-67H01-000 BRACKET,ENG FR MTG,L2008-01-01~ |
11650-67H01-000 |
US $83.54 |
||
|
7
|
7
11684-68H00-000 CUSHION,MTG MEMBER LOWER2008-01-01~ |
11684-68H00-000 |
from US $2.93 |
||
|
8
|
8
11686-68H00-000 CUSHION,MTG MEMBER UPPER2008-01-01~ |
11686-68H00-000 |
from US $2.32 |
||
|
9
|
9
11687-67H00-000 COLLAR,MTG MEMBER2008-01-01~ |
11687-67H00-000 |
US $3.36 |
||
|
10
|
10
09116-10132-000 BOLT(10X76)2008-01-01~ |
09116-10132-000 |
US $28 |
||
|
11
|
11
01550-0825A-000 BOLT2008-01-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
12
|
12
01550-1025A-000 BOLTBolt, drive gear 2008-01-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
13
|
13
08316-1010A-000 NUTNut, kick starter 2008-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
19
|
19
11810-67H12-000 MOUNTING,RR4WD; 2008-01-01~ |
11810-67H12-000 |
US $139.20 |
||
|
20
|
20
01550-0820A-000 BOLTBolt, funnel bracket 4WD; 2008-01-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
21
|
21
01550-1080A-000 Bolt4WD; 2008-01-01~ |
01550-1080A-000 |
US $21.70 |
||
|
22
|
22
08316-1010A-000 NUTNut, kick starter 4WD; 2008-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
23
|
23
12650-83J00-000
カバー,エンジンスプラッシュ
2008-01-01~ |
12650-83J00-000 |
— | ||
|
24
|
24
01550-0820A-000 BOLTBolt, funnel bracket 2008-01-01~ |
01550-0820A-000 |
from US $0.96 |
||
