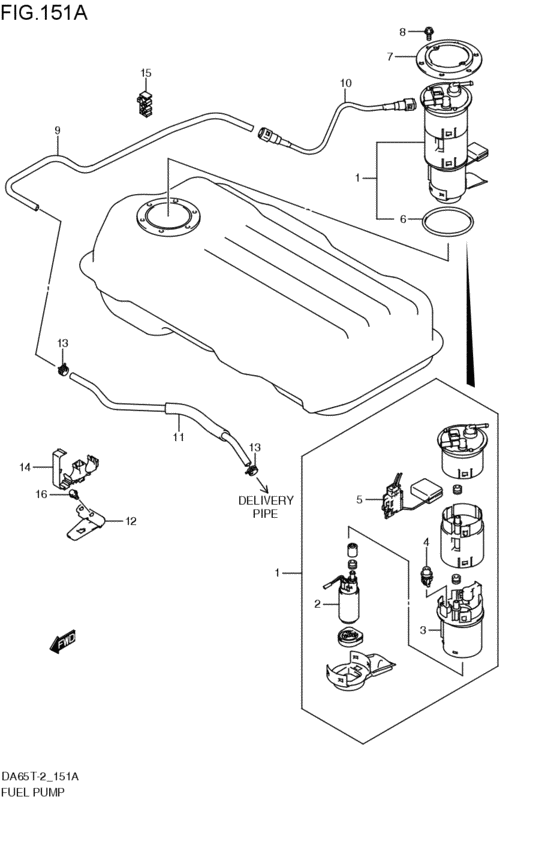

Fuel Pump (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-83830-000
ポンプセット,フューエル
2008-01-01~ |
15100-83830-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-83840-000
New Genuine Part
2008-01-01~ |
15100-83840-000 |
— | ||
|
2
|
2
15110-83J00-000
ポンプアッシ,フューエル
2008-01-01~ |
15110-83J00-000 |
— | ||
|
3
|
3
15310-68H01-000 FILTER ASSY,FUEL2008-01-01~ |
15310-68H01-000 |
US $264.48 |
||
|
4
|
4
15610-58J10-000 REGULATOR ASSY,FUEL2008-01-01~ |
15610-58J10-000 |
US $105.62 |
||
|
5
|
5
34810-83J00-000
ゲージアッシ,フューエルレベル
2008-01-01~ |
34810-83J00-000 |
— | ||
|
6
|
6
15111-75F01-000 GASKET,FUEL PUMP2008-01-01~ |
15111-75F01-000 |
US $9.12 |
||
|
7
|
7
15121-75F01-000 PLATE,FUEL PUMP2008-01-01~ |
15121-75F01-000 |
US $9.75 |
||
|
8
|
8
02162-0610A-000 SCREW2008-01-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15811-83J01-000
パイプ,フューエル
2008-01-01~ |
15811-83J01-000 |
— | ||
|
10
|
10
15812-83J00-000
パイプ,フューエル(ポンプツーパイプ)
2008-01-01~ |
15812-83J00-000 |
— | ||
|
11
|
11
15824-83J01-000
ホース,フューエル(パイプツーエンジン)
2008-01-01~ |
15824-83J01-000 |
— | ||
|
12
|
12
15831-67H01-000 BRACKET,FUEL&BRTHR HOSE2008-01-01~ |
15831-67H01-000 |
US $3.50 |
||
|
13
|
13
09401-13419-000 CLIP2008-01-01~ |
09401-13419-000 |
from US $1.60 |
||
|
14
|
14
15892-67H01-000 CLAMP,FUEL&BRTHR HOSE2008-01-01~ |
15892-67H01-000 |
US $1.91 |
||
|
15
|
15
15893-83J00-000
クランプ,フューエルパイプ
2008-01-01~ |
15893-83J00-000 |
— | ||
|
16
|
16
01550-0612A-000 BOLT2008-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
