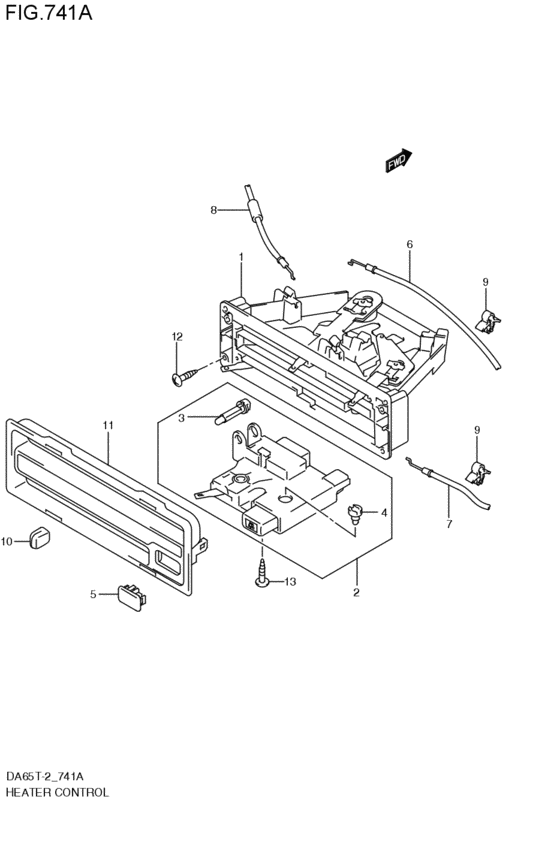

heater control (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74400-77A11-000
Lever assy, heater control
2008-01-01~ |
74400-77A11-000 |
— | ||
| replacement | |||||
|
1
|
1
74400-77A12-000 LEVER ASSY,HTR CONT2008-01-01~ |
74400-77A12-000 |
US $84.80 |
||
|
2
|
2
74430-78A20-000
スイッチアッシ,ブロワファン
エアコン ナシ; 2008-01-01~ |
74430-78A20-000 |
— | ||
| replacement | |||||
|
2
|
2
74430-78A40-000
New Genuine Part
エアコン ナシ; 2008-01-01~ |
74430-78A40-000 |
— | ||
|
2
|
2
74430-81A20-000
SWITCH ASSY,BLO FAN&A/C
エアコン アリ; 2008-01-01~ |
74430-81A20-000 |
— | ||
|
3
|
3
74432-81A20-000
BULB(ORANGE)
2008-01-01~ |
74432-81A20-000 |
— | ||
| replacement | |||||
|
3
|
3
74432-81A40-000
New Genuine Part
2008-01-01~ |
74432-81A40-000 |
— | ||
|
4
|
4
74433-81A10-000 BULB,A/C SWITCHエアコン アリ; 2008-01-01~ |
74433-81A10-000 |
US $4.45 |
||
|
5
|
5
74519-78A00-000 PLUG,A/C SWITCHエアコン ナシ; 2008-01-01~ |
74519-78A00-000 |
US $1.52 |
||
|
6
|
6
74451-67H01-000 CABLE,MODE CONTROLナチユラル; 2008-01-01~ |
74451-67H01-000 |
US $10.56 |
||
|
7
|
7
74452-67H01-000 CABLE,TEMP CONTROLブルー; 2008-01-01~ |
74452-67H01-000 |
US $11.68 |
||
|
8
|
8
74453-67H01-000 CABLE,FRESH AIR CONTROLブラツク; 2008-01-01~ |
74453-67H01-000 |
US $6.48 |
||
|
9
|
9
09403-08406-000 CLAMP2008-01-01~ |
09403-08406-000 |
from US $1.44 |
||
|
10
|
10
74461-77A00-000 KNOB,HTR CONT2008-01-01~ |
74461-77A00-000 |
US $1.98 |
||
|
11
|
11
74510-81A20-000 PANEL,HEATER CONTROL2008-01-01~ |
74510-81A20-000 |
US $28.15 |
||
|
12
|
12
03541-0516A-000 SCREW2008-01-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
13
|
13
03541-0410A-000 SCREW2008-01-01~ |
03541-0410A-000 |
from US $0.80 |
||
