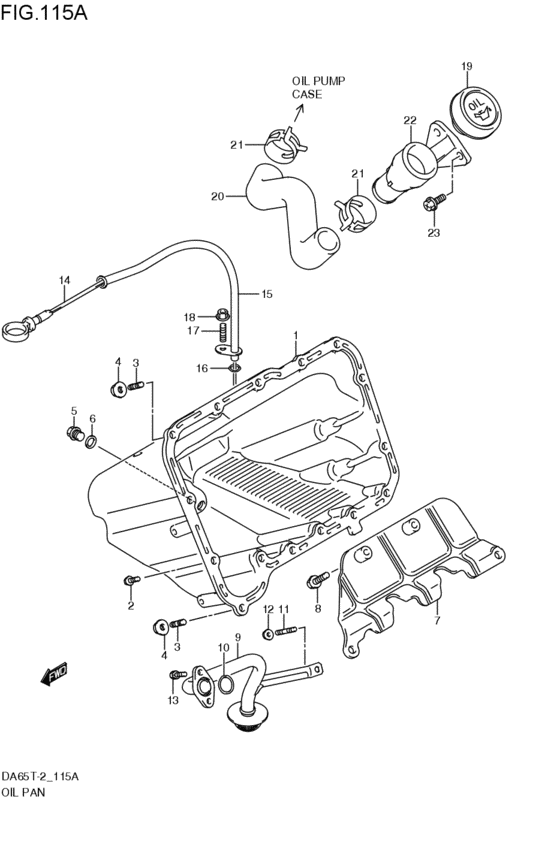

oil pan (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11511-67H03-000
パン,オイル
2008-01-01~ |
11511-67H03-000 |
— | ||
| replacement | |||||
|
1
|
1
11511-67H04-000 PAN,OIL2008-01-01~ |
11511-67H04-000 |
US $342.40 |
||
|
2
|
2
09103-06283-000 BOLT(6X16)2008-01-01~ |
09103-06283-000 |
from US $4.37 |
||
|
3
|
3
09108-06130-000 BOLT,STUD2008-01-01~ |
09108-06130-000 |
US $15.10 |
||
|
4
|
4
08316-1006A-000 NUT2008-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
5
|
5
11518-63J01-000 PLUG,OIL DRAIN2008-01-01~ |
11518-63J01-000 |
from US $2.27 |
||
|
6
|
6
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union 2008-01-01~ |
09168-14015-000 |
from US $1.17 |
||
|
7
|
7
11540-67H11-000
プレート,オイルバッフル
2008-01-01~ |
11540-67H11-000 |
— | ||
| replacement | |||||
|
7
|
7
11540-67H12-000 PLATE,OIL BAFFLE2008-01-01~ |
11540-67H12-000 |
US $42.40 |
||
|
8
|
8
01550-0625A-000 BOLTBolt 2008-01-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
9
|
9
16520-67H00-000 STRAINER,OIL PUMP2008-01-01~ |
16520-67H00-000 |
US $73.60 |
||
|
10
|
10
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe 2008-01-01~ |
09280-16005-000 |
from US $1.40 |
||
|
11
|
11
01421-0625A-000 BOLT,STUD2008-01-01~ |
01421-0625A-000 |
from US $0.98 |
||
|
12
|
12
08316-1006A-000 NUT2008-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
13
|
13
01570-0616A-000 Bolt2008-01-01~ |
01570-0616A-000 |
from US $0.80 |
||
|
14
|
14
16910-83J01-000
ゲージ,オイルレベル
2008-01-01~ |
16910-83J01-000 |
— | ||
|
15
|
15
16930-83J01-000
ガイド,オイルレベルゲージ
2008-01-01~ |
16930-83J01-000 |
— | ||
|
16
|
16
09280-10016-000 O RING(D:1.9,ID:9.8)O ring 2008-01-01~ |
09280-10016-000 |
from US $1.52 |
||
|
17
|
17
09108-06113-000 BOLT,STUD2008-01-01~ |
09108-06113-000 |
US $13.60 |
||
|
18
|
18
08316-1006A-000 NUT2008-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
19
|
19
16921-60C00-000 Cap,oil filler2008-01-01~ |
16921-60C00-000 |
US $13.60 |
||
|
20
|
20
16945-83J00-000
ホース,オイルインレット
2008-01-01~ |
16945-83J00-000 |
— | ||
|
21
|
21
09401-30404-000 CLAMPClip 2008-01-01~ |
09401-30404-000 |
from US $7.65 |
||
|
22
|
22
11531-60C00-000 FILLER,OIL2008-01-01~ |
11531-60C00-000 |
US $10.41 |
||
|
23
|
23
02162-0616A-000 SCREW2008-01-01~ |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
23
|
23
02162-0616B-000 SCREWBolt, adjust 2008-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
