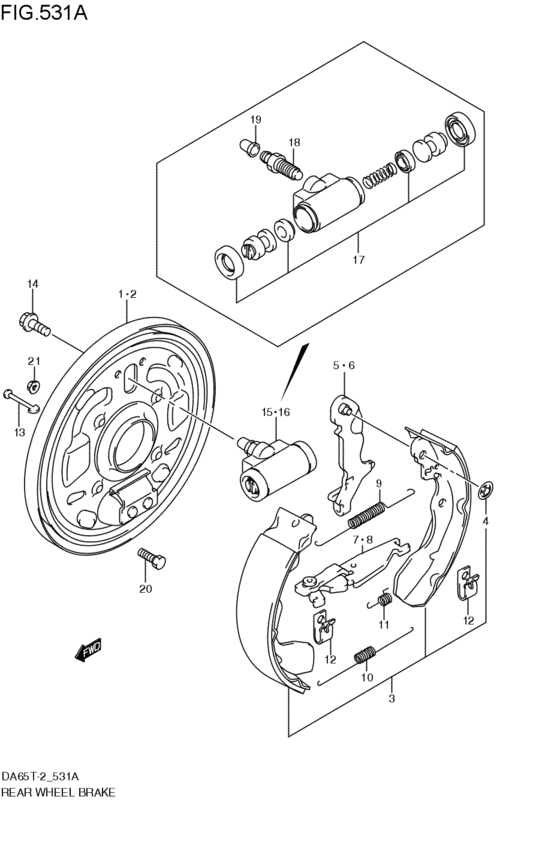

rear wheel brakes (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-67H20-000 PLATE ASSY,BRAKE BACKING,R2008-01-01~ |
53110-67H20-000 |
US $27.23 |
||
|
2
|
2
53160-67H20-000 PLATE ASSY BACK,L2008-01-01~ |
53160-67H20-000 |
US $108.80 |
||
|
3
|
3
53200-67H00-000 SHOE SET,BRAKE2008-01-01~ |
53200-67H00-000 |
US $63.20 |
||
|
4
|
4
53753-67H00-000 PUSH NUT,PARKING LEVER2008-01-01~ |
53753-67H00-000 |
from US $1.22 |
||
|
5
|
5
53750-67H00-000 LEVER ASSY,PARKING SHOE,R2008-01-01~ |
53750-67H00-000 |
US $5.45 |
||
|
6
|
6
53760-67H00-000 LEVER ASSY,PARKING SHOE,L2008-01-01~ |
53760-67H00-000 |
US $23.20 |
||
|
7
|
7
53810-67H00-000 STRUT ASSY,BRAKE,R2008-01-01~ |
53810-67H00-000 |
US $14.72 |
||
|
8
|
8
53820-67H00-000 STRUT ASSY,BRAKE,L2008-01-01~ |
53820-67H00-000 |
US $43.20 |
||
|
9
|
9
53231-67H00-000 SPRING,SHOE RETURN UPPER2008-01-01~ |
53231-67H00-000 |
US $4.16 |
||
|
10
|
10
53331-67H00-000 SPRING,SHOE RETURN LOWER2008-01-01~ |
53331-67H00-000 |
US $4.16 |
||
|
11
|
11
53715-8203V-000 SPRING,ANTIRATTLE2008-01-01~ |
53715-8203V-000 |
US $2.24 |
||
|
12
|
12
53243-85010-000 SPRING,SHOE HOLD DOWNSpring, shoe hold down 2008-01-01~ |
53243-85010-000 |
from US $1.37 |
||
|
13
|
13
53241-82030-000 PIN,SHOE HOLD DOWNPin, shoe hold down 2008-01-01~ |
53241-82030-000 |
from US $1.46 |
||
|
14
|
14
01550-0610A-000 BOLT2008-01-01~ |
01550-0610A-000 |
from US $0.80 |
||
|
15
|
15
53401-78A01-000 CYLINDER ASSY,RR WHEEL,R2008-01-01~ |
53401-78A01-000 |
US $147.20 |
||
|
16
|
16
53402-78A01-000
CYLINDER ASSY,RR WHEEL
2008-01-01~ |
53402-78A01-000 |
— | ||
| replacement | |||||
|
16
|
16
53402-78A02-000 CYLINER ASSY RR WHEEL2008-01-01~ |
53402-78A02-000 |
from US $62.35 |
||
|
17
|
17
53400-85851-000 CUP SET,RR WHEEL CYLINDER2008-01-01~ |
53400-85851-000 |
from US $9.23 |
||
|
18
|
18
55473-82031-000 PLUG,BLEEDERレフト; 2008-01-01~ |
55473-82031-000 |
US $4.80 |
||
|
19
|
19
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug レフト; 2008-01-01~ |
55156-66310-000 |
from US $1.98 |
||
|
20
|
20
53247-52D00-000
Bolt,serration
2008-01-01~ |
53247-52D00-000 |
— | ||
| replacement | |||||
|
20
|
20
53247-77K00-000 BOLT,SERRATION2008-01-01~ |
53247-77K00-000 |
US $1.82 |
||
|
21
|
21
09159-08075-000 NUT2008-01-01~ |
09159-08075-000 |
US $0.91 |
||
