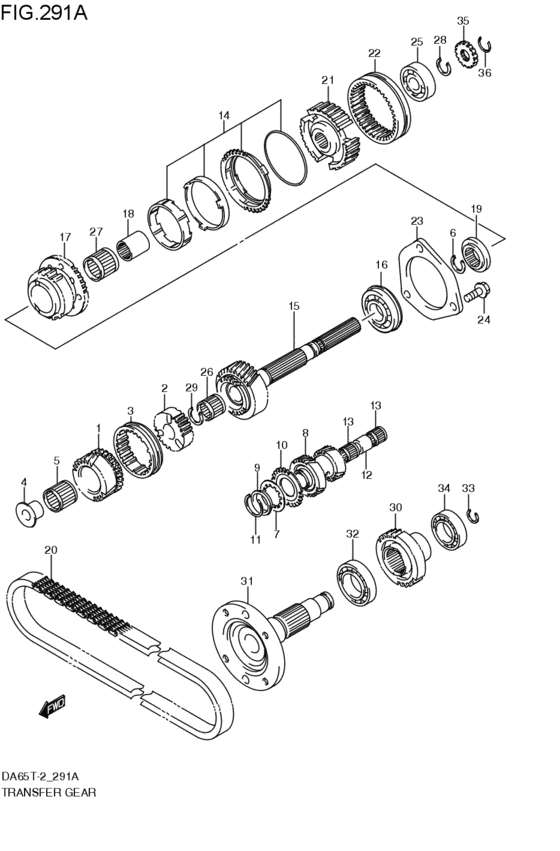

transfer gear (4WD; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FC
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29211-79A40-000 GEAR,T/F INPUT LOW4WD; 2008-01-01~ |
29211-79A40-000 |
US $83.54 |
||
|
2
|
2
29231-79A41-000 HUB,REDUCTION CLUTCH4WD; 2008-01-01~ |
29231-79A41-000 |
US $46 |
||
|
3
|
3
29241-79A41-000 SLEEVE,REDUCTION CLUTCH4WD; 2008-01-01~ |
29241-79A41-000 |
US $83.54 |
||
|
4
|
4
29998-79A40-000 BUSH,T/F INPUT LOW GR4WD; 2008-01-01~ |
29998-79A40-000 |
US $43.42 |
||
|
5
|
5
09263-26036-000 BEARING(26X31X27.8)4WD; 2008-01-01~ |
09263-26036-000 |
US $29.60 |
||
|
6
|
6
09380-20011-000 RING,SNAP4WD; 2008-01-01~ |
09380-20011-000 |
US $1.52 |
||
|
7
|
7
24139-80F00-000 SPRING,T/M FRICTION GEAR4WD; 2008-01-01~ |
24139-80F00-000 |
US $20 |
||
|
8
|
8
29121-79A42-000 GEAR,TRANSFER COUNTER4WD; 2008-01-01~ |
29121-79A42-000 |
US $176.64 |
||
|
9
|
9
29124-61H41-000 WASHER,T/F FRICTION GEAR4WD; 2008-01-01~ |
29124-61H41-000 |
US $3.05 |
||
|
10
|
10
29126-79D40-000 GEAR,T/F FRICTION4WD; 2008-01-01~ |
29126-79D40-000 |
US $30.40 |
||
|
11
|
11
29129-61H40-000 CIRCLIP4WD; 2008-01-01~ |
29129-61H40-000 |
US $2.43 |
||
|
12
|
12
29128-79A40-000 SPACER,T/F CENTER BEARING4WD; 2008-01-01~ |
29128-79A40-000 |
US $4.53 |
||
|
13
|
13
09263-20077-000 BEARING(20X25X25)4WD; 2008-01-01~ |
09263-20077-000 |
US $20.98 |
||
|
14
|
14
24430-79A01-000 RING ASSY,T/F DRIVE SYNC4WD; 2008-01-01~ |
24430-79A01-000 |
US $106.72 |
||
|
15
|
15
29141-66H41-000 SHAFT,T/F OUTPUT RR4WD; 2008-01-01~ |
29141-66H41-000 |
US $290.32 |
||
|
16
|
16
29142-79A41-000 BEARING,T/F OUTPUT SHAFT FR4WD; 2008-01-01~ |
29142-79A41-000 |
US $38.40 |
||
|
17
|
17
29221-67H00-000 SPROCKET,T/F DRIVE4WD; 2008-01-01~ |
29221-67H00-000 |
US $114.82 |
||
|
18
|
18
29222-79A00-000 BUSH,T/F SPROCKET NDL4WD; 2008-01-01~ |
29222-79A00-000 |
US $9.79 |
||
|
19
|
19
29223-79A00-000 WASHER,T/F SPROCKET4WD; 2008-01-01~ |
29223-79A00-000 |
US $11.30 |
||
|
20
|
20
29225-67H00-000 CHAIN,FR DRIVE4WD; 2008-01-01~ |
29225-67H00-000 |
US $263.12 |
||
|
21
|
21
29231-79A01-000 HUB,T/F FR DRIVE SYNC4WD; 2008-01-01~ |
29231-79A01-000 |
US $52.62 |
||
|
22
|
22
29232-79A01-000 SLEEVE,FRONT DRIVE SYNC4WD; 2008-01-01~ |
29232-79A01-000 |
US $58.88 |
||
|
23
|
23
29529-79A40-000 PLATE,T/F OUTPT SHAFT FR BRG4WD; 2008-01-01~ |
29529-79A40-000 |
US $8.83 |
||
|
24
|
24
09103-08419-000 BOLT(8X25)4WD; 2008-01-01~ |
09103-08419-000 |
from US $2.08 |
||
|
25
|
25
09262-22031-000 BEARING(22X52X15)4WD; 2008-01-01~ |
09262-22031-000 |
from US $12 |
||
|
26
|
26
09263-17045-000 BEARING(17X22X15.8)4WD; 2008-01-01~ |
09263-17045-000 |
US $4.96 |
||
|
27
|
27
09263-32014-000 BEARING(32X37X29.9)4WD; 2008-01-01~ |
09263-32014-000 |
US $11.20 |
||
|
28
|
28
09380-22010-000 CIRCLIP4WD; 2008-01-01~ |
09380-22010-000 |
US $1.92 |
||
|
29
|
29
09380-25011-000 RING,SNAP4WD; 2008-01-01~ |
09380-25011-000 |
from US $1.04 |
||
|
30
|
30
29131-67H00-000 SPROCKET,T/F OUTPUT FRONT4WD; 2008-01-01~ |
29131-67H00-000 |
US $65.14 |
||
|
31
|
31
29150-68H01-000 SHAFT,T/F OUTPUT FR4WD; 2008-01-01~ |
29150-68H01-000 |
US $84.64 |
||
|
32
|
32
09262-30083-000 BEARING(30X55X13)4WD; 2008-01-01~ |
09262-30083-000 |
US $30.40 |
||
|
33
|
33
09380-25011-000 RING,SNAP4WD; 2008-01-01~ |
09380-25011-000 |
from US $1.04 |
||
|
34
|
34
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) 4WD; 2008-01-01~ |
09262-25003-000 |
from US $12.80 |
||
|
35
|
35
26121-76A01-000 RING,SPEEDOMETER EXCITER4WD; 2008-01-01~ |
26121-76A01-000 |
US $10.40 |
||
|
36
|
36
09380-22010-000 CIRCLIP4WD; 2008-01-01~ |
09380-22010-000 |
US $1.92 |
