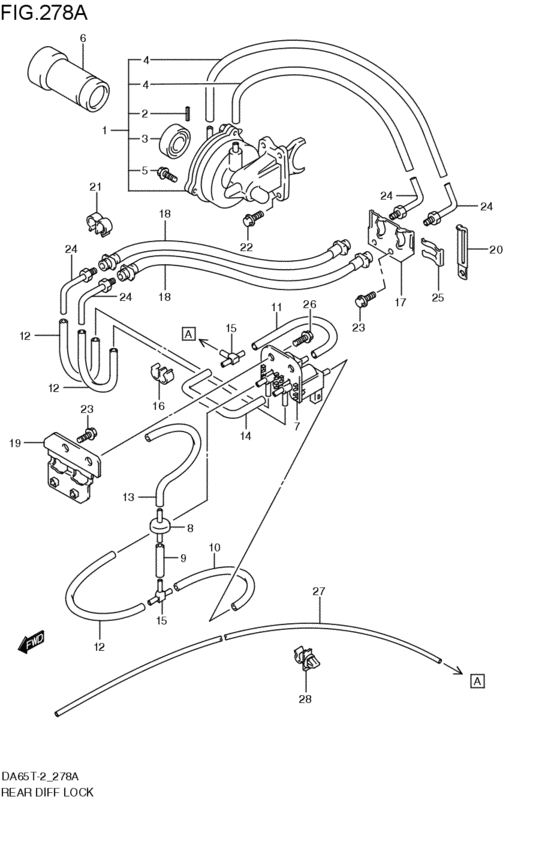

rear differential locking device (FD; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- N-PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27900-79A00-000 ACTUATOR ASSY,DIFF LOCK SHIFTFD; 2008-01-01~ |
27900-79A00-000 |
US $342.40 |
||
|
2
|
2
09205-05013-000 PIN,SPRING(5X22)Pin, spring (5x22) FD; 2008-01-01~ |
09205-05013-000 |
from US $2.94 |
||
|
3
|
3
09282-14005-000 SEAL,OIL(14X24X7)FD; 2008-01-01~ |
09282-14005-000 |
US $5.26 |
||
|
4
|
4
09355-35754-601
HOSE(3.5X7.5X601)
L:601>220; FD; 2008-01-01~ |
09355-35754-601 |
— | ||
| replacement | |||||
|
4
|
4
09355-35006-601 Hose(3.5X7.5X601)L:601>220; FD; 2008-01-01~ |
09355-35006-601 |
from US $5.78 |
||
|
5
|
5
01550-0612A-000 BOLTFD; 2008-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
27911-85600-000 SLEEVE,DIFF LOCKFD; 2008-01-01~ |
27911-85600-000 |
US $60.35 |
||
|
7
|
7
27951-85600-000 VALVE,VACUUM SWITCHFD; 2008-01-01~ |
27951-85600-000 |
from US $108.52 |
||
|
8
|
8
27965-85400-000 FILTER,VSVFilter assy, vsv FD; 2008-01-01~ |
27965-85400-000 |
from US $10.40 |
||
|
9
|
9
09355-35754-601
HOSE(3.5X7.5X601)
FD; 2008-01-01~ |
09355-35754-601 |
— | ||
| replacement | |||||
|
9
|
9
09355-35006-601 Hose(3.5X7.5X601)FD; 2008-01-01~ |
09355-35006-601 |
from US $5.78 |
||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
FD; 2008-01-01~ |
09355-35754-601 |
— | ||
| replacement | |||||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)FD; 2008-01-01~ |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
09355-35754-601
HOSE(3.5X7.5X601)
FD; 2008-01-01~ |
09355-35754-601 |
— | ||
| replacement | |||||
|
11
|
11
09355-35006-601 Hose(3.5X7.5X601)FD; 2008-01-01~ |
09355-35006-601 |
from US $5.78 |
||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
FD; 2008-01-01~ |
09355-35754-601 |
— | ||
| replacement | |||||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)FD; 2008-01-01~ |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
FD; 2008-01-01~ |
09355-35754-601 |
— | ||
| replacement | |||||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)FD; 2008-01-01~ |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
FD; 2008-01-01~ |
09355-35754-601 |
— | ||
| replacement | |||||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)FD; 2008-01-01~ |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
09367-04002-000 CONNECTORFD; 2008-01-01~ |
09367-04002-000 |
US $4.80 |
||
|
16
|
16
09408-00033-000 CLAMPClamp FD; 2008-01-01~ |
09408-00033-000 |
from US $1.60 |
||
|
17
|
17
27961-85600-000 BRACKET,DIFF LOCK VACUUM HOSEFD; 2008-01-01~ |
27961-85600-000 |
US $3.28 |
||
|
18
|
18
27963-83J01-000 HOSE,VSV TO AXLE VACUUMFD; 2008-01-01~ |
27963-83J01-000 |
US $23.18 |
||
|
19
|
19
27968-83J00-000 BRACKET,DIFF LOCKFD; 2008-01-01~ |
27968-83J00-000 |
US $7.07 |
||
|
20
|
20
09404-08419-000 CLAMP(L:80)FD; 2008-01-01~ |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
20
|
20
09404-08422-000 Clamp,wiring HarnessFD; 2008-01-01~ |
09404-08422-000 |
from US $3.62 |
||
|
21
|
21
09408-00100-000 CLIPFD; 2008-01-01~ |
09408-00100-000 |
US $19.50 |
||
|
22
|
22
01551-0816A-000
ボルト
FD; 2008-01-01~ |
01551-0816A-000 |
— | ||
| replacement | |||||
|
22
|
22
01551-0816C-000 BoltFD; 2008-01-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
23
|
23
01551-0820A-000 BOLTFD; 2008-01-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
24
|
24
27962-85600-000 PIPE,DIFF LOCK VACUUM NO.2FD; 2008-01-01~ |
27962-85600-000 |
US $3.64 |
||
|
25
|
25
09383-13003-000 E-RINGFD; 2008-01-01~ |
09383-13003-000 |
from US $1.60 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket FD; 2008-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
27
|
27
27969-83J00-000
ホース,マニホールドツーバキュームスイッチ
FD; 2008-01-01~ |
27969-83J00-000 |
— | ||
|
28
|
28
09403-07331-000 CLAMPFD; 2008-01-01~ |
09403-07331-000 |
from US $4.76 |
||
