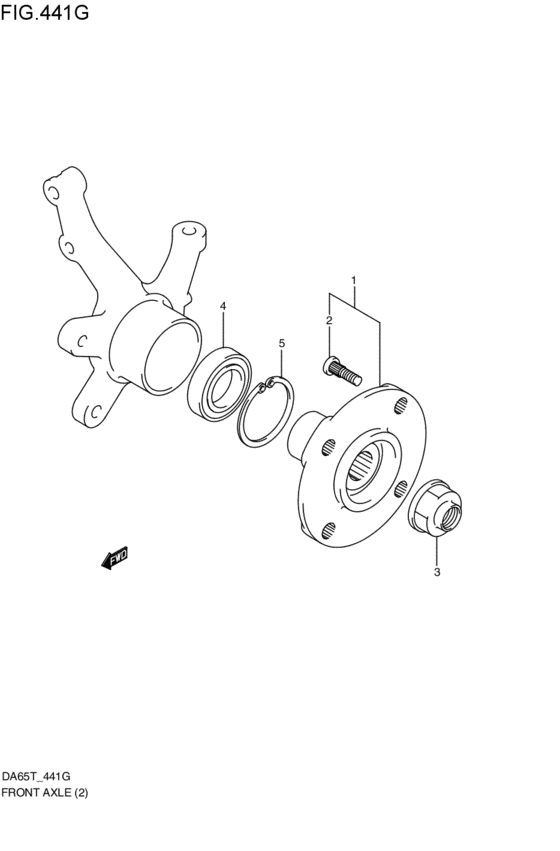

front axle (4WD; 2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- AB-N
- power steering
- PWST-N
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43420-76810-000
Hub, front wheel
4WD; 2005-10-01~ |
43420-76810-000 |
— | ||
| replacement | |||||
|
1
|
1
43420-76811-000 HUB SET,FR WHL4WD; 2005-10-01~ |
43420-76811-000 |
US $156.80 |
||
|
2
|
2
09119-12012-000 BOLT(12X38)4WD; 2005-10-01~ |
09119-12012-000 |
US $2.72 |
||
|
3
|
3
09159-18017-000
Nut
4WD; 2005-10-01~ |
09159-18017-000 |
— | ||
| replacement | |||||
|
3
|
3
09159-18026-000 NUT4WD; 2005-10-01~ |
09159-18026-000 |
from US $3.33 |
||
|
4
|
4
43440-84F00-000
Bearing, rr hub
4WD; 2005-10-01~ |
43440-84F00-000 |
— | ||
| replacements | |||||
|
4
|
4
43440-58J00-000
BEARING,FR WHEEL
4WD; 2005-10-01~ |
43440-58J00-000 |
— | ||
|
4
|
4
43440-58J01-000 BEARING,FR WHEEL4WD; 2005-10-01~ |
43440-58J01-000 |
from US $48.85 |
||
|
5
|
5
08331-4162A-000 CIRCLIP4WD; 2005-10-01~ |
08331-4162A-000 |
from US $2.05 |
||
