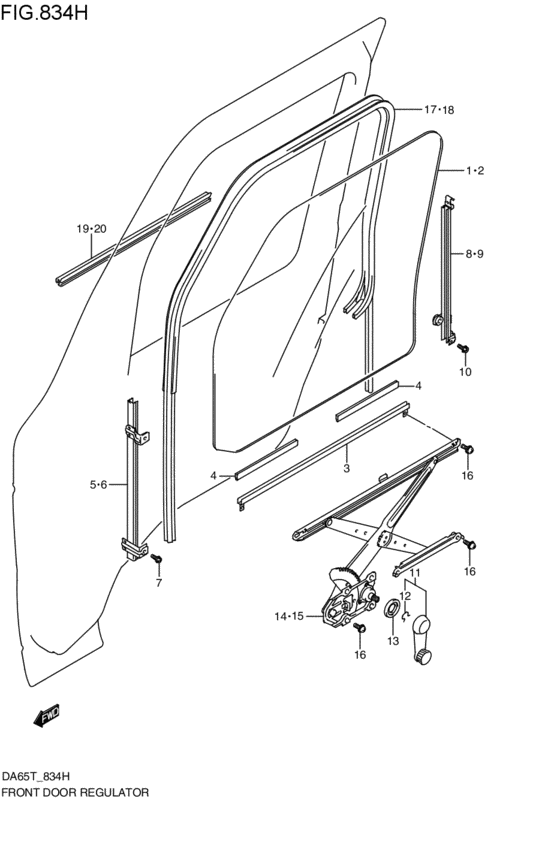

front door regulator (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- AB-N
- power steering
- PWST-N
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-67H00-000
GLASS,FR DR WDO,R
CENTRAL; 2005-10-01~ |
84531-67H00-000 |
— | ||
|
2
|
2
84536-67H00-000
GLASS,FR DR WDO,L
CENTRAL; 2005-10-01~ |
84536-67H00-000 |
— | ||
|
3
|
3
83610-77A00-000 CHANNEL,FR GLASS BOTTOM2005-10-01~ |
83610-77A00-000 |
US $21.60 |
||
|
4
|
4
83691-60A00-000 RUBBER,FR GLASS BOTTOM CHANNELL:250>180; 2005-10-01~ |
83691-60A00-000 |
US $2.56 |
||
|
5
|
5
81710-67H00-000 SASH,FR DOOR FRONT,R2005-10-01~ |
81710-67H00-000 |
US $6.66 |
||
|
6
|
6
81720-67H00-000 SASH,FR DOOR FRONT,L2005-10-01~ |
81720-67H00-000 |
US $6.66 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket 2005-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
81730-83J00-000
サッシュ,フロントドアリヤ,ライト
2005-10-01~ |
81730-83J00-000 |
— | ||
|
9
|
9
81740-83J00-000
サッシュ,フロントドアリヤ,レフト
2005-10-01~ |
81740-83J00-000 |
— | ||
|
10
|
10
09122-76001-000 SCREW(6X16)2005-10-01~ |
09122-76001-000 |
US $0.80 |
||
|
11
|
11
82960-60G00-P4Z HANDLE,DR WINDOW RGLTR(GRAY)グレ-; 2005-10-01~ |
82960-60G00-P4Z |
from US $19.89 |
||
|
12
|
12
78463-78000-000 SNAP2005-10-01~ |
78463-78000-000 |
US $1.60 |
||
|
13
|
13
82972-70B00-P4Z ESCUTCHEON,WINDOW RGLTR HDL(GRグレ-; 2005-10-01~ |
82972-70B00-P4Z |
US $2.24 |
||
|
14
|
14
83410-83J00-000
レギュレータアッシ,フロントドアウィンド,ライト
2005-10-01~ |
83410-83J00-000 |
— | ||
|
15
|
15
83440-83J00-000
レギュレータアッシ,フロントドアウィンド,レフト
2005-10-01~ |
83440-83J00-000 |
— | ||
|
16
|
16
02112-7610A-000 SCREW2005-10-01~ |
02112-7610A-000 |
from US $3.59 |
||
|
17
|
17
83661-83J00-000
ラン,フロントドアガラス,ライト
2005-10-01~ |
83661-83J00-000 |
— | ||
|
18
|
18
83662-83J00-000
ラン,フロントドアガラス,レフト
2005-10-01~ |
83662-83J00-000 |
— | ||
|
19
|
19
83810-67H00-000 WEATHERSTRIP,FR DR OUT,R2005-10-01~ |
83810-67H00-000 |
US $15.53 |
||
|
20
|
20
83820-67H00-000 WEATHERSTRIP,FR DR OUT,L2005-10-01~ |
83820-67H00-000 |
US $15.53 |
