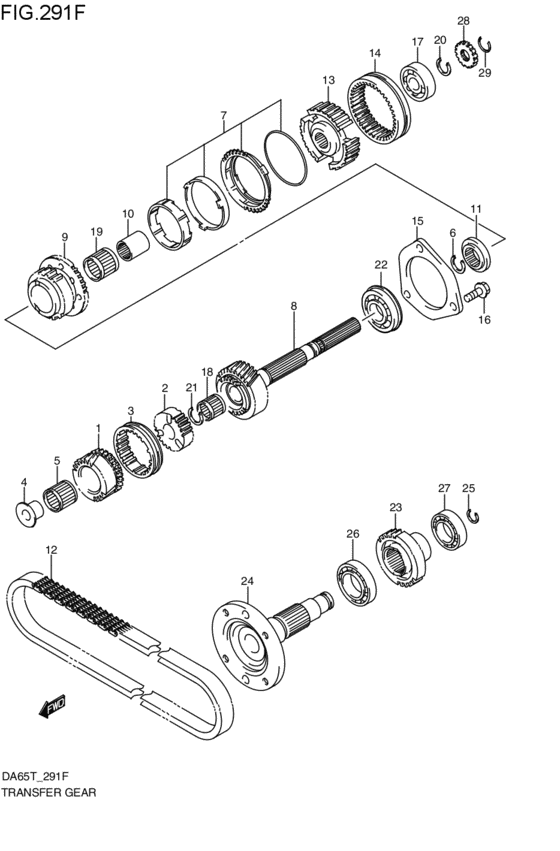

transfer gear (4WD; 2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- AB
- power steering
- PWST-N
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29211-79A40-000 GEAR,T/F INPUT LOW4WD; 2005-10-01~ |
29211-79A40-000 |
US $83.54 |
||
|
2
|
2
29231-79A41-000 HUB,REDUCTION CLUTCH4WD; 2005-10-01~ |
29231-79A41-000 |
US $46 |
||
|
3
|
3
29241-79A41-000 SLEEVE,REDUCTION CLUTCH4WD; 2005-10-01~ |
29241-79A41-000 |
US $83.54 |
||
|
4
|
4
29998-79A40-000 BUSH,T/F INPUT LOW GR4WD; 2005-10-01~ |
29998-79A40-000 |
US $43.42 |
||
|
5
|
5
09263-26036-000 BEARING(26X31X27.8)4WD; 2005-10-01~ |
09263-26036-000 |
US $29.60 |
||
|
6
|
6
09380-20011-000 RING,SNAP4WD; 2005-10-01~ |
09380-20011-000 |
US $1.52 |
||
|
7
|
7
24430-79A01-000 RING ASSY,T/F DRIVE SYNC4WD; 2005-10-01~ |
24430-79A01-000 |
US $106.72 |
||
|
8
|
8
29141-66H41-000 SHAFT,T/F OUTPUT RR4WD; 2005-10-01~ |
29141-66H41-000 |
US $290.32 |
||
|
9
|
9
29221-67H00-000 SPROCKET,T/F DRIVE4WD; 2005-10-01~ |
29221-67H00-000 |
US $114.82 |
||
|
10
|
10
29222-79A00-000 BUSH,T/F SPROCKET NDL4WD; 2005-10-01~ |
29222-79A00-000 |
US $9.79 |
||
|
11
|
11
29223-79A00-000 WASHER,T/F SPROCKET4WD; 2005-10-01~ |
29223-79A00-000 |
US $11.30 |
||
|
12
|
12
29225-67H00-000 CHAIN,FR DRIVE4WD; 2005-10-01~ |
29225-67H00-000 |
US $263.12 |
||
|
13
|
13
29231-79A01-000 HUB,T/F FR DRIVE SYNC4WD; 2005-10-01~ |
29231-79A01-000 |
US $52.62 |
||
|
14
|
14
29232-79A01-000 SLEEVE,FRONT DRIVE SYNC4WD; 2005-10-01~ |
29232-79A01-000 |
US $58.88 |
||
|
15
|
15
29529-79A40-000 PLATE,T/F OUTPT SHAFT FR BRG4WD; 2005-10-01~ |
29529-79A40-000 |
US $8.83 |
||
|
16
|
16
09103-08419-000 BOLT(8X25)4WD; 2005-10-01~ |
09103-08419-000 |
from US $2.08 |
||
|
17
|
17
09262-22031-000 BEARING(22X52X15)4WD; 2005-10-01~ |
09262-22031-000 |
from US $12 |
||
|
18
|
18
09263-17045-000 BEARING(17X22X15.8)4WD; 2005-10-01~ |
09263-17045-000 |
US $4.96 |
||
|
19
|
19
09263-32014-000 BEARING(32X37X29.9)4WD; 2005-10-01~ |
09263-32014-000 |
US $11.20 |
||
|
20
|
20
09380-22010-000 CIRCLIP4WD; 2005-10-01~ |
09380-22010-000 |
US $1.92 |
||
|
21
|
21
09380-25011-000 RING,SNAP4WD; 2005-10-01~ |
09380-25011-000 |
from US $1.04 |
||
|
22
|
22
29142-79A41-000 BEARING,T/F OUTPUT SHAFT FR4WD; 2005-10-01~ |
29142-79A41-000 |
US $38.40 |
||
|
23
|
23
29131-67H00-000 SPROCKET,T/F OUTPUT FRONT4WD; 2005-10-01~ |
29131-67H00-000 |
US $65.14 |
||
|
24
|
24
29150-68H00-000
シャフト,トランスファアウトプツト,フロント
4WD; 2005-10-01~ |
29150-68H00-000 |
— | ||
| replacement | |||||
|
24
|
24
29150-68H01-000 SHAFT,T/F OUTPUT FR4WD; 2005-10-01~ |
29150-68H01-000 |
US $84.64 |
||
|
25
|
25
09380-25011-000 RING,SNAP4WD; 2005-10-01~ |
09380-25011-000 |
from US $1.04 |
||
|
26
|
26
09262-30083-000 BEARING(30X55X13)4WD; 2005-10-01~ |
09262-30083-000 |
US $30.40 |
||
|
27
|
27
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) 4WD; 2005-10-01~ |
09262-25003-000 |
from US $12.80 |
||
|
28
|
28
26121-76A01-000 RING,SPEEDOMETER EXCITER4WD; 2005-10-01~ |
26121-76A01-000 |
US $10.40 |
||
|
29
|
29
09380-22010-000 CIRCLIP4WD; 2005-10-01~ |
09380-22010-000 |
US $1.92 |
||
