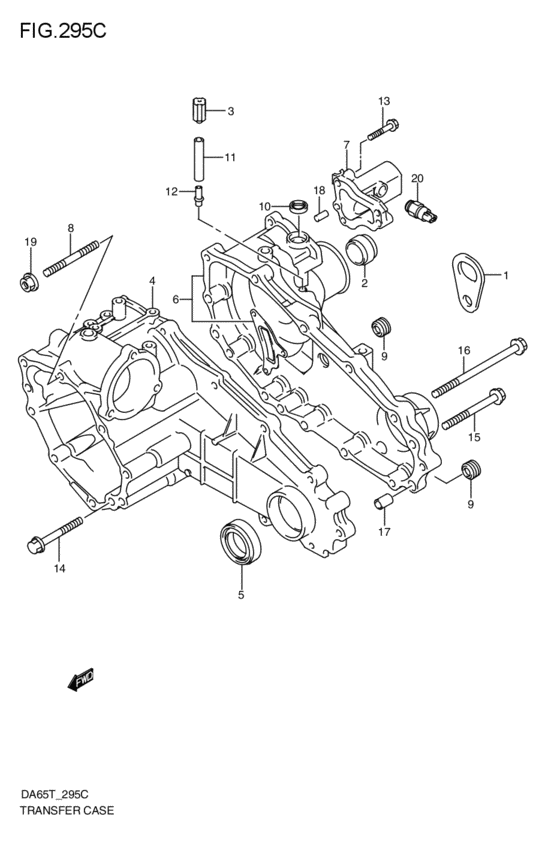

transfer case (4WD; 2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11851-72B21-000 HOOK,ENGINE4WD; 2005-10-01~ |
11851-72B21-000 |
US $2.80 |
||
|
2
|
2
24780-78A00-000 SEAL,EXTENSION CASE4WD; 2005-10-01~ |
24780-78A00-000 |
from US $5.51 |
||
|
3
|
3
27991-65D01-000 PLUG,BREATHER4WD; 2005-10-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
4
|
4
29511-83J00-000
ケース,トランスファフロント
4WD; 2005-10-01~ |
29511-83J00-000 |
— | ||
|
5
|
5
29515-79A00-000 SEAL,T/F FR CASE OIL4WD; 2005-10-01~ |
29515-79A00-000 |
US $9.92 |
||
|
6
|
6
29520-83J00-000
ケース,トランスファリヤ
4WD; 2005-10-01~ |
29520-83J00-000 |
— | ||
| replacement | |||||
|
6
|
6
29520-83J04-000
New Genuine Part
4WD; 2005-10-01~ |
29520-83J04-000 |
— | ||
|
7
|
7
29751-79A50-000 CASE,T/F GEAR SHIFT4WD; 2005-10-01~ |
29751-79A50-000 |
US $47.10 |
||
|
8
|
8
09108-08196-000 BOLT,STUD4WD; 2005-10-01~ |
09108-08196-000 |
US $34.20 |
||
|
9
|
9
09246-16010-000 PLUG4WD; 2005-10-01~ |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
9
|
9
09246-16021-000 Plug,t/m Oil Drain4WD; 2005-10-01~ |
09246-16021-000 |
from US $4.01 |
||
|
10
|
10
09283-16004-000 SEAL,OIL(15.8X24X5)Oil seal (15.8x24x5) 4WD; 2005-10-01~ |
09283-16004-000 |
from US $3.75 |
||
|
11
|
11
09352-70113-600
HOSE(7X11X600)
L:600>40; 4WD; 2005-10-01~ |
09352-70113-600 |
— | ||
| replacement | |||||
|
11
|
11
09352-70119-600 Hose(7X11X600)L:600>40; 4WD; 2005-10-01~ |
09352-70119-600 |
from US $4.64 |
||
|
12
|
12
09364-08004-000 UNION4WD; 2005-10-01~ |
09364-08004-000 |
US $14.40 |
||
|
13
|
13
01550-0635A-000 Bolt4WD; 2005-10-01~ |
01550-0635A-000 |
from US $0.96 |
||
|
14
|
14
01550-0840A-000 BOLT4WD; 2005-10-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
15
|
15
01550-0840A-000 BOLT4WD; 2005-10-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
16
|
16
01550-0870A-000 BoltBolt, oil pump 4WD; 2005-10-01~ |
01550-0870A-000 |
from US $5.88 |
||
|
17
|
17
04211-13149-000 PIN4WD; 2005-10-01~ |
04211-13149-000 |
from US $1.28 |
||
|
18
|
18
04221-06129-000 PIN4WD; 2005-10-01~ |
04221-06129-000 |
from US $0.96 |
||
|
19
|
19
08316-1008A-000 NUTNut, idle gear shaft 4WD; 2005-10-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
20
|
20
37750-78A02-000
Switch assy,4wd
4WD; 2005-10-01~ |
37750-78A02-000 |
— | ||
| replacements | |||||
|
20
|
20
37750-78A20-000
SWITCH ASSY,4WD
4WD; 2005-10-01~ |
37750-78A20-000 |
— | ||
|
20
|
20
37750-78A40-000 Switch Assy,4Wd4WD; 2005-10-01~ |
37750-78A40-000 |
US $39.20 |
||
