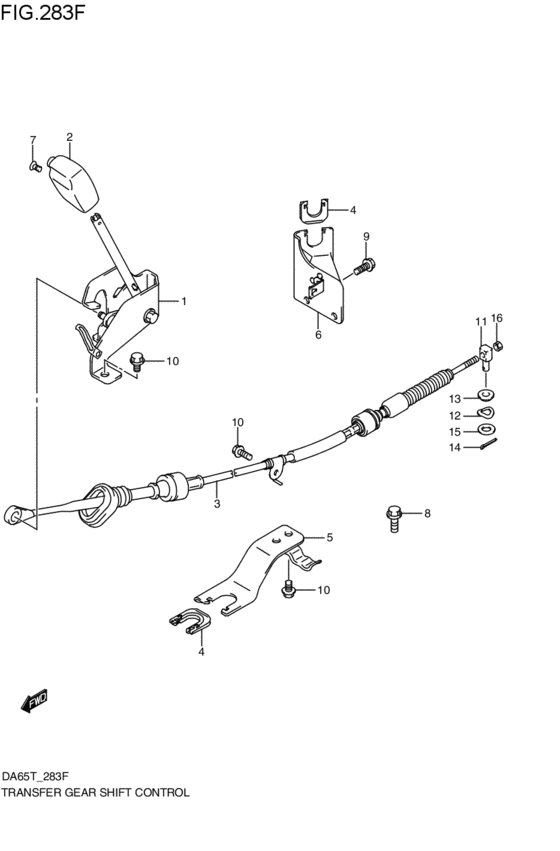

transfer gearlever control (4WD; 2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29300-83J00-000
レバーアッシ,トランスファギヤシフト
4WD; 2005-10-01~ |
29300-83J00-000 |
— | ||
|
2
|
2
29345-79A40-5PK KNOB,T/F GEAR SHF CONTブラック; 4WD; 2005-10-01~ |
29345-79A40-5PK |
US $16.04 |
||
|
3
|
3
29360-83J00-000
ケーブルアッシ,トランスファギヤシフトコントロール
4WD; 2005-10-01~ |
29360-83J00-000 |
— | ||
|
4
|
4
29365-73J00-000 CLIP,GEAR CONT CABLE NO.24WD; 2005-10-01~ |
29365-73J00-000 |
US $4.32 |
||
|
5
|
5
29380-83J00-000
ブラケット,トランスファコントロールケーブルフロント
4WD; 2005-10-01~ |
29380-83J00-000 |
— | ||
|
6
|
6
29380-83J10-000
ブラケット,トランスファギヤコントロールCAリヤ
4WD; 2005-10-01~ |
29380-83J10-000 |
— | ||
|
7
|
7
09126-05009-000 SCREW(5X8)4WD; 2005-10-01~ |
09126-05009-000 |
from US $1.28 |
||
|
8
|
8
01550-0816A-000 BOLTBolt, rear 4WD; 2005-10-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
9
|
9
01550-0820A-000 BOLTBolt, funnel bracket 4WD; 2005-10-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
10
|
10
02162-0612A-000 SCREWBolt, bracket 4WD; 2005-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
11
|
11
28291-85600-000 JOINT,T/F GR SHIFT4WD; 2005-10-01~ |
28291-85600-000 |
US $2.72 |
||
|
12
|
12
09164-08002-000 WASHER4WD; 2005-10-01~ |
09164-08002-000 |
US $1.28 |
||
|
13
|
13
09305-08011-000 BUSH4WD; 2005-10-01~ |
09305-08011-000 |
US $1.60 |
||
|
14
|
14
04111-2515A-000 PIN4WD; 2005-10-01~ |
04111-2515A-000 |
from US $0.77 |
||
|
15
|
15
09160-08097-000 WASHER(8.5X16X1.6)4WD; 2005-10-01~ |
09160-08097-000 |
US $14 |
||
|
16
|
16
09140-06024-000 NUT4WD; 2005-10-01~ |
09140-06024-000 |
US $1.12 |
