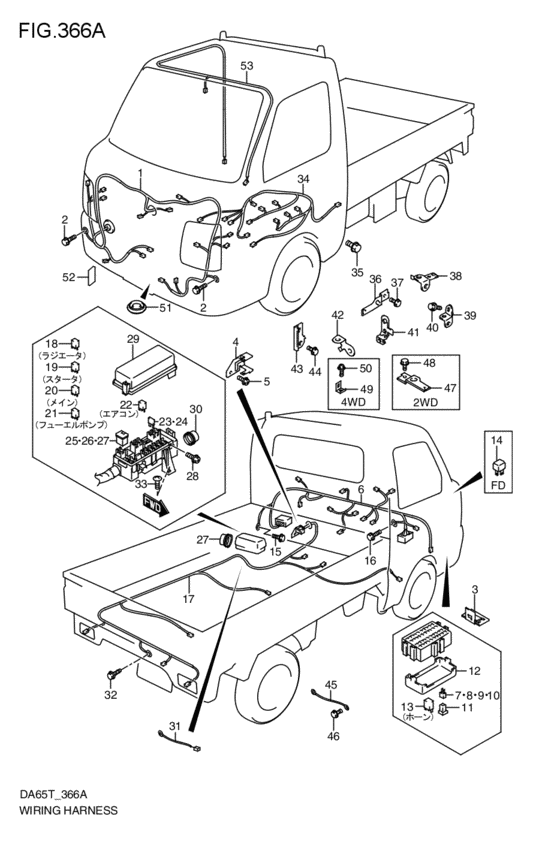

wire ring harness (2005-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- AB-N
- power steering
- PWST
- air-conditioner
- AIRCON-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-83J40-000
ハーネスアッシ,メイン
PWST:AIRCON-N; 2005-10-01~ |
36610-83J40-000 |
— | ||
| replacement | |||||
|
1
|
1
36610-83J41-000
New Genuine Part
PWST:AIRCON-N; 2005-10-01~ |
36610-83J41-000 |
— | ||
|
2
|
2
09115-06005-000 BOLT(6X16)2005-10-01~ |
09115-06005-000 |
US $1.28 |
||
|
3
|
3
33941-67H00-000 BRACKET,ALDL CONN2005-10-01~ |
33941-67H00-000 |
US $3.75 |
||
|
4
|
4
36614-83J00-000
ブラケット,CオンN
2005-10-01~ |
36614-83J00-000 |
— | ||
|
5
|
5
02162-0612A-000 SCREWBolt, bracket 2005-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
6
|
6
36620-83JE0-000
ハーネスアッシ,インストゥルメントパネル
FD:AB-N; 2005-10-01~ |
36620-83JE0-000 |
— | ||
|
7
|
7
09481-07501-000 FUSE(7.5A)2005-10-01~ |
09481-07501-000 |
US $11.80 |
||
|
8
|
8
09481-10501-000 FUSE(10A)2005-10-01~ |
09481-10501-000 |
from US $1.06 |
||
|
9
|
9
09481-15501-000 FUSE(15A)2005-10-01~ |
09481-15501-000 |
from US $3.25 |
||
|
10
|
10
09481-20501-000 FUSE(20A)2005-10-01~ |
09481-20501-000 |
from US $2.28 |
||
|
11
|
11
09481-40401-000 FUSE(40A)2005-10-01~ |
09481-40401-000 |
from US $3.83 |
||
|
12
|
12
36717-50K00-000
カバー,フューズボックス
2005-10-01~ |
36717-50K00-000 |
— | ||
| replacement | |||||
|
12
|
12
36717-50K01-000 COVER,FUSE BOX2005-10-01~ |
36717-50K01-000 |
US $8.35 |
||
|
14
|
14
32800-16A00-000 Rectifier AssyRectifier assy FD; 2005-10-01~ |
32800-16A00-000 |
from US $15.97 |
||
|
15
|
15
09115-06005-000 BOLT(6X16)2005-10-01~ |
09115-06005-000 |
US $1.28 |
||
|
16
|
16
02162-0612A-000 SCREWBolt, bracket 2005-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
17
|
17
36630-83JE0-000
ハーネスアッシ,フロア
FD:AB-N:AIRCON-N; 2005-10-01~ |
36630-83JE0-000 |
— | ||
| replacement | |||||
|
17
|
17
36630-83JE4-000
New Genuine Part
FD:AB-N:AIRCON-N; 2005-10-01~ |
36630-83JE4-000 |
— | ||
|
18
|
18
38860-76F01-000 RELAY ASSYRelay, starting motor ラジエータ リレー; 2005-10-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
19
|
19
38860-76F01-000 RELAY ASSYRelay, starting motor スターター リレー; 2005-10-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
20
|
20
38860-76F01-000 RELAY ASSYRelay, starting motor メイン リレー; 2005-10-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
21
|
21
38860-76F01-000 RELAY ASSYRelay, starting motor フューエルポンプ リレー; 2005-10-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
22
|
22
38860-76F01-000 RELAY ASSYRelay, starting motor エアコン リレー; 2005-10-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
23
|
23
09481-15501-000 FUSE(15A)2005-10-01~ |
09481-15501-000 |
from US $3.25 |
||
|
24
|
24
09481-30501-000 FUSE(30A)2005-10-01~ |
09481-30501-000 |
from US $1.08 |
||
|
25
|
25
09481-20401-000 FUSE(20A)2005-10-01~ |
09481-20401-000 |
US $56.30 |
||
|
26
|
26
09481-30401-000 FUSE(30A)2005-10-01~ |
09481-30401-000 |
from US $5.96 |
||
|
27
|
27
09481-60401-000 FUSE(60A)2005-10-01~ |
09481-60401-000 |
from US $3.92 |
||
|
28
|
28
09138-06040-000 BOLT(6X10)2005-10-01~ |
09138-06040-000 |
US $1.52 |
||
|
29
|
29
36738-50K00-000 COVER,FUSE BOX2005-10-01~ |
36738-50K00-000 |
US $9.16 |
||
|
30
|
30
36763-83J00-000
キャップ,フューズボックス
2005-10-01~ |
36763-83J00-000 |
— | ||
|
31
|
31
36740-83J01-000 FUSIBLE LINK ASSY2005-10-01~ |
36740-83J01-000 |
US $14.68 |
||
|
32
|
32
09115-06005-000 BOLT(6X16)2005-10-01~ |
09115-06005-000 |
US $1.28 |
||
|
33
|
33
02162-0616B-000 SCREWBolt, adjust 2005-10-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
34
|
34
36650-83J00-000
ハーネスアッシ,エンジン
2005-10-01~ |
36650-83J00-000 |
— | ||
|
35
|
35
01550-0812A-000 BOLT2005-10-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
36
|
36
36651-50K00-000 BRACKET,ENG HARN2005-10-01~ |
36651-50K00-000 |
US $2.43 |
||
|
37
|
37
01550-0612A-000 BOLT2005-10-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
38
|
38
36651-65H12-000 BRACKET,ENG HARN&CONN2005-10-01~ |
36651-65H12-000 |
US $3.50 |
||
|
39
|
39
36651-65H21-000 BRACKET,HARN2005-10-01~ |
36651-65H21-000 |
US $2.58 |
||
|
40
|
40
01550-0612A-000 BOLT2005-10-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
36654-65H01-000 BRACKET,ENG HARN2005-10-01~ |
36654-65H01-000 |
US $3.72 |
||
|
42
|
42
36652-73H00-000 BRACKET,ENG HARN2005-10-01~ |
36652-73H00-000 |
US $2.32 |
||
|
43
|
43
36651-78A20-000 BRACKET,HARN2005-10-01~ |
36651-78A20-000 |
US $2.50 |
||
|
44
|
44
01550-0612A-000 BOLT2005-10-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
45
|
45
33851-67H00-000 CABLE,BTRY GND #22005-10-01~ |
33851-67H00-000 |
US $20.79 |
||
|
46
|
46
01550-0812A-000 BOLT4WD; 2005-10-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
49
|
49
36651-78A30-000 BRACKET,HARN4WD; 2005-10-01~ |
36651-78A30-000 |
US $1.95 |
||
|
50
|
50
01550-0612A-000 BOLT4WD; 2005-10-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
51
|
51
09250-25007-000 CAP(OD:25.0)AB-N; 2005-10-01~ |
09250-25007-000 |
from US $0.97 |
||
|
53
|
53
36820-67H10-000 WIRE,ROOFFD; 2005-10-01~ |
36820-67H10-000 |
US $47.84 |
||
