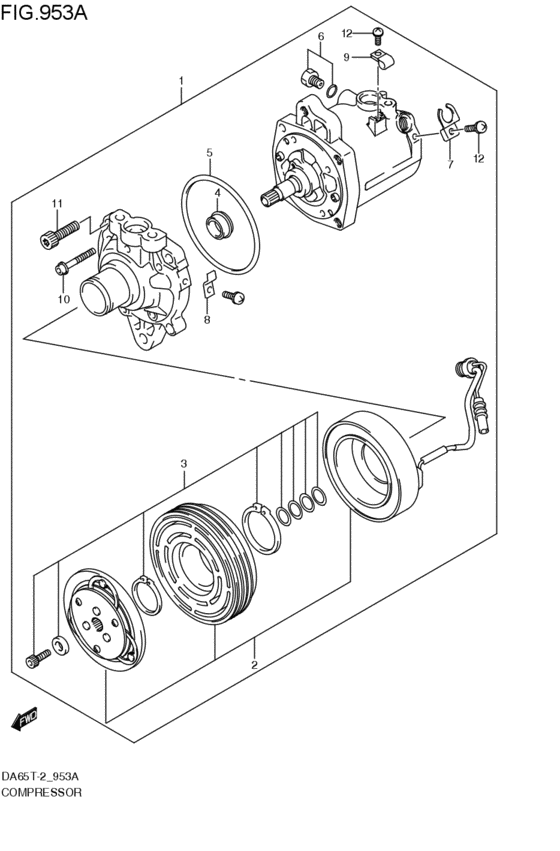

compressor (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-58J21-000
COMPRESSOR ASSY
2008-01-01~ |
95200-58J21-000 |
— | ||
| replacement | |||||
|
1
|
1
95200-58J22-000
COMPRESSOR ASSY
2008-01-01~ |
95200-58J22-000 |
— | ||
|
2
|
2
95210-58J21-000
クラッチアッシ,マグネット
2008-01-01~ |
95210-58J21-000 |
— | ||
| replacement | |||||
|
2
|
2
95210-58J23-000
CLUTCH,MAGNET
2008-01-01~ |
95210-58J23-000 |
— | ||
|
3
|
3
95298-72B20-000
Clip kit
2008-01-01~ |
95298-72B20-000 |
— | ||
| replacement | |||||
|
3
|
3
95298-72B21-000 CLIP KIT2008-01-01~ |
95298-72B21-000 |
US $20.24 |
||
|
4
|
4
95261-70B00-000
Seal, lip
2008-01-01~ |
95261-70B00-000 |
— | ||
|
5
|
5
95262-70B00-000
O ring
2008-01-01~ |
95262-70B00-000 |
— | ||
|
6
|
6
95271-72B01-000 VALVE,RELIEF2008-01-01~ |
95271-72B01-000 |
US $11.20 |
||
|
7
|
7
95291-58J00-000 CLAMP,WIRE2008-01-01~ |
95291-58J00-000 |
US $5.52 |
||
|
8
|
8
95291-70B00-000 FIXING PLATE2008-01-01~ |
95291-70B00-000 |
US $5.52 |
||
|
9
|
9
95293-60D00-000 CLAMP,CABLE2008-01-01~ |
95293-60D00-000 |
US $8.13 |
||
|
10
|
10
95296-58J00-000
Bolt
2008-01-01~ |
95296-58J00-000 |
— | ||
|
11
|
11
95297-72B20-000
Bolt
2008-01-01~ |
95297-72B20-000 |
— | ||
|
12
|
12
02112-3408A-000 SCREW2008-01-01~ |
02112-3408A-000 |
from US $0.80 |
||
