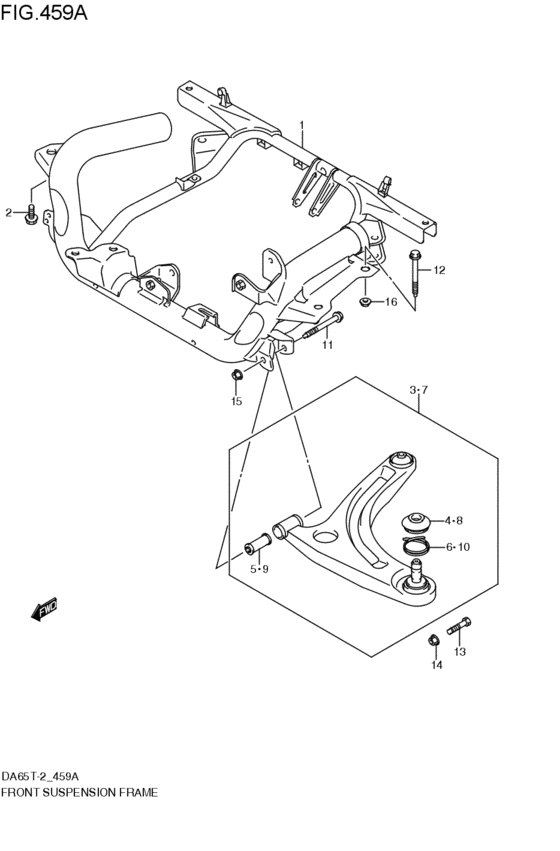

front suspension frame (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45910-83J00-000
フレーム,フロントサスペンション
2008-01-01~ |
45910-83J00-000 |
— | ||
|
2
|
2
01551-1225A-000 Bolt2008-01-01~ |
01551-1225A-000 |
US $1.28 |
||
|
3
|
3
45201-68H01-000
Arm assy,front suspension,r
2008-01-01~ |
45201-68H01-000 |
— | ||
| replacement | |||||
|
3
|
3
45201-68H02-000 ARM ASSY,FR SPNSN,R2008-01-01~ |
45201-68H02-000 |
US $262.40 |
||
|
4
|
4
45723-70B00-000
SEAL SET,DUST
2008-01-01~ |
45723-70B00-000 |
— | ||
| replacements | |||||
|
4
|
4
45723-70B01-000
Seal Set,dust
2008-01-01~ |
45723-70B01-000 |
— | ||
|
4
|
4
45700-70810-000 Seal Set,dust2008-01-01~ |
45700-70810-000 |
US $40.80 |
||
|
5
|
5
45261-77A10-000 BUSH,FR SUSPENSION CONTROL2008-01-01~ |
45261-77A10-000 |
US $31.20 |
||
|
6
|
6
09401-27402-000 CLIP2008-01-01~ |
09401-27402-000 |
US $1.28 |
||
|
7
|
7
45202-68H02-000
Arm assy,front suspension,l
2008-01-01~ |
45202-68H02-000 |
— | ||
| replacement | |||||
|
7
|
7
45202-68H03-000 ARM ASSY,FR SPNSN,L2008-01-01~ |
45202-68H03-000 |
US $262.40 |
||
|
8
|
8
45723-70B00-000
SEAL SET,DUST
2008-01-01~ |
45723-70B00-000 |
— | ||
| replacements | |||||
|
8
|
8
45723-70B01-000
Seal Set,dust
2008-01-01~ |
45723-70B01-000 |
— | ||
|
8
|
8
45700-70810-000 Seal Set,dust2008-01-01~ |
45700-70810-000 |
US $40.80 |
||
|
9
|
9
45261-77A10-000 BUSH,FR SUSPENSION CONTROL2008-01-01~ |
45261-77A10-000 |
US $31.20 |
||
|
10
|
10
09401-27402-000 CLIP2008-01-01~ |
09401-27402-000 |
US $1.28 |
||
|
11
|
11
45215-83J00-000 BOLT,SUSPENSION ARM2008-01-01~ |
45215-83J00-000 |
US $5.28 |
||
|
12
|
12
48528-68H01-000 BOLT,SPNSN ARM RR2008-01-01~ |
48528-68H01-000 |
US $3.81 |
||
|
13
|
13
09100-10305-000 BOLT(10X45)2008-01-01~ |
09100-10305-000 |
US $2.08 |
||
|
14
|
14
09159-10102-000 NUT2008-01-01~ |
09159-10102-000 |
US $1.28 |
||
|
15
|
15
09159-10118-000 NUT2008-01-01~ |
09159-10118-000 |
US $1.28 |
||
|
16
|
16
09159-12068-000 NUT2008-01-01~ |
09159-12068-000 |
from US $1.76 |
||
