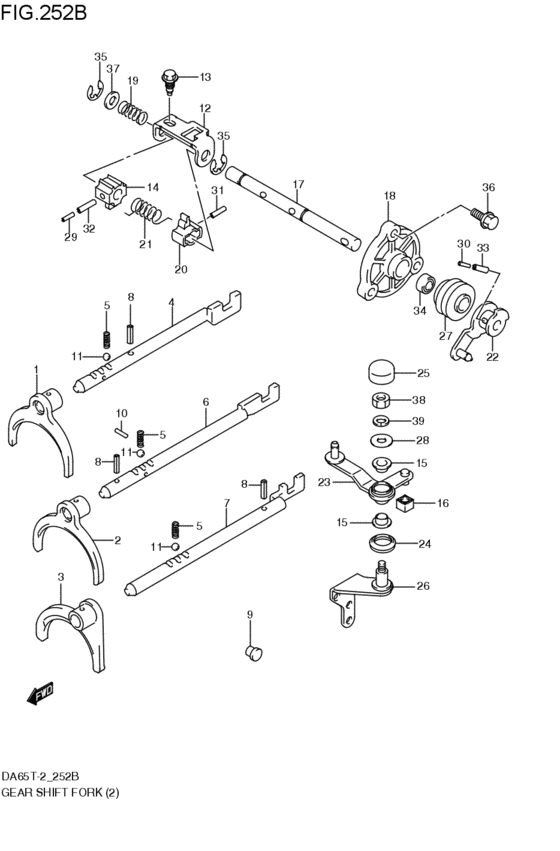

mt - gearlever fork (4WD; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25210-77D00-000
Fork,low speed gear shf
4WD; 2008-01-01~ |
25210-77D00-000 |
— | ||
| replacement | |||||
|
1
|
1
25210-78A20-000 FORK,LOW SPEED GEAR SHIFT4WD; 2008-01-01~ |
25210-78A20-000 |
US $36.48 |
||
|
2
|
2
25220-78A20-000
Fork,high speed gear shf
4WD; 2008-01-01~ |
25220-78A20-000 |
— | ||
| replacement | |||||
|
2
|
2
25220-78A21-000 FORK,HIGH SPEED GEAR SHF4WD; 2008-01-01~ |
25220-78A21-000 |
US $48.21 |
||
|
3
|
3
25250-82C00-000
Fork,5th & rev gear shf
4WD; 2008-01-01~ |
25250-82C00-000 |
— | ||
| replacement | |||||
|
3
|
3
25250-82C01-000 FORK,5TH&REV GEAR SHF4WD; 2008-01-01~ |
25250-82C01-000 |
US $79.20 |
||
|
4
|
4
25410-78A20-000 SHAFT,LOW SPEED4WD; 2008-01-01~ |
25410-78A20-000 |
US $55.20 |
||
|
5
|
5
25415-77D00-000 SPRING,GEAR SHF LOCATING4WD; 2008-01-01~ |
25415-77D00-000 |
US $1.92 |
||
|
6
|
6
25420-78A21-000 SHAFT,HIGH SPEED GEAR SHIFT4WD; 2008-01-01~ |
25420-78A21-000 |
US $75.20 |
||
|
7
|
7
25450-78A20-000 SHAFT,5TH&REV GEAR SHIFT4WD; 2008-01-01~ |
25450-78A20-000 |
US $52.99 |
||
|
8
|
8
09205-04003-000 PIN,SPRING(4.5X18)4WD; 2008-01-01~ |
09205-04003-000 |
US $1.60 |
||
|
9
|
9
09250-08001-000 PLUG(OD:14)Cap, remote control shaft 4WD; 2008-01-01~ |
09250-08001-000 |
US $1.28 |
||
|
10
|
10
09261-03002-000 PIN(3X9.8)4WD; 2008-01-01~ |
09261-03002-000 |
US $0.96 |
||
|
11
|
11
06111-10003-000 BALL4WD; 2008-01-01~ |
06111-10003-000 |
from US $0.80 |
||
|
12
|
12
25311-78A21-000 PLATE,GEAR SHF INTERLOCK4WD; 2008-01-01~ |
25311-78A21-000 |
US $17.59 |
||
|
13
|
13
25321-78A20-000 BOLT,GEAR SHIFT STOP4WD; 2008-01-01~ |
25321-78A20-000 |
US $3.68 |
||
|
14
|
14
25541-78A20-000 LEVER,GEAR SHF&SLT4WD; 2008-01-01~ |
25541-78A20-000 |
US $40.11 |
||
|
15
|
15
25558-74B01-000 BUSH,SEL LEVER BOSS4WD; 2008-01-01~ |
25558-74B01-000 |
US $1.60 |
||
|
16
|
16
25559-50F00-000 BUSH,SELECT LEVER SHAFT4WD; 2008-01-01~ |
25559-50F00-000 |
US $5.76 |
||
|
17
|
17
25571-78A20-000 SHAFT,GEAR SHIFT&SELECT4WD; 2008-01-01~ |
25571-78A20-000 |
US $23.92 |
||
|
18
|
18
25573-78A20-000 CASE,GEAR SHF GUIDE4WD; 2008-01-01~ |
25573-78A20-000 |
US $38.64 |
||
|
19
|
19
25576-78A20-000 SPRING,LOW SELECT4WD; 2008-01-01~ |
25576-78A20-000 |
US $3.02 |
||
|
20
|
20
25581-78A20-000 CAM,5TH&REV GEAR SHIFT4WD; 2008-01-01~ |
25581-78A20-000 |
US $16.45 |
||
|
21
|
21
25583-78A20-000 SPRING,CAM GUIDE RETURN4WD; 2008-01-01~ |
25583-78A20-000 |
US $3.02 |
||
|
22
|
22
25610-83J40-000
レバー,シフトケーブル
4WD; 2008-01-01~ |
25610-83J40-000 |
— | ||
|
23
|
23
25620-83J40-000
レバー,セレクトケーブル
4WD; 2008-01-01~ |
25620-83J40-000 |
— | ||
|
24
|
24
25624-74B00-000 BOOT,SEL LEVER INSIDE4WD; 2008-01-01~ |
25624-74B00-000 |
US $5.28 |
||
|
25
|
25
25625-74B00-000 BOOT,SEL LEVER OUTSIDE4WD; 2008-01-01~ |
25625-74B00-000 |
US $5.28 |
||
|
26
|
26
25630-78A21-000 BRACKET,SELECT LEVER4WD; 2008-01-01~ |
25630-78A21-000 |
US $25.21 |
||
|
27
|
27
25651-74B00-000 BOOT,SHIFT&SELECT SFT OIL4WD; 2008-01-01~ |
25651-74B00-000 |
US $6.56 |
||
|
28
|
28
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) 4WD; 2008-01-01~ |
09160-08151-000 |
from US $0.91 |
||
|
29
|
29
09205-03016-000 PIN,SPRING(3.5X28)4WD; 2008-01-01~ |
09205-03016-000 |
US $11 |
||
|
30
|
30
09205-03037-000 PIN,SPRING(3X25)4WD; 2008-01-01~ |
09205-03037-000 |
US $1.12 |
||
|
31
|
31
09205-05015-000 PIN,SPRING(5X20)4WD; 2008-01-01~ |
09205-05015-000 |
US $12.90 |
||
|
32
|
32
09205-06004-000 PIN,SPRING(6X28)4WD; 2008-01-01~ |
09205-06004-000 |
US $11.40 |
||
|
33
|
33
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) 4WD; 2008-01-01~ |
09205-06007-000 |
from US $1.60 |
||
|
34
|
34
09283-14006-000 SEAL,OIL(14X22X6)4WD; 2008-01-01~ |
09283-14006-000 |
from US $6.38 |
||
|
35
|
35
08332-1112A-000 E RING4WD; 2008-01-01~ |
08332-1112A-000 |
from US $0.96 |
||
|
36
|
36
01550-0816A-000 BOLTBolt, rear 4WD; 2008-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
37
|
37
08212-14301-000 WASHER4WD; 2008-01-01~ |
08212-14301-000 |
from US $1.70 |
||
|
38
|
38
08310-0008A-000 NUTNut, bead stopper 4WD; 2008-01-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
39
|
39
08321-0108A-000 WASHER,LOCK4WD; 2008-01-01~ |
08321-0108A-000 |
from US $0.80 |
||
