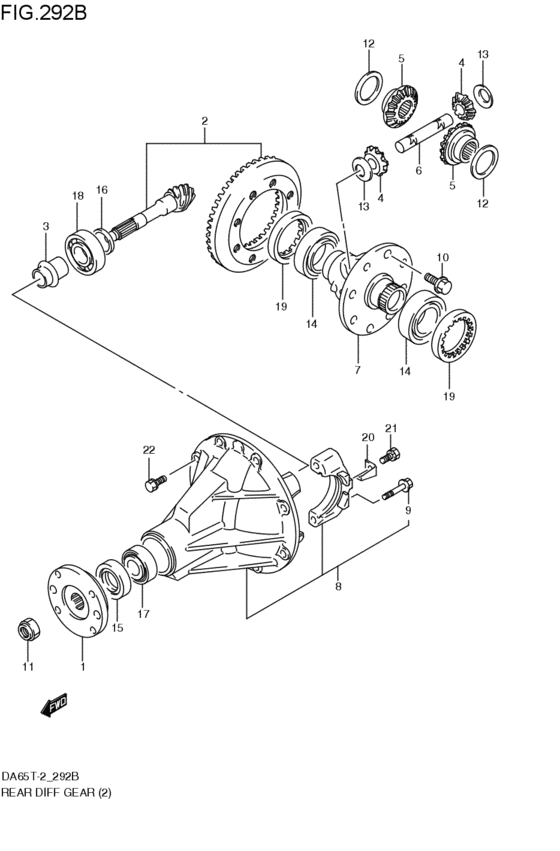

リヤデファレンシャルギヤ (FD; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-70D10-000 FLANGE,UNIVERSAL JOINTFD; 2008-01-01~ |
27110-70D10-000 |
US $46.40 |
||
|
2
|
2
27300-71830-000
Bevel pinion & gear set
FD; 2008-01-01~ |
27300-71830-000 |
— | ||
| replacements | |||||
|
2
|
2
27300-71832-000 BEVEL PINION & GEAR SETFD; 2008-01-01~ |
27300-71832-000 |
US $1,041.60 |
||
|
2
|
2
09159-16021-000 NUTFD; 2008-01-01~ |
09159-16021-000 |
from US $4.96 |
||
|
3
|
3
27315-67H10-000 SPACER,DRIVE BEVEL PINIONFD; 2008-01-01~ |
27315-67H10-000 |
US $20 |
||
|
4
|
4
27331-76A20-000
PINION,DIFFERENTIAL
FD; 2008-01-01~ |
27331-76A20-000 |
— | ||
| replacement | |||||
|
4
|
4
27331-76A21-000 Pinion,differentialFD; 2008-01-01~ |
27331-76A21-000 |
from US $43.75 |
||
|
5
|
5
27341-60C21-000
ギヤ,ディファレンシャル
FD; 2008-01-01~ |
27341-60C21-000 |
— | ||
| replacement | |||||
|
5
|
5
27340-60820-000 GEAR SET,DIFFFD; 2008-01-01~ |
27340-60820-000 |
US $128.06 |
||
|
6
|
6
27351-78A02-000 SHAFT,DIFF PINIONFD; 2008-01-01~ |
27351-78A02-000 |
US $24 |
||
|
7
|
7
27411-79D31-000
ケース,ディファレンシャル
FD; 2008-01-01~ |
27411-79D31-000 |
— | ||
| replacement | |||||
|
7
|
7
27411-79D32-000 CASE,DIFFFD; 2008-01-01~ |
27411-79D32-000 |
US $180.69 |
||
|
8
|
8
27450-72D01-000 CARRIER ASSY,DIFFFD; 2008-01-01~ |
27450-72D01-000 |
US $264.96 |
||
|
9
|
9
09111-08082-000 BOLT(8X49.5)FD; 2008-01-01~ |
09111-08082-000 |
US $18.40 |
||
|
10
|
10
09103-10309-000 BOLT(10X16)FD; 2008-01-01~ |
09103-10309-000 |
US $1.67 |
||
|
11
|
11
09159-16018-000 NUTFD; 2008-01-01~ |
09159-16018-000 |
from US $2.24 |
||
|
12
|
12
09160-30008-000 WASHER(30.3X41X1.2)FD; 2008-01-01~ |
09160-30008-000 |
US $21.70 |
||
|
12
|
12
09160-30022-000 WASHER(30X41X1.1)Thrust washer (t:2.5) FD; 2008-01-01~ |
09160-30022-000 |
US $26.50 |
||
|
12
|
12
09160-30025-000 WASHER(30X42X0.9)FD; 2008-01-01~ |
09160-30025-000 |
US $26.50 |
||
|
12
|
12
09181-30167-000 SHIM(30X40X1)Thrust washer FD; 2008-01-01~ |
09181-30167-000 |
from US $1.82 |
||
|
13
|
13
09164-15006-000 WASHERFD; 2008-01-01~ |
09164-15006-000 |
from US $1.58 |
||
|
14
|
14
09265-40002-000 BEARING(40X68X19)FD; 2008-01-01~ |
09265-40002-000 |
US $40 |
||
|
15
|
15
09283-28027-000 SEAL,OIL(28X47X9)FD; 2008-01-01~ |
09283-28027-000 |
US $7.45 |
||
|
16
|
16
09181-25031-000 SHIM(25.5X31.5X0.3)FD; 2008-01-01~ |
09181-25031-000 |
US $16.20 |
||
|
16
|
16
09181-25139-000 SHIM(25X32X1)Washer, shift cam spring FD; 2008-01-01~ |
09181-25139-000 |
from US $4.10 |
||
|
16
|
16
09181-25140-000 SHIM(25X32X1.03)FD; 2008-01-01~ |
09181-25140-000 |
US $16.20 |
||
|
16
|
16
09181-25142-000 SHIM(25X32X1.06)FD; 2008-01-01~ |
09181-25142-000 |
US $16.20 |
||
|
16
|
16
09181-25143-000 SHIM(25X32X1.09)FD; 2008-01-01~ |
09181-25143-000 |
from US $4.76 |
||
|
16
|
16
09181-25145-000 SHIM(25X32X1.12)FD; 2008-01-01~ |
09181-25145-000 |
US $1.60 |
||
|
16
|
16
09181-25146-000 SHIM(25X32X1.15)FD; 2008-01-01~ |
09181-25146-000 |
US $16.20 |
||
|
16
|
16
09181-25147-000 SHIM(25X32X1.18)FD; 2008-01-01~ |
09181-25147-000 |
US $16.20 |
||
|
16
|
16
09181-25149-000 SHIM(25X32X1.21)FD; 2008-01-01~ |
09181-25149-000 |
from US $4.76 |
||
|
16
|
16
09181-25150-000 SHIM(25X32X1.24)FD; 2008-01-01~ |
09181-25150-000 |
US $16.20 |
||
|
16
|
16
09181-25152-000 SHIM(25X32X1.27)FD; 2008-01-01~ |
09181-25152-000 |
US $16.20 |
||
|
16
|
16
09181-25153-000 SHIM(25X32X1.3)FD; 2008-01-01~ |
09181-25153-000 |
US $16.20 |
||
|
17
|
17
09265-20001-000 BEARING(20X47X15.25)FD; 2008-01-01~ |
09265-20001-000 |
US $16.80 |
||
|
18
|
18
09265-25037-000 BEARING(25X62X25.25)FD; 2008-01-01~ |
09265-25037-000 |
US $70.40 |
||
|
19
|
19
27461-85600-000 ADJUSTER,DIFF SIDE BEARINGFD; 2008-01-01~ |
27461-85600-000 |
US $14.90 |
||
|
20
|
20
27462-85600-000 PLATE,DIFF SIDE BRG LOCKFD; 2008-01-01~ |
27462-85600-000 |
US $1.62 |
||
|
21
|
21
01550-0812A-000 BOLTFD; 2008-01-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
22
|
22
09112-08011-000 BOLT(8X25)FD; 2008-01-01~ |
09112-08011-000 |
US $19.50 |
||
