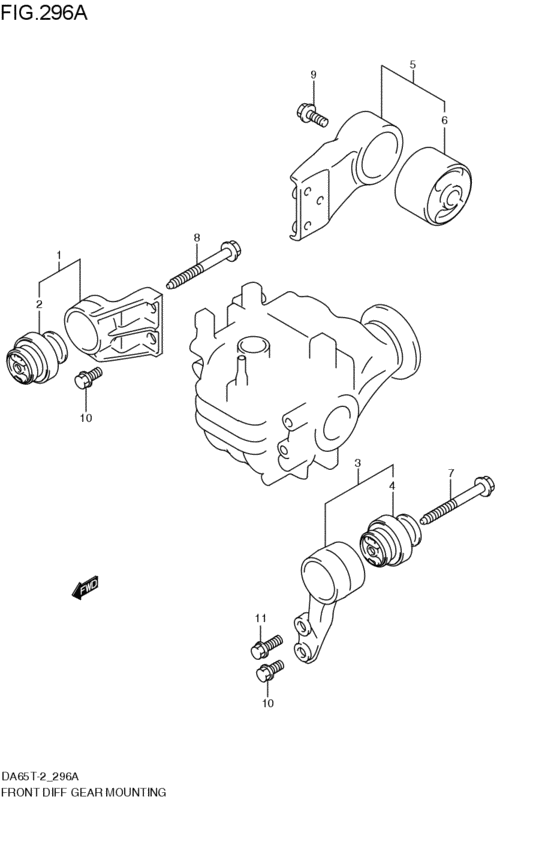

フロントデファレンシャルマウンチング (4WD; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27610-83J00-000 BRACKET,DIFF MOUNT FR,R4WD; 2008-01-01~ |
27610-83J00-000 |
US $69.55 |
||
|
2
|
2
27551-68H00-000 MOUNTING,DIFF4WD; 2008-01-01~ |
27551-68H00-000 |
US $14.90 |
||
|
3
|
3
27620-83J00-000
ブラケット,ディファレンシャルマウントフロント,レフト
4WD; 2008-01-01~ |
27620-83J00-000 |
— | ||
|
4
|
4
27552-68H00-000 MOUNTING,DIFF4WD; 2008-01-01~ |
27552-68H00-000 |
US $14.90 |
||
|
5
|
5
27630-83J00-000 BRACKET,DIFF MOUNT RR4WD; 2008-01-01~ |
27630-83J00-000 |
US $91.63 |
||
|
6
|
6
27553-68H00-000 MOUNTING,DIFF4WD; 2008-01-01~ |
27553-68H00-000 |
US $24.66 |
||
|
7
|
7
27692-67H00-000 BOLT,DIFF MOUNTING4WD; 2008-01-01~ |
27692-67H00-000 |
US $2.61 |
||
|
8
|
8
27692-68H00-000 BOLT,MOUNTING4WD; 2008-01-01~ |
27692-68H00-000 |
US $2.02 |
||
|
9
|
9
09103-10275-000 BOLT(10X25)Bolt, front 4WD; 2008-01-01~ |
09103-10275-000 |
from US $6.36 |
||
|
10
|
10
09103-10394-000 BOLT(10X20)4WD; 2008-01-01~ |
09103-10394-000 |
from US $3.60 |
||
|
11
|
11
09103-10395-000 BOLT(10X30)4WD; 2008-01-01~ |
09103-10395-000 |
from US $5.17 |
