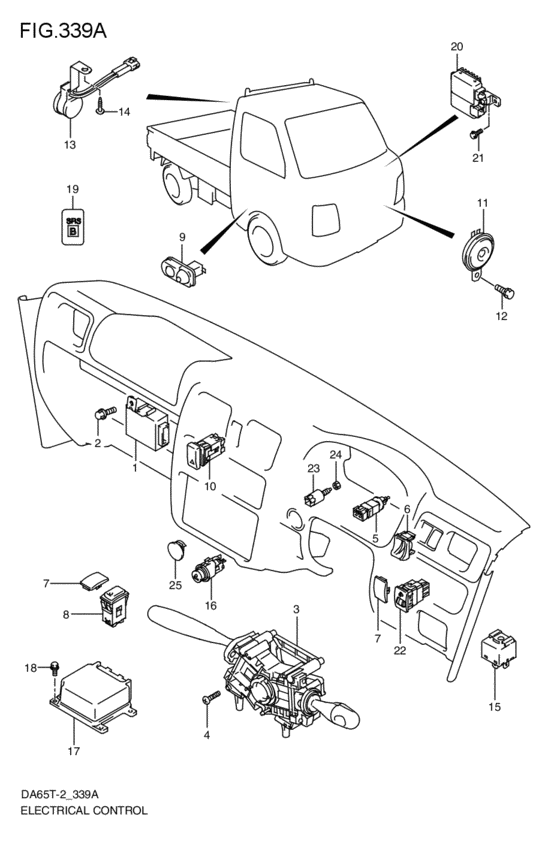

electrical control (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38885-67H11-000
CONTROLLER ASSY,4WD SHIFT
4WD:FD; 2008-01-01~ |
38885-67H11-000 |
— | ||
| replacement | |||||
|
1
|
1
38885-67H13-000
New Genuine Part
4WD:FD; 2008-01-01~ |
38885-67H13-000 |
— | ||
|
2
|
2
02162-0612A-000 SCREWBolt, bracket 4WD; 2008-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
3
|
3
37400-67H10-000
スイッチアッシ,コンビネーション
N-AB; 2008-01-01~ |
37400-67H10-000 |
— | ||
| replacement | |||||
|
3
|
3
37400-67H12-000 New Genuine PartN-AB; 2008-01-01~ |
37400-67H12-000 |
US $220.80 |
||
|
4
|
4
03211-0516A-000 SCREW2008-01-01~ |
03211-0516A-000 |
US $0.80 |
||
|
5
|
5
37740-75H21-000 SWITCH ASSY,STOP LAMP2008-01-01~ |
37740-75H21-000 |
from US $15.91 |
||
|
6
|
6
37285-64G00-000 CASE,COIN2008-01-01~ |
37285-64G00-000 |
US $9.60 |
||
|
7
|
7
37285-75F10-000 CAP,OPTION SW HOLE2008-01-01~ |
37285-75F10-000 |
US $2.80 |
||
|
8
|
8
37785-81J00-000 SWITCH ASSY,DIFF LOCKFD; 2008-01-01~ |
37785-81J00-000 |
US $45.26 |
||
|
9
|
9
37670-68H10-000
Switch assy,door
2008-01-01~ |
37670-68H10-000 |
— | ||
| replacement | |||||
|
9
|
9
37670-57L00-000 SWITCH ASSY,DOOR2008-01-01~ |
37670-57L00-000 |
from US $9.79 |
||
|
10
|
10
37430-67H00-000 SWITCH ASSY,HAZARD2008-01-01~ |
37430-67H00-000 |
US $40.85 |
||
|
11
|
11
38500-67H00-000
ホーンアッシ,ローピツチ
2008-01-01~ |
38500-67H00-000 |
— | ||
| replacement | |||||
|
11
|
11
38500-67H01-000 HORN ASSY,LOW PITCH2008-01-01~ |
38500-67H01-000 |
US $49.68 |
||
|
12
|
12
09115-08001-000 BOLT(8X18)2008-01-01~ |
09115-08001-000 |
US $15.10 |
||
|
13
|
13
38750-68H00-000
ホーンアッシ,バックアップ
FD; 2008-01-01~ |
38750-68H00-000 |
— | ||
| replacement | |||||
|
13
|
13
38750-68H02-000
New Genuine Part
FD; 2008-01-01~ |
38750-68H02-000 |
— | ||
|
14
|
14
03141-0612A-000 SCREWFD; 2008-01-01~ |
03141-0612A-000 |
US $0.76 |
||
|
15
|
15
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way 2008-01-01~ |
38610-76G00-000 |
US $56.80 |
||
|
16
|
16
39400-67H00-000 LIGHTER ASSY,CIGARETTE2009-08-01~ |
39400-67H00-000 |
US $16.80 |
||
|
20
|
20
38720-68H00-000 CONTROLLER ASSY,EPSPS; 2008-01-01~ |
38720-68H00-000 |
US $951.52 |
||
|
21
|
21
09115-06005-000 BOLT(6X16)PS; 2008-01-01~ |
09115-06005-000 |
US $1.28 |
||
|
22
|
22
35180-81J00-000 SWITCH ASSY,HEADLAMP LEVELING2008-01-01~ |
35180-81J00-000 |
US $51.15 |
||
|
23
|
23
37970-76F01-000
Switch assy,clutch start
2008-01-01~ |
37970-76F01-000 |
— | ||
| replacement | |||||
|
23
|
23
37970-76F02-000 SWITCH ASSY,CLUTCH START2008-01-01~ |
37970-76F02-000 |
US $21.34 |
||
|
24
|
24
09140-10043-000 NUTNut, tie rod rh thread 2008-01-01~ |
09140-10043-000 |
from US $0.91 |
||
|
25
|
25
37275-65H00-000 CAP2009-09-01~ |
37275-65H00-000 |
from US $2.43 |
||
