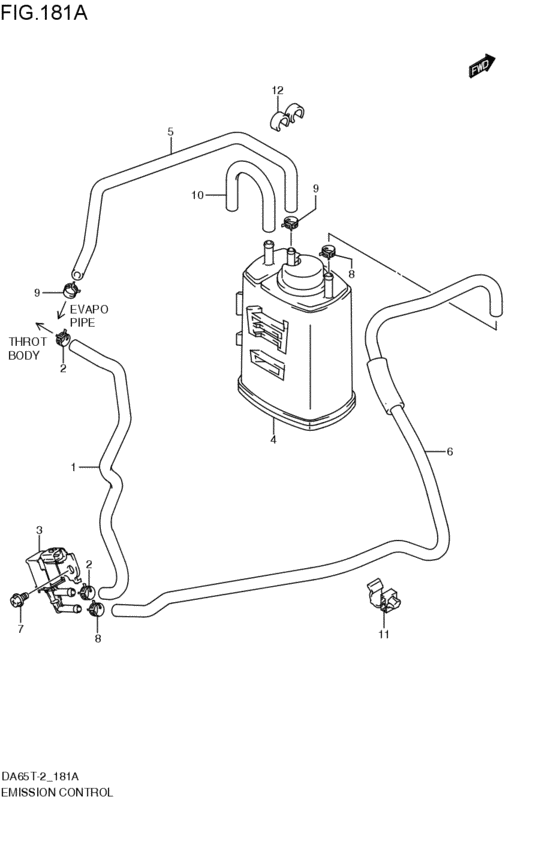

emission control (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18566-67H20-000 HOSE,PURGE2008-01-01~ |
18566-67H20-000 |
US $13.62 |
||
|
2
|
2
09401-11419-000 CLIP2008-01-01~ |
09401-11419-000 |
from US $1.42 |
||
|
3
|
3
18114-68H00-000 VALVE,CANISTER PURGE2008-01-01~ |
18114-68H00-000 |
US $88.16 |
||
|
4
|
4
18560-83J00-000 CANISTER2008-01-01~ |
18560-83J00-000 |
from US $75.25 |
||
|
5
|
5
18562-83J00-000
ホース,キャニスタインレット
2008-01-01~ |
18562-83J00-000 |
— | ||
|
6
|
6
18563-83J01-000
ホース,パージ
2008-01-01~ |
18563-83J01-000 |
— | ||
|
7
|
7
01550-0612A-000 BOLT2008-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
09401-11419-000 CLIP2008-01-01~ |
09401-11419-000 |
from US $1.42 |
||
|
9
|
9
09401-11419-000 CLIP2008-01-01~ |
09401-11419-000 |
from US $1.42 |
||
|
10
|
10
18567-80A00-000 HOSE,CANISTER AIR2008-01-01~ |
18567-80A00-000 |
US $5.67 |
||
|
11
|
11
09403-11314-000 CLAMP2008-01-01~ |
09403-11314-000 |
from US $5.20 |
||
|
12
|
12
09408-00043-000 CLAMPHolder, fuse case 2008-01-01~ |
09408-00043-000 |
US $9.60 |
