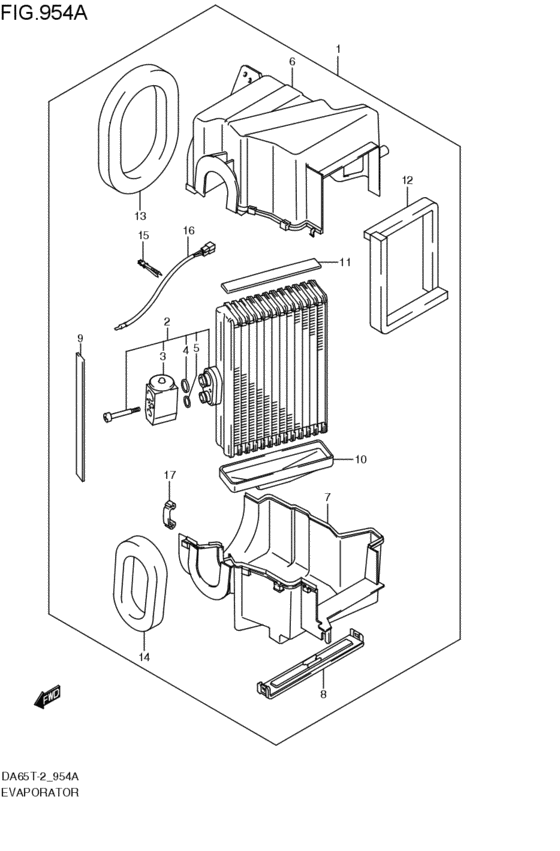

evaporator (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95400-67H00-000
クーリングユニット
2008-01-01~ |
95400-67H00-000 |
— | ||
| replacement | |||||
|
1
|
1
95400-67H03-000
COOLING UNIT
2008-01-01~ |
95400-67H03-000 |
— | ||
|
2
|
2
95410-67H00-000
EVAPORATOR ASSY
2008-01-01~ |
95410-67H00-000 |
— | ||
| replacement | |||||
|
2
|
2
95410-67H40-000
New Genuine Part
2008-01-01~ |
95410-67H40-000 |
— | ||
|
3
|
3
95431-81A00-000 VALVE,EXPANSION CALSONIC GOLDゴ-ルド,カルソニツク; 2008-01-01~ |
95431-81A00-000 |
from US $100.46 |
||
|
4
|
4
95895-50G00-000 O-RING,D:2.4 ID:10.82008-01-01~ |
95895-50G00-000 |
US $1.28 |
||
|
5
|
5
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) 2008-01-01~ |
95896-50G00-000 |
US $1.28 |
||
|
6
|
6
95421-67H00-000
ケース,エバポ,アッパ
2008-01-01~ |
95421-67H00-000 |
— | ||
| replacement | |||||
|
6
|
6
95421-67H01-000
CASE,EVAP UPR
2008-01-01~ |
95421-67H01-000 |
— | ||
|
7
|
7
95422-67H00-000
ケース,エバポ,ロア
2008-01-01~ |
95422-67H00-000 |
— | ||
| replacement | |||||
|
7
|
7
95422-67H01-000
CASE,EVAP,LOWER
2008-01-01~ |
95422-67H01-000 |
— | ||
|
8
|
8
95423-81A01-000 COVER,FILTER2008-01-01~ |
95423-81A01-000 |
from US $4.04 |
||
|
9
|
9
95426-67H00-000 PACKING,CORE SIDE2008-01-01~ |
95426-67H00-000 |
US $2.17 |
||
|
10
|
10
95425-67H00-000 PACKING,LOWER CASE2008-01-01~ |
95425-67H00-000 |
US $4.86 |
||
|
11
|
11
95427-67H00-000 PACKING,CORE UPPER2008-01-01~ |
95427-67H00-000 |
US $2.28 |
||
|
12
|
12
95461-78A00-000 PACKING,UNIT2008-01-01~ |
95461-78A00-000 |
US $4.27 |
||
|
13
|
13
95462-67H00-000 PACKING,UNIT HTR2008-01-01~ |
95462-67H00-000 |
US $2.32 |
||
|
14
|
14
95463-78A10-000 PACKING,DASH2008-01-01~ |
95463-78A10-000 |
US $7.65 |
||
|
15
|
15
95452-70B21-000
CLAMP,THERMISTER
DENSO; 2008-01-01~ |
95452-70B21-000 |
— | ||
|
16
|
16
95541-81A02-000 THERMISTOR,EVAP2008-01-01~ |
95541-81A02-000 |
from US $10.03 |
||
|
17
|
17
74316-85500-000 CLAMPClamp, case 2008-01-01~ |
74316-85500-000 |
US $1.82 |
||
