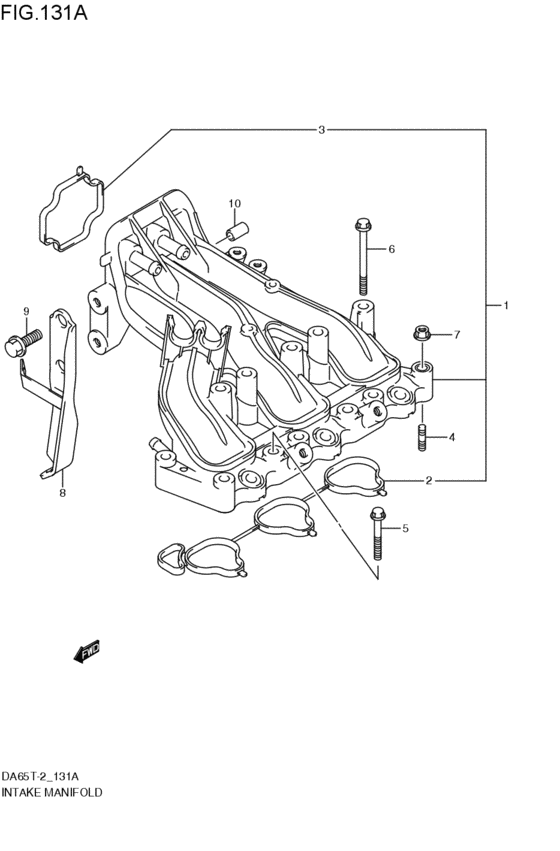

intake manifold (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-67H01-000 MANIFOLD,INTK2008-01-01~ |
13110-67H01-000 |
US $530.48 |
||
|
2
|
2
13119-67H00-000 GASKET,INTK MANF2008-01-01~ |
13119-67H00-000 |
US $42.40 |
||
|
3
|
3
13421-83G00-000 GASKET,THROTTLE BODY2008-01-01~ |
13421-83G00-000 |
from US $8.60 |
||
|
4
|
4
09108-06138-000 BOLT,STUD2008-01-01~ |
09108-06138-000 |
US $17.70 |
||
|
5
|
5
01550-0635A-000 Bolt2008-01-01~ |
01550-0635A-000 |
from US $0.96 |
||
|
6
|
6
01550-0670A-000 Bolt2008-01-01~ |
01550-0670A-000 |
US $17.30 |
||
|
7
|
7
08316-1006A-000 NUT2008-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
8
|
8
13161-83J00-000
スチフナ,インテークマニホールド
2008-01-01~ |
13161-83J00-000 |
— | ||
|
9
|
9
01550-0816A-000 BOLTBolt, rear 2008-01-01~ |
01550-0816A-000 |
from US $0.91 |
